The latest generation of chargers from MEAN WELLNPB-120/240/360, uses a new high-efficiency circuit design that enables small dimensions, high efficiency and flexibility. Compared to the previous PB-120/230/300/360 series, the main differences are the smaller size, the higher efficiency of up to 93%, the ability to adjust the charging current and voltage, the double ITE and household safety approval and the competitive price. The NPB-120/240/360 are suitable for electric bicycles, scooters, power tools, mobile robots, unmanned vehicles, charging various mobile DC devices and much more.
Properties
- 90~264Vac universal AC input, integrated PFC
- Charger for lead-acid and Li-ion batteries
- Fanless design
- Wide adjustable output range via VR: adjustable charging voltage (10.5~15.2V, 21~30.4V, 42~60.8V)
- Adjustable charging current (50~100% nominal current)
- 2 or 3-stage charging characteristic selectable via DIP S.W
- Power consumption without load < 0.15 W (AC S.W. off)
- Operating temperature: -30°C ~+70°C
- Protective functions: Short circuit / overvoltage / overtemperature / reverse battery polarity protection
- UL/EN62368-1 and EN60335-1/2-29
- LED status display on the front
- 3-year guarantee
Products
-

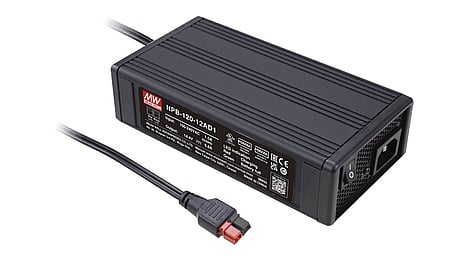

NPB-120-12AD1
103W Charger 13.8V/6.8A, Anderson ConnectorCHF 44.50Available to order -
NPB-120-12TB
103W charger 13.8V/6.8A, terminal blockCHF 44.50Available to order -
NPB-120-12XLR
103W Charger 13.8V/6.8A, XLRCHF 44.50Available to order -
NPB-120-24AD1
120W charger 27.6V/4A, Anderson ConnectorCHF 44.50Available to order -
NPB-120-24TB
120W charger 27.6V/4A, terminal blockCHF 44.50Available to order -
NPB-120-24XLR
120W charger 27.6V/4A, XLR connectorCHF 44.50Available to order -
NPB-120-48AD1
120W Charger 55.2V/2A, Anderson ConnectorCHF 44.50Available to order -
NPB-120-48TB
120W charger 55.2V/2A, terminal blockCHF 44.50Available to order -
NPB-120-48XLR
120W charger 55.2V/2A, XLR connectorCHF 44.50Available to order -
NPB-240-12AD1
205W Charger 13.8V/13.5A, Anderson ConnectorCHF 55.40Available to order -
NPB-240-12TB
205W charger 13.8V/13.5A, terminal blockCHF 55.40Available to order -
NPB-240-12XLR
205W Charger 13.8V/13.5A, XLR ConnectorCHF 55.40Available to order -

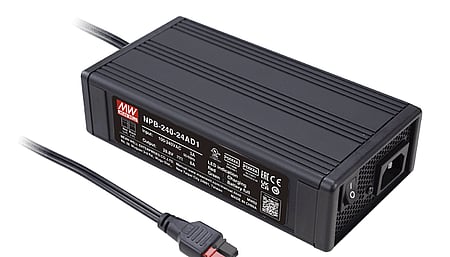

NPB-240-24AD1
240W charger 27.6V/8A, Anderson ConnectorCHF 55.40Available to order -
NPB-240-24TB
240W charger 27.6V/8A, terminal blockCHF 55.402 Available immediately -
NPB-240-24XLR
240W charger 27.6V/8A, XLR connectorCHF 55.40Available to order -
NPB-240-48AD1
240W Charger 55.2V/4A, Anderson ConnectorCHF 55.40Available to order -
NPB-240-48TB
240W charger 55.2V/4A, terminal blockCHF 55.40Available to order -
NPB-240-48XLR
240W Charger 55.2V/4A, XLR ConnectorCHF 55.40Available to order -
NPB-360-12AD1
304W Charger 13.8V/20A, Anderson ConnectorCHF 69.40Available to order -
NPB-360-12TB
304W charger 13.8V/20A, terminal blockCHF 69.40Available to order -
NPB-360-12XLR
304W Charger 13.8V/20A, XLR ConnectorCHF 69.40Available to order -
NPB-360-24AD1
360W charger 27.8V/12A, Anderson ConnectorCHF 69.40Available to order -
NPB-360-24TB
360W charger 27.8V/12A, terminal blockCHF 69.40Available to order -
NPB-360-24XLR
360W charger 27.8V/12A, XLR connectorCHF 69.40Available to order -
NPB-360-48AD1
360W Charger 55.2V/6A, Anderson ConnectorCHF 69.40Available to order -
NPB-360-48TB
360W charger 55.2V/6A, terminal blockCHF 69.40Available to order -
NPB-360-48XLR
360W Charger 55.2V/6A, XLR ConnectorCHF 69.40Available to order
