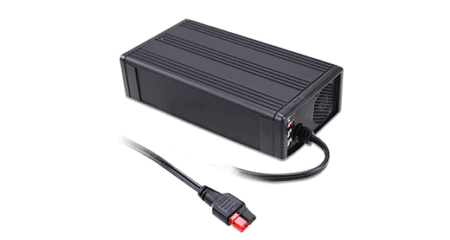

360W Charger 55.2V/6A, Anderson Connector
CHF 69.40 excl. VAT, plus shipping costs
Item no:
NPB-360-48AD1
In stock: Available to order
Packaging ex works:
10 piece
Estimated delivery time:
1-2 weeks
5+ CHF 69.40 CHF 66.10 (4%save)
10+ CHF 66.10 CHF 63.20 (8%save)
20+ CHF 63.20 CHF 61.40 (11%save)
Description
NPB-360-48 is a battery charger for lead-acid or lithium-ion batteries. The charging curve for 2-stage (Li-ion) or 3-stage (lead-acid) characteristics can be selected using a DIP switch. The charging current and charging voltage can be adjusted to the respective battery using potentiometers on the device. Variant with Anderson plug.
Technical data
- Charger for lead batteries and Li-ion batteries
- Input voltage 90 to 264Vac
- Adjustable charging current and charging voltage.
- 2- or 3-stage charging characteristic selectable via DIP switch.
- Reverse polarity protected
- Cooled by temperature-controlled fan
- Operating temperature range from -30°C to +70°C
- Dimensions 180 x 96 x 49mm (L x W x H)
- 3-year guarantee
- Manufacturer Mean Well
Additional information
| Chargeurs | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
| LEDs | ||||||||
|
||||||||
Data sheets
| Data sheet NPB-360 | PDF(499.66 KB) |
|---|---|
| User Manual NPB | PDF(983.37 KB) |
| Test Report NPB-360-48 | PDF(245.82 KB) |
Downloads
| 3D data | Zip file (3.63 MB) |
|---|
Accessories
-
POWER CABLE T12-C13
Apparatus mains cable Switzerland, 3-pin, 1.8 m, blackCHF 3.80133 Available immediately -
MHS012D
Mounting foot NPB-120 / NPB-240 / NPB-360CHF 0.6092 Available immediately
Similar products
-
NPB-360-48TB
360W charger 55.2V/6A, terminal blockCHF 69.40Available to order -
NPB-450-48
450W charger 55.2V/6.8ACHF 110.70Available to order -
NPP-450-48
450W charger or power supply unit 55.2V/6.8ACHF 98.20Available to order -
NPB-750-48
750W charger 55.2V/11.3ACHF 162.10Available to order -
NPB-360-48XLR
360W Charger 55.2V/6A, XLR ConnectorCHF 69.40Available to order
