DDRH-15/30/45 Series: 15 Watt & 30 Watt & 45 Watt DC-DC converter with ultra-wide 150 to 1500 Vdc input

MEAN WELL releases the latest products of DC-DC converters for photovoltaic and energy storage applications with a wide input voltage range from 150 to 1500Vdc

With the DDRH-15/30/45 series, MEAN WELL complements the existing DDRH-60/120/240 and RSDH-150/300 families in the lower power range.

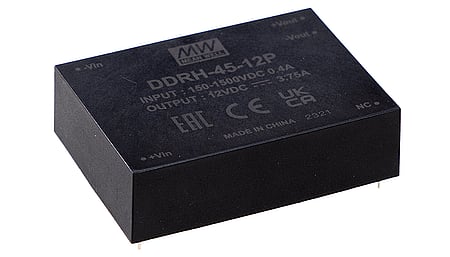

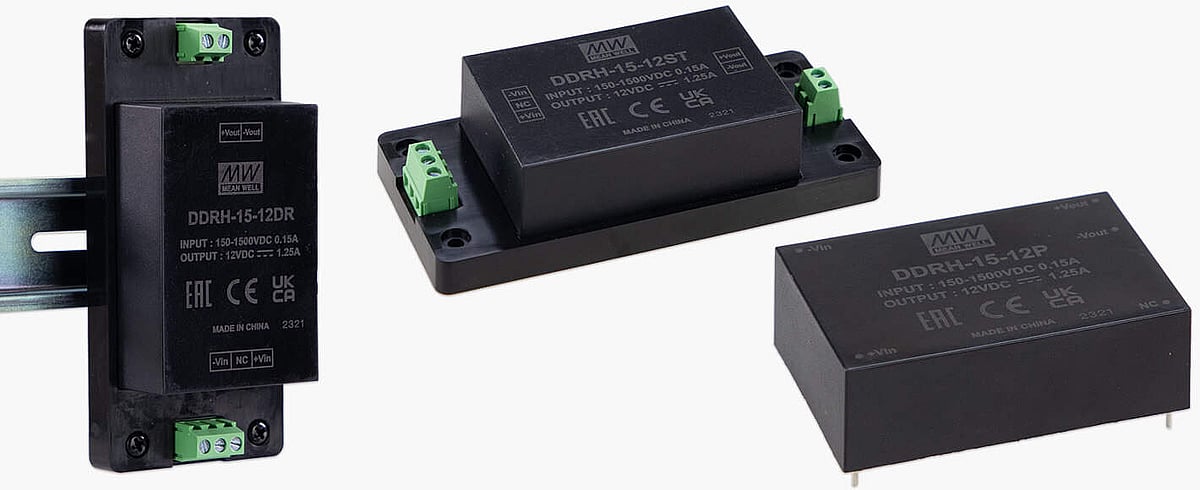

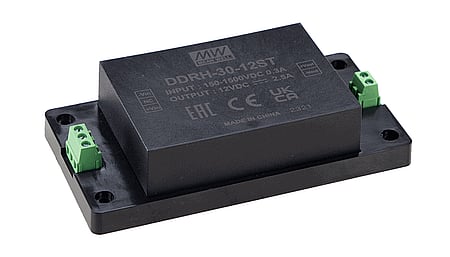

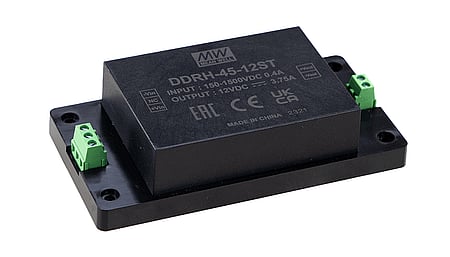

The DC-DC converters are available in 3 different power classes. You can choose from versions for PCB mounting, for chassis mounting and for top hat rail mounting. All types can be used in the temperature range from -40°C to +80°C, the insulation is 4kVac, the permitted height is 5000 meters. The converters are also certified to IEC62109-1 for photovoltaics.

The DDRH series can therefore be used for renewable energy, energy storage, charging stations and other applications where a high DC voltage needs to be converted to a low voltage.

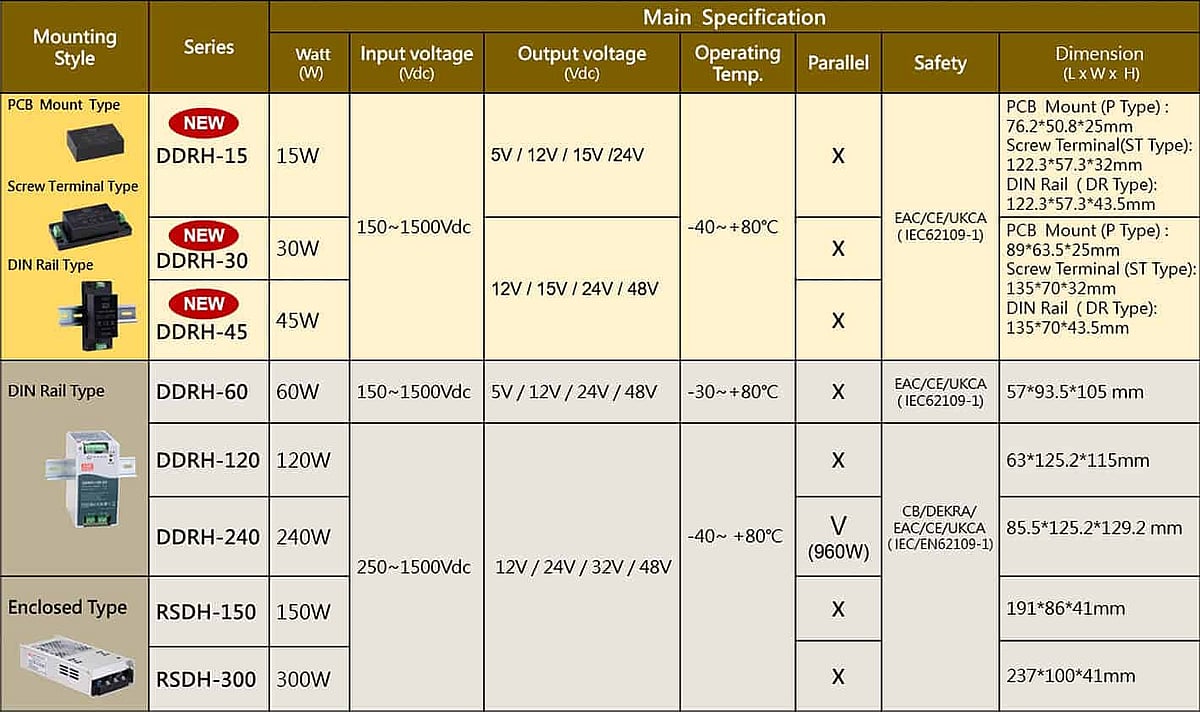

DC/DC converter selection guide for PV and energy storage applications
