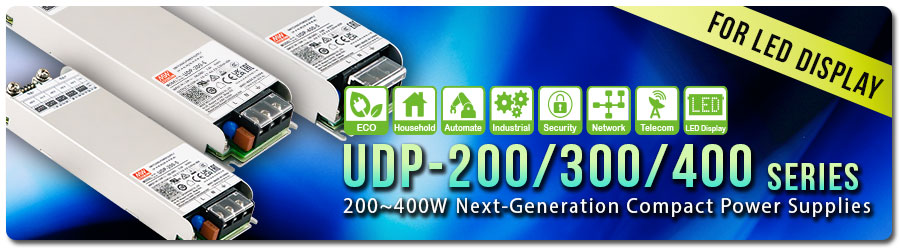

MEAN WELL UDP-200/300/400 – Compact Power Supplies for LED Displays

200 to 400 W power output, up to 92% efficiency, and an extremely slim design

With the UDP series, MEAN WELL is introducing a new generation of compact power supplies for LED display applications. The UDP-200, UDP-300, and UDP-400 models offer high power density with an exceptionally low profile, making them ideal for modern LED displays with limited installation space.

Compared to the proven HSP and UHP series, the UDP series features a more compact design, higher power density, improved efficiency, and an attractive price-performance ratio.

Flexible output voltage via DIP switches

The UDP series is available in three output current variants: 40 A, 60 A, and 80 A. Depending on the model , output voltages of 4.2 V, 4.6 V, and 5 V are available.

Instead of a conventional VR potentiometer, the standard output voltages are conveniently selected using integrated DIP switches. This allows the power supply to be quickly and consistently configured for the specific LED display application.

Extremely slim design

A distinctive feature of the UDP series is its low profile:

• UDP-200: only 19 mm
• UDP-300 / UDP-400: only 26 mm

This makes these power supplies particularly well-suited for LED displays and other applications where installation space is limited.

Technical Highlights

• Power ratings from 200 W to 400 W
• Output currents of 40 A, 60 A, and 80 A
• Output voltages : 4.2 V / 4.6 V / 5 V
• Up to 92% efficiency
• Very low profile of 19 or 26 mm
• Output voltage selectable via DIP switches
• Versions available for redundant parallel operation
• Protection against short circuits, overloads, overvoltage, and overtemperature
• Operation at altitudes up to 5,000 m
• Protective-Coated Printed Circuit Board
• 3-year guarantee

Designed for modern LED displays

The UDP series has been specifically designed to meet the requirements of the LED display industry. The combination of high power density, a compact design, and easy output voltage adjustment makes it an attractive solution for LED video walls, digital displays, and other LED applications.

With the UDP series, MEAN WELL is expanding its product line to include a modern, space-saving power supply solution that truly shines in compact LED display designs.
