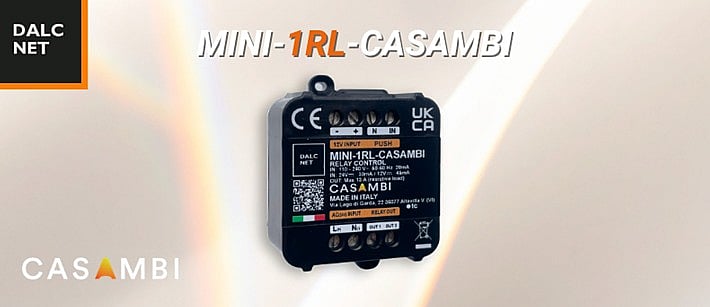

CASAMBI Switch Actuator

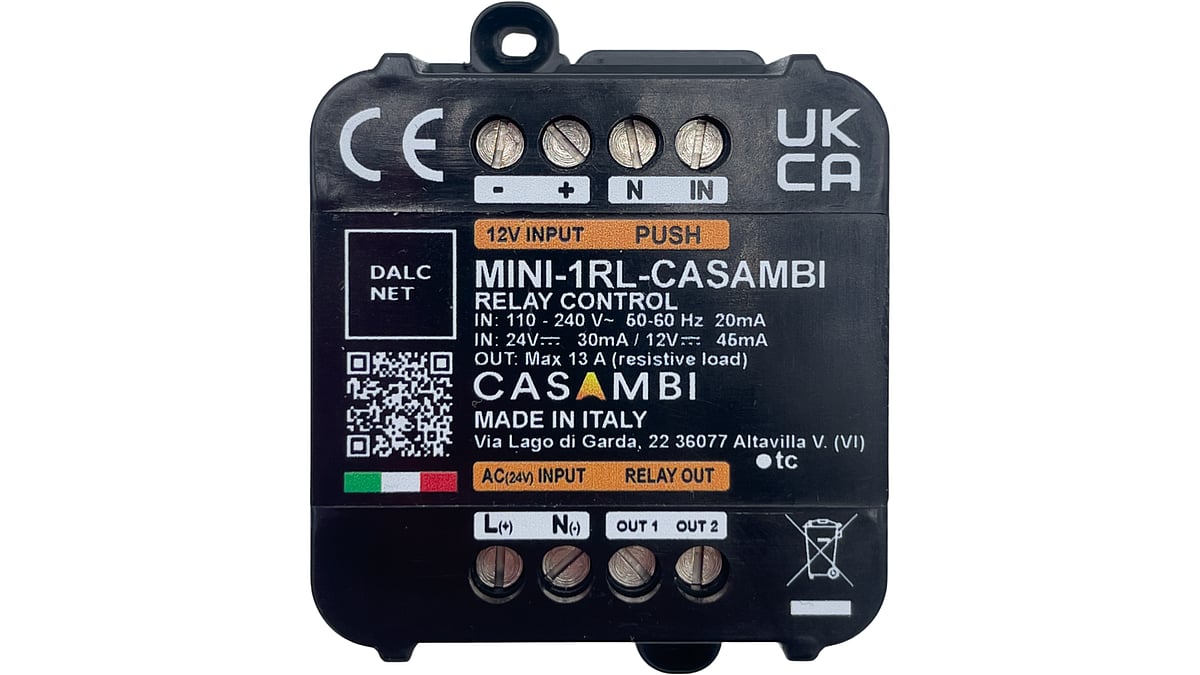

MINI-1RL-CASAMBI is a CASAMBI© relay module with a dry contact normally open (N.O.) output for controlling non-dimmable loads and a dry contact input (e.g., HVAC systems, automatic garage doors, etc.). It can be controlled remotely via Bluetooth using the CASAMBI© app, via the mesh network, or locally via a normally open push button. MINI-1RL-CASAMBI can be powered by three different types of power supply: 230 VAC at 50/60 Hz, 24 VDC constant voltage, or 12 VDC SELV constant voltage, and is suitable for controlling non-dimmable loads such as incandescent/halogen lamps, LED lamps/drivers, high-frequency fluorescent lamps, electronic or wire-wound transformers, or motors. The relay module can deliver an output current of up to 13 A (depending on the connected load) and features the following protective devices: continuous mains overvoltage (non-replaceable fuse), mains voltage spikes, and overtemperature protection.

Technical data

• Control of non-dimmable loads
• Power supply (AC or DC): 230 VAC (AC/24V INPUT), 24 VDC (AC/24V INPUT), 12 VDC (12V INPUT) (SELV recommended)
• Output (RELAY OUT): N.O. relay (dry contact), switches up to 13 A
• Local control (PUSH): 1 normally open push-button input, programmable for controlling CASAMBI© devices
• Remote control: via Bluetooth Low Energy (CASAMBI© app)
• Suitable for use in dry environments
• Extended temperature range
• 100% functional test
• 5 year guarantee
