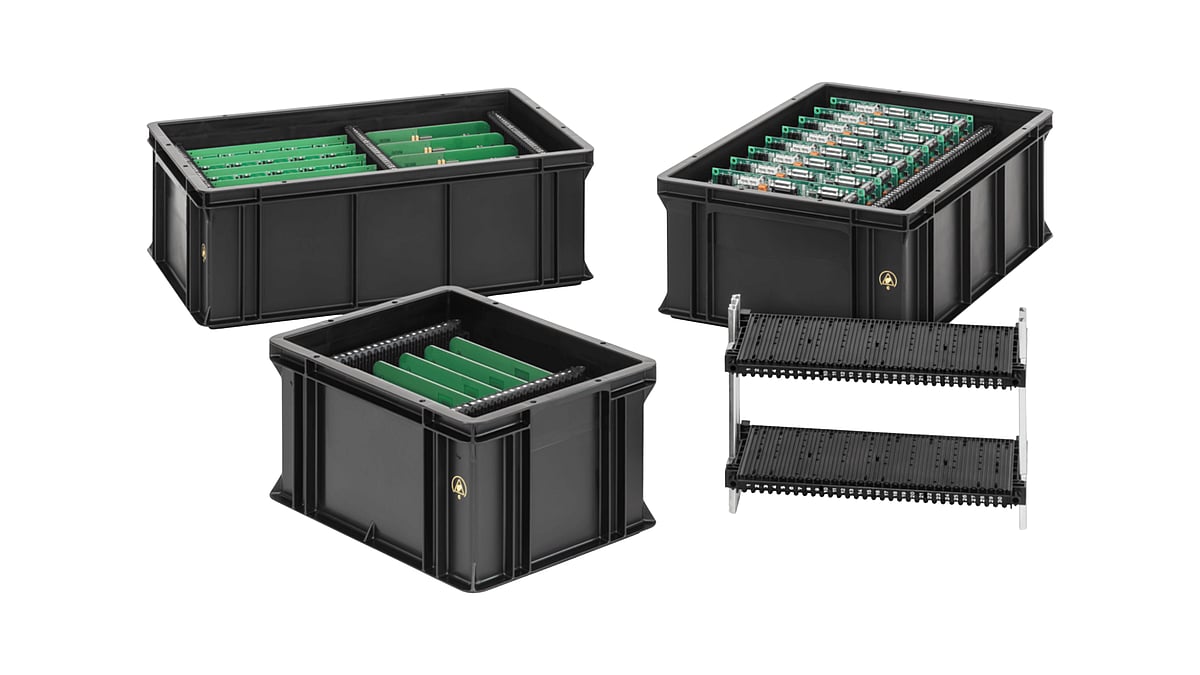

ESD protection for printed circuit boards: safe storage and transport

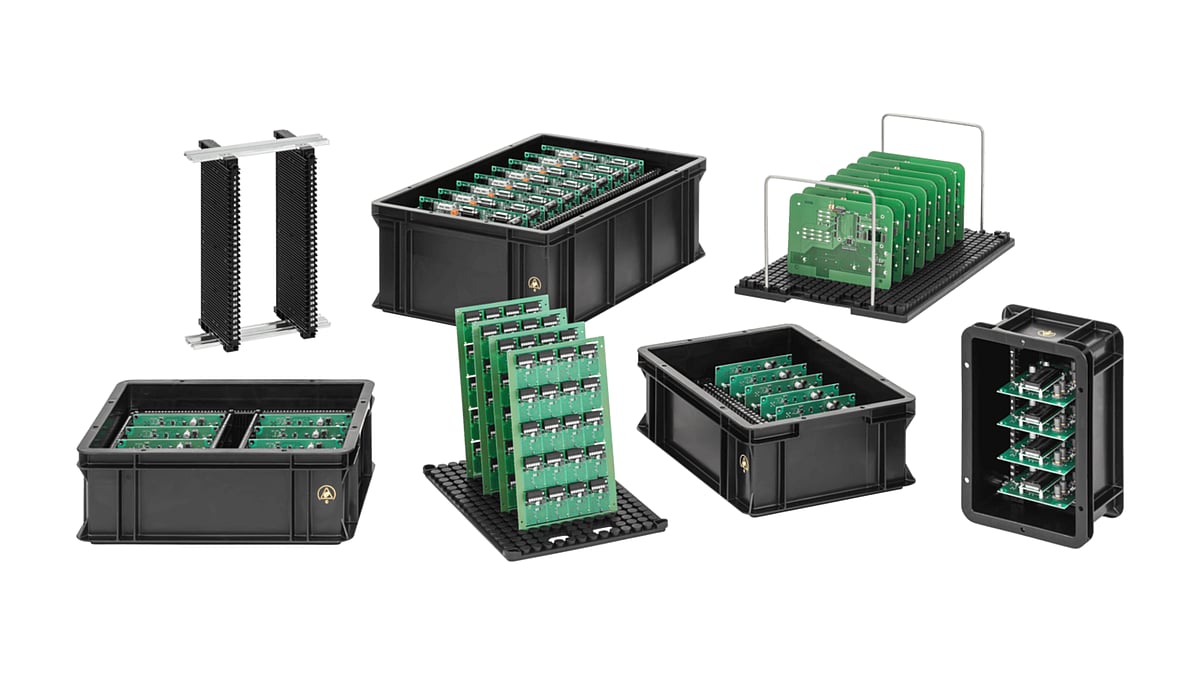

Special ESD handling systems for printed circuit boards offer optimum protection for the safe storage and reliable transportation of electronic components. They minimize the risk of electrostatic discharge and ensure structured, safe storage.

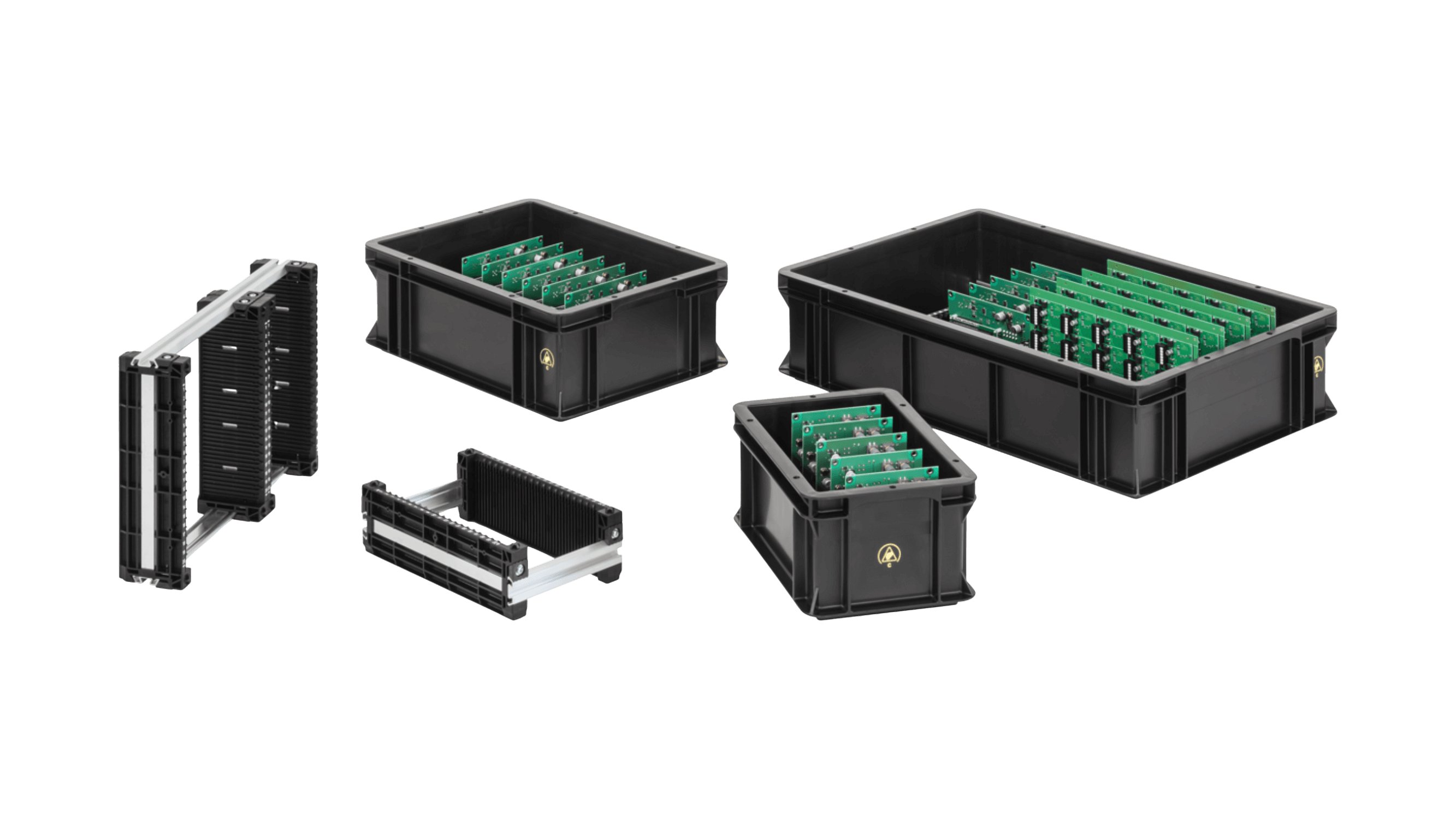

In combination with Blackline stacking containers, the available PCB systems provide additional protection against mechanical influences, dirt and moisture - ideal for use in production, storage or shipping.

PRODUCT GROUPS

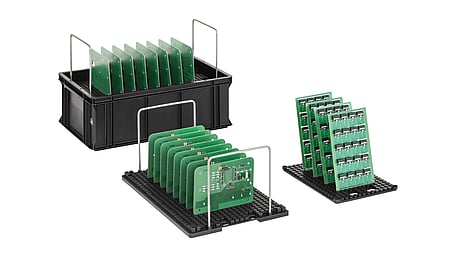

PCB Holder

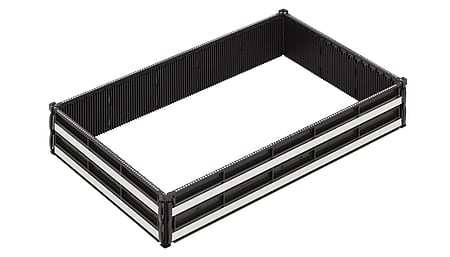

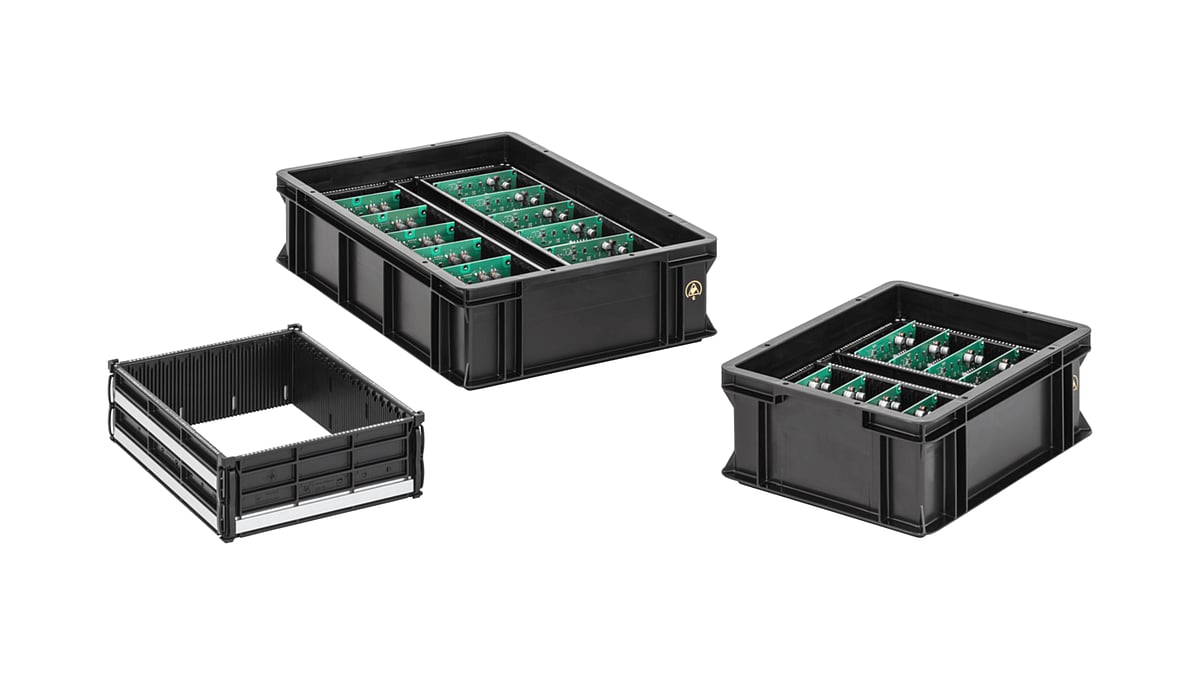

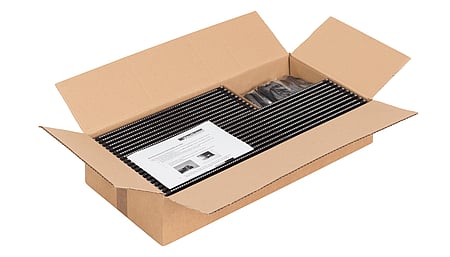

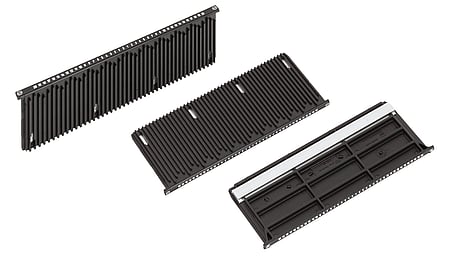

Printorama

• Suitable for Blackline containers 400×300 mm lengthwise and crosswise
  600×400 mm lengthwise and crosswise
  plus partition walls lengthwise and crosswise

• Slot wall height 98 mm
  Individually adjustable to PCB size

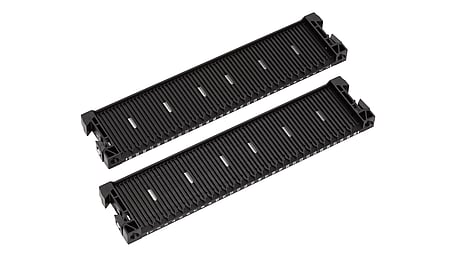

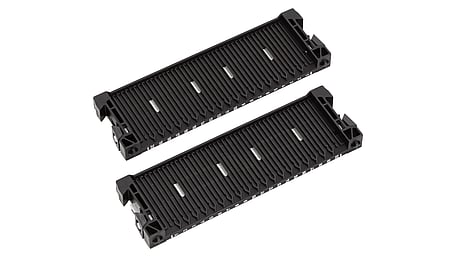

Rack system 100

• Suitable for Blackline containers
  200×300 mm lengthwise
  400×300 mm lengthwise and crosswise
  600×400 mm crosswise

• Slot wall height 80 mm
  Individually adjustable to PCB size

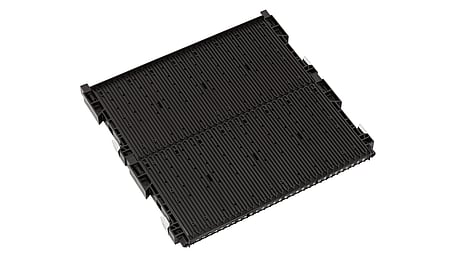

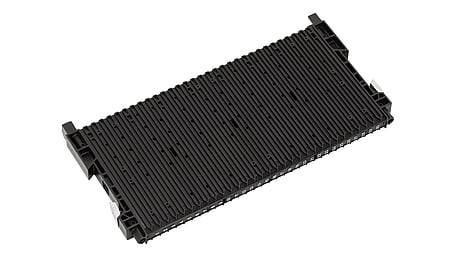

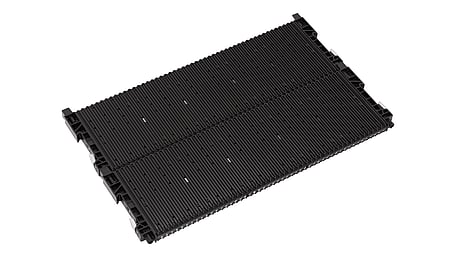

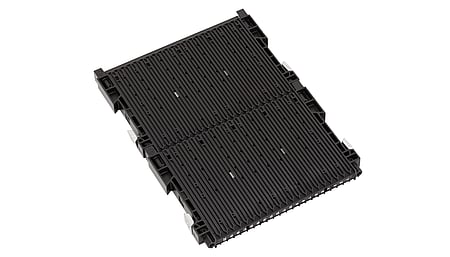

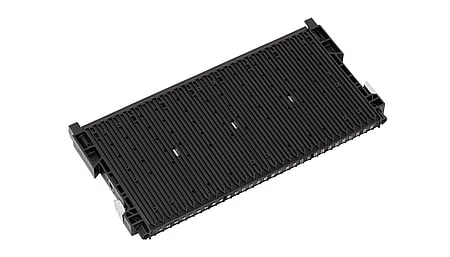

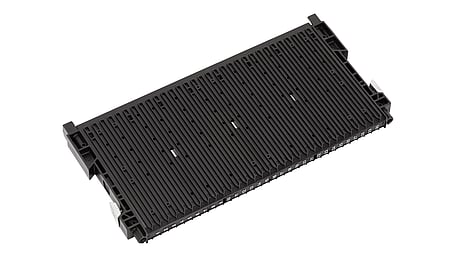

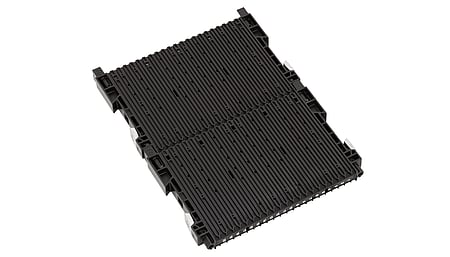

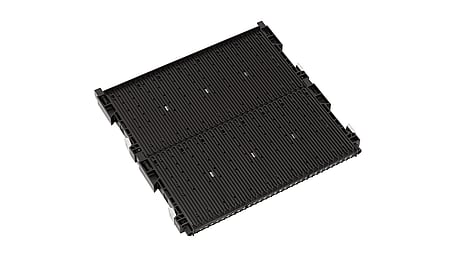

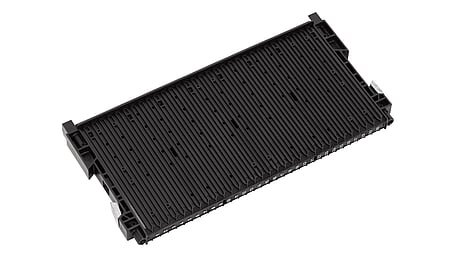

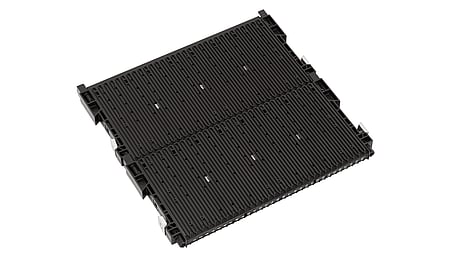

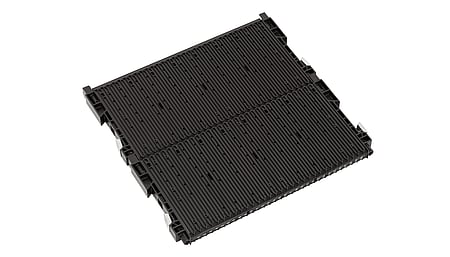

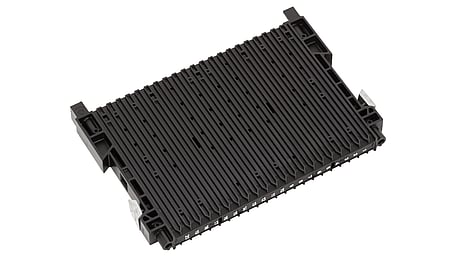

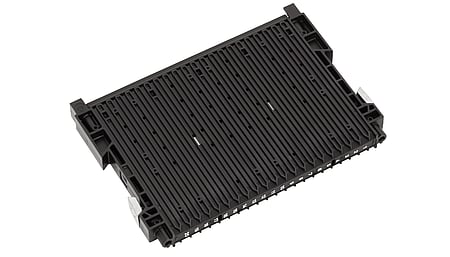

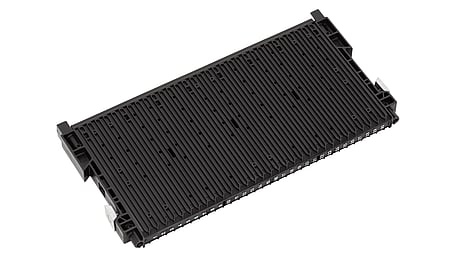

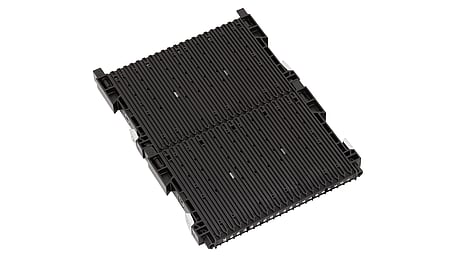

Rack system 180

• Suitable for Blackline containers
  400×300 mm lengthwise and crosswise
  600×400 mm lengthwise and crosswise

• Height of groove wall 180 mm

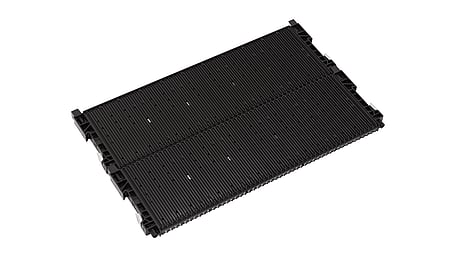

  Height of double groove wall 345 mm
• individually adjustable to PCB size


BLACKLINE BL

The conductive SGL standard stacking container from the Blackline series was specially developed to meet the requirements of professional electronics handling. It meets the guidelines of the Swiss Logistics Association (SGL) and is ideal for the safe shipping, storage and protection of sensitive electronic components - both in manual and automated material flows.

The Blackline series is available in around 20 sizes and versions and is designed for long-term industrial use. Thanks to the thick-walled, particularly robust and dimensionally stable construction, the containers offer reliable protection against mechanical loads and electrostatic discharge - even with long-term use.
