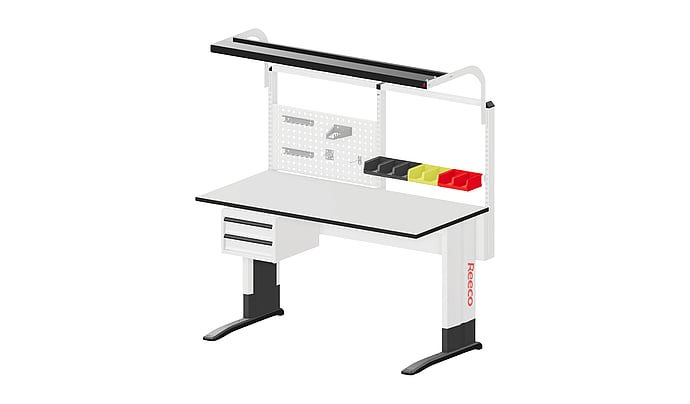

Premium S7 Electrically Adjustable ESD Table, Width 1530 x Depth 750 mm
Book a free demo nowCHF 3'285.00 excl. VAT, plus shipping costs
Item No.:
RF-001-15375-9003-M-S7
In stock: Available to order
Estimated delivery time:
10-15 days
Description
This high-quality ESD workbench is equipped with modern lifting columns and an electric drive system for infinitely variable height adjustment. Ideal for electrostatically protected work areas.
- High load capacity with minimal energy consumption - only 0.1 W in standby mode
- Modularly expandable, robustly constructed and designed for durability
- Perfect for professional use in electronics production, laboratories or technical workstations
Technical data & highlights
- Dimensions: W 1530 × D 750 mm
- Height adjustment: 670 - 1120 mm, stepless (continuous with inner rail)
- Max. Load of the frame: 320 kg
- Standard : Complies with EN 60335-1 and IEC-61340-5-1
Electric adjustment
- Smooth start & stop thanks to intelligent control box
- Low-noise operation
- Maximum force: 1600 N (per leg)
- Lifting speed: up to 43 mm/s (with zero load)
- Power supply: 24 V - AC adapter included in scope of delivery
- Bluetooth connection: Height adjustment also possible via smartphone app
Table top - conductive & resistant
- Color: RAL 7036
- Surface: Conductive laminate, scratch and moisture resistant
- Core: Moisture-resistant, conductive core
- Thickness: 25 mm
- Mounting: Attached to the frame with robust threaded sleeves
Installation - tools required: Allen key: No. 4 & No. 6, Phillips screwdriver PZ2 and open-end wrench No. 13
Scope of delivery
- 1 unit: Premium electrically adjustable ESD table frame, 1530 x 750 mm
- 1 piece: ESD tabletop (0.3 mm melamine), 1530 x 750 mm
- 1 unit: Grid tube module , 2 x M 750 mm, height: 900 mm

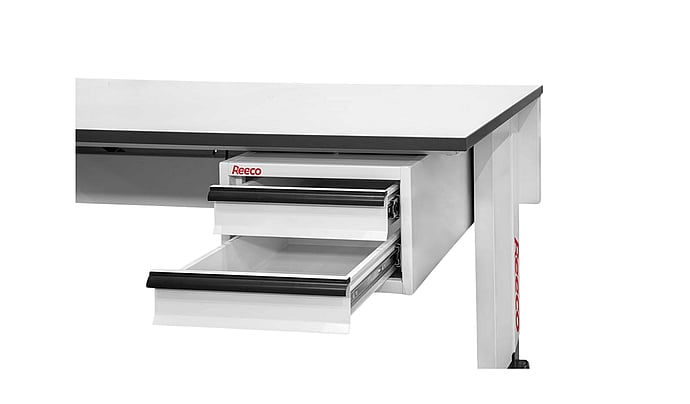

- 1 unit: Wall-mounted drawer unit (2 drawers), 380 x 460 x 240 mm, Premium Electric
- 1 piece: Reinforced perforated sheet metal (factory-perforated), 750 x 400 mm
- 2 pieces: Screwdriver holders
- 1 piece: Pliers holder
- 1 piece: Single hook , 85 mm (5 pieces)
- 1 piece: Holder for the open-end wrenches
- 1 piece: Mounting rail , 750 mm
- 2 pieces: ESD containers (1 L) – red, 100 x 160 x 75 mm
- 2 pieces: ESD containers (1 L) – yellow, 100 x 160 x 75 mm
- 3 pieces: ESD containers (1 L) – black, 95 x 160 x 75 mm
- 1 piece: Lighting/compensation rail , 2 x 750
- 1 piece: LED light (slim), 1500 mm
Additional information
| Workbenches | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
| ESD work tables | ||||||||||
|
||||||||||
| Maintenance aids | ||||||||||
|
|
||||||||||
| LEDs | ||||||||||
|
|
||||||||||
Data sheets
| Assembly instructions | PDF(799.86 KB) |
|---|
Accessories
-

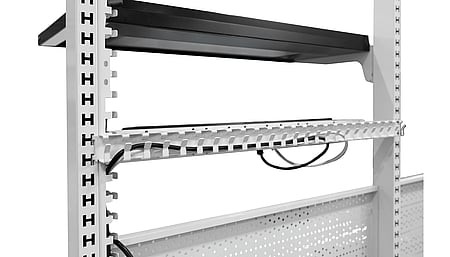

ESD Cable Duct, 750, 900, 1200 mm
