Étau Spannfix

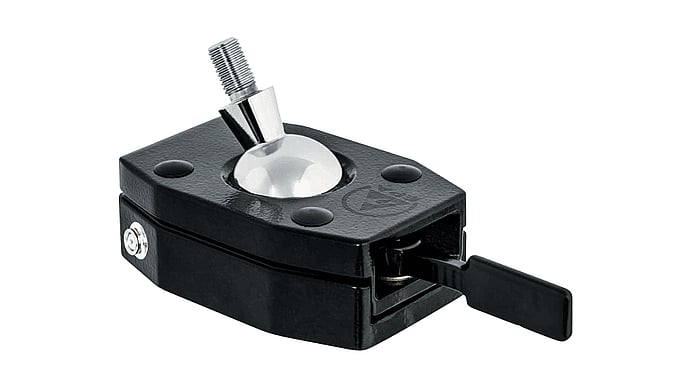

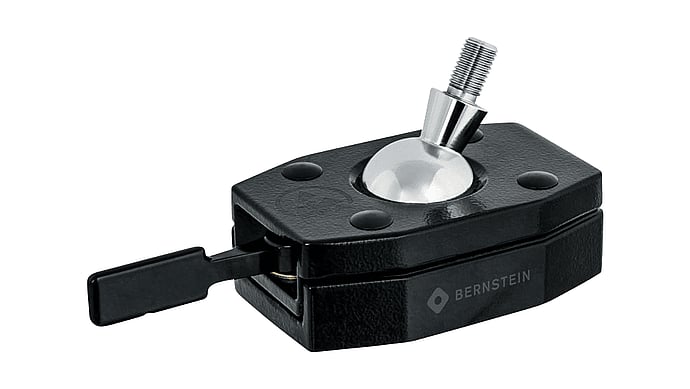

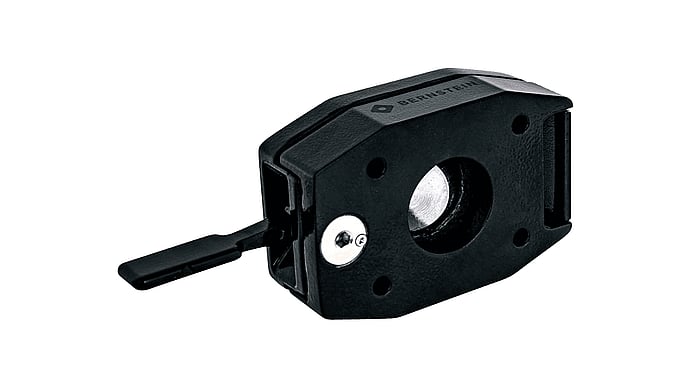

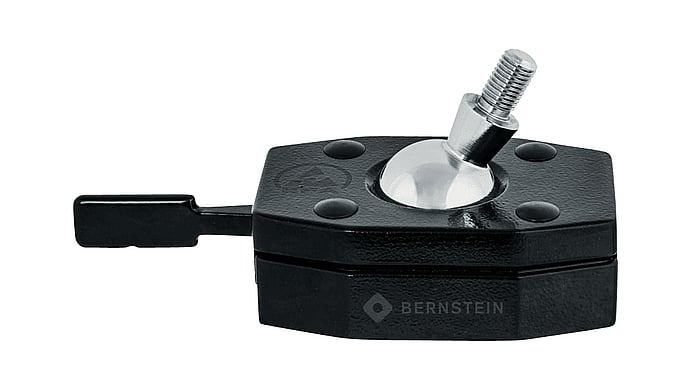

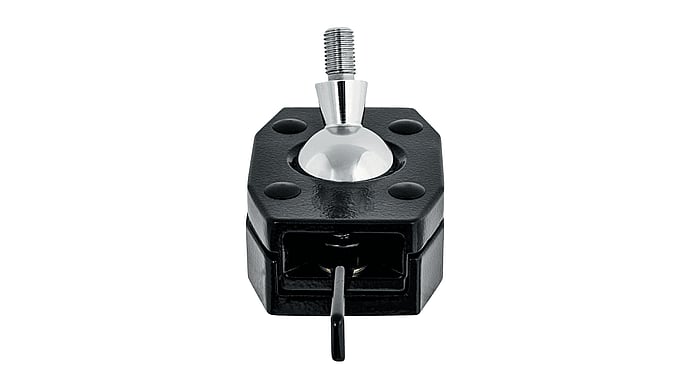

SPANNFIX ball joint base for screwing on, M12 x 1.5 x 20 mm
CHF 108.50 excl. VAT, plus shipping costs
Item no:
9-281-SW
In stock: Available to order
Estimated delivery time:
2 weeks
Description
- Ball-and-socket quick-release clamp for heavy parts, 360° rotatable, continuously lockable, quality product Made in Germany
- For screwing onto the workbench (space dimensions: 110x72mm)
- Threaded stud M12 x 1.5 x 20 mm
- Mounting surface approx. Ø 20 mm
- Tilt angle +/- 45°
- Included in the scope of delivery: Schnorr washer and lock nut, lock nut for the thread
- Cast aluminum, powder-coated, black
- Orientation dimensions approx. 80 x 170 x 75 mm
- Weight 650 g
Additional information
| Étau Spannfix | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
|
||||||
Data sheets
| DE-Brochure | PDF(4.1 MB) |
|---|---|
| EN-Brochure | PDF(11.94 MB) |
