9-205-ESD-SET1 - ESD ball joint vice (clamp-on) dissipative + plug + earthing cable
CHF 187.10 excl. VAT, plus shipping costs
Description
A slight press of the lever is all it takes to adjust the clamped workpiece continuously to any practical working position. The adjustable working height ensures an ergonomic posture when working while standing (such as drilling, sawing, grinding, milling, cutting, etc.). The interchangeable clamping jaws of the ball-joint vises are 50-mm plastic jaws for the small vise and 100-mm steel jaws for the large vise. We offer protective jaws for clamping scratch-sensitive workpieces with felt, leather, cork, and rubber linings. Protective jaws with aluminum prisms are suitable for clamping pipes; all protective jaws are available in jaw widths ranging from 50 to 150 mm. The vise mounting for clamping is suitable for workbenches with a maximum tabletop thickness of up to 80 mm. The screw-on vise mount can be attached to workbenches, tables, and base plates via the four 9-mm through-holes. The high-performance magnets allow for customizable mounting that can be quickly adjusted as needed.
Technical data

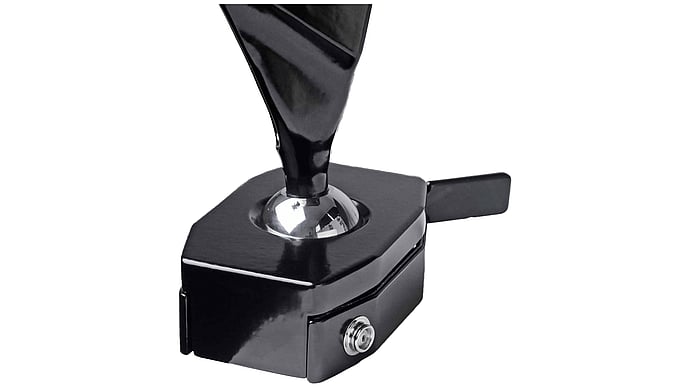

- Precision ball joint 360° rotatable, infinitely adjustable quick release, quality product Made in Germany
- For clamping to the workbench (table thickness max. 80 mm)
- 50 mm ESD plastic jaws with grip
- Clamping width 70 mm, clamping depth 38 mm, clamping pressure 1470 N
- Tilt angle +/- 45°
- Accessories: Replacement jaws, item 9-900-E50-ESD (pair)
- Cast aluminum with ESD powder coating black, dissipative 10^7 to 10^8 Ohm
- Approximate dimensions: 310 x 170 x 75 mm
- Weight 1550 g

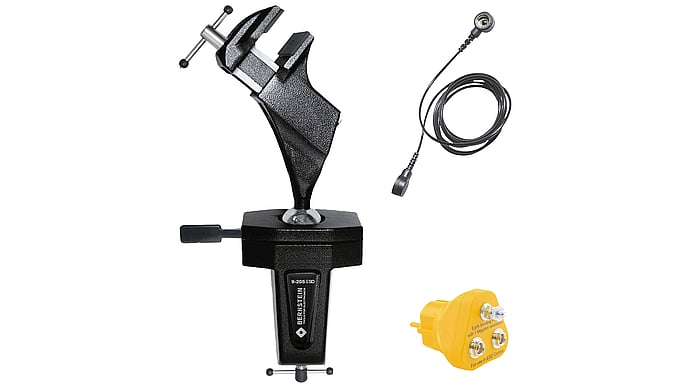

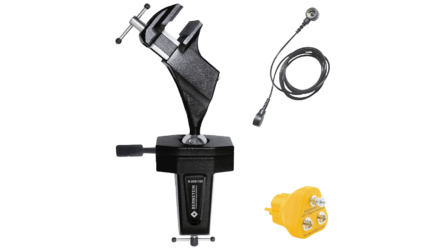

Scope of delivery
- 9-205 ESD ball-joint vice SPANNFIX for clamping, dissipative
- 9-359-2 ESD earthing plug 2×10 mm and M5 connection
- 9-343-1 ESD earthing cable 1 MOhm, 1800 mm 2DK 10/10
Additional information
| Étau Spannfix | ||||||
|---|---|---|---|---|---|---|
|
||||||
| Maintenance aids | ||||||
|
|
||||||
| LEDs | ||||||
|
|
||||||
Data sheets
| DE-Brochure | PDF(4.1 MB) |
|---|---|
| EN-Brochure | PDF(11.94 MB) |
