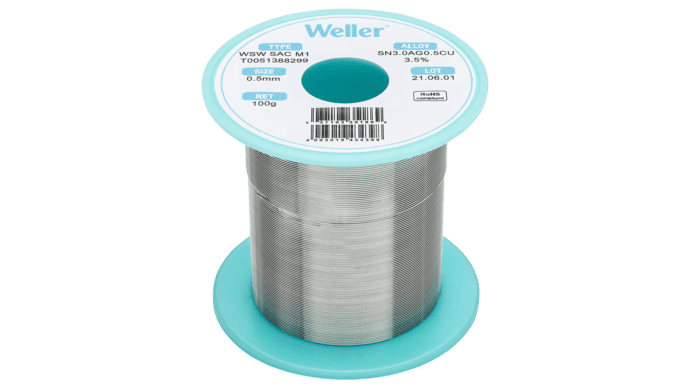

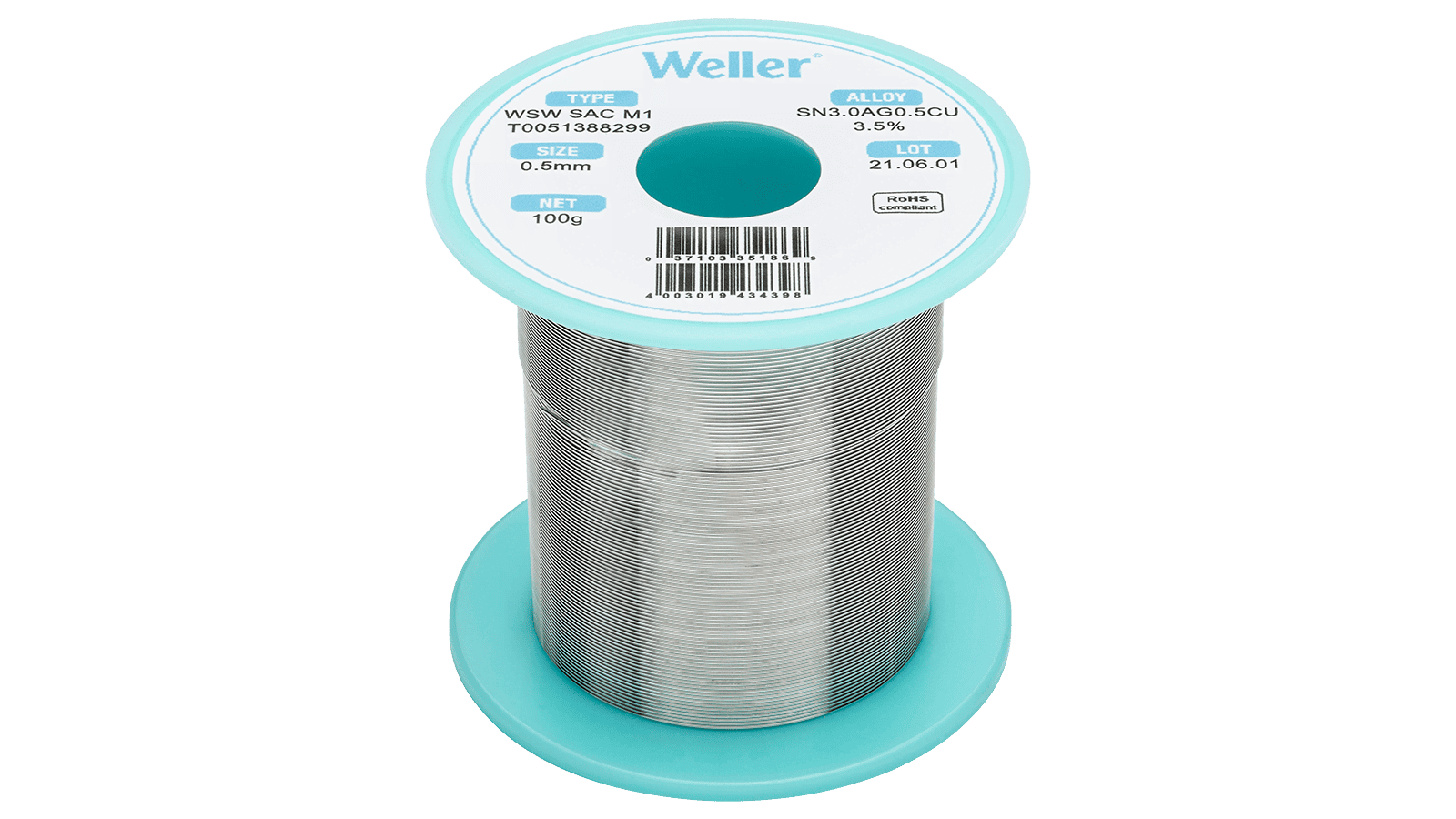

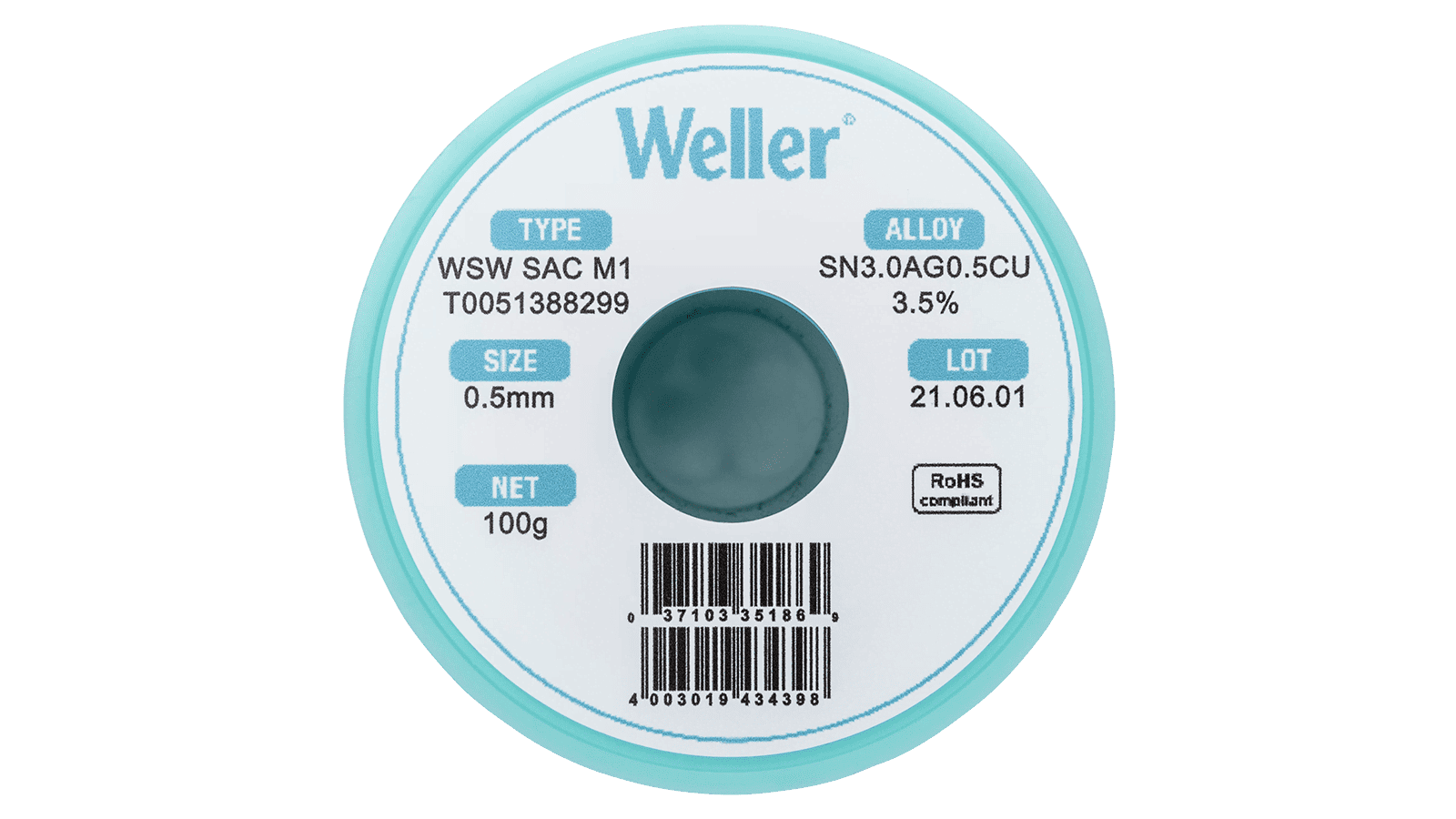

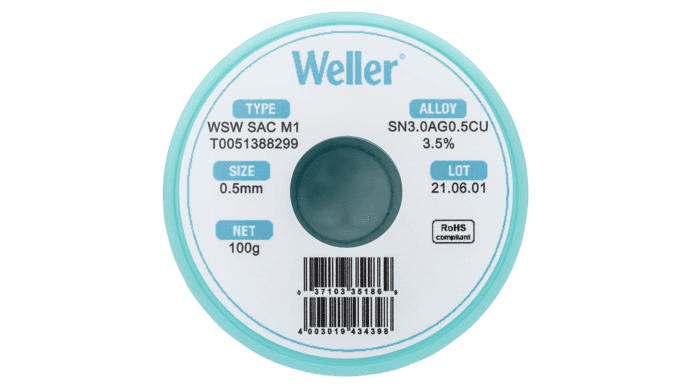

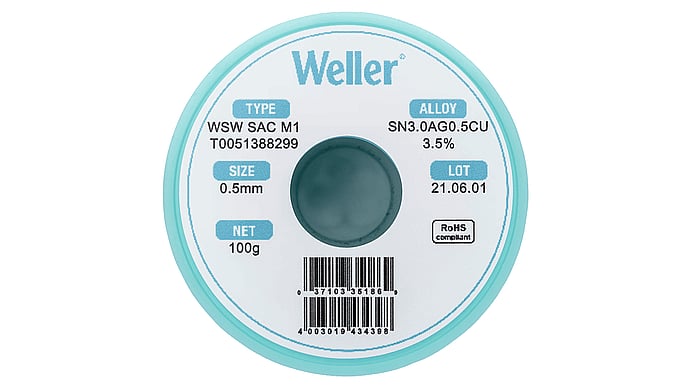

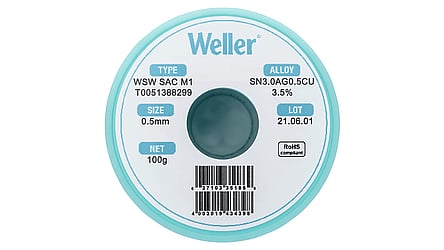

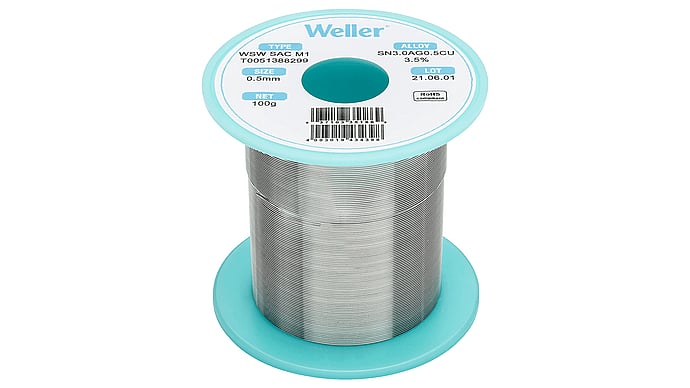

WSW SAC M1 0.5mm, 100g, SN3.0AG0.5CU3.5%
CHF 28.00 excl. VAT, plus shipping costs
Description
The Weller WSW solder wires improve the quality of all soldering work. With a guaranteed 100% continuous flux core, combined with pure first metal melts, WSW solder wires avoid costly rework and enable long-term, highly resistant solder joints without cracking, even on difficult surfaces. The reduced spattering behavior of the wires increases work safety and ensures a clean work area.
Technical data
- Alloy Sn96.5Ag3.0Cu0.5, flux content 3.5%
- Universal solder wire for various applications
- Processing with high soldering temperatures possible
- Reduced Fe leaching to increase peak service life and reduce peak consumption by up to 70%.
- Lead-free industry standard with 3% silver content
- Guaranteed 100% continuous flux core
- Very fast wetting even on difficult surfaces, such as soiled or oxidized materials
- Excellent melting properties
- Reduced flux splash behavior & no-clean flux
- Diameter: 0.5 mm / 0.020 inch, weight: 100 g / 3.527 oz
Additional information
| Wire solders | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
Data sheets
| Brochure_EN | PDF(4.04 MB) |
|---|---|
| Brochure_FR | PDF(4.07 MB) |
| Brochure_ENG | PDF(4.09 MB) |
