Soldering tools

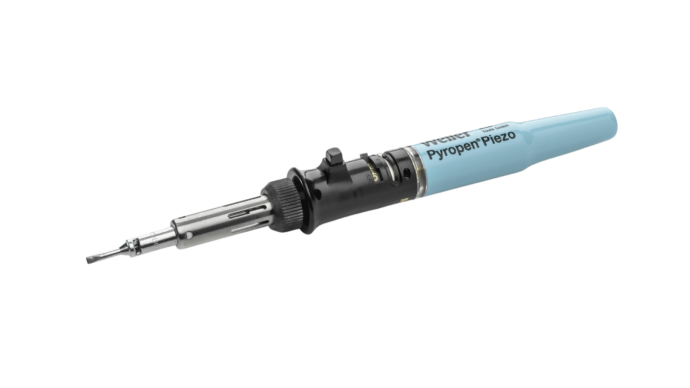

Pyropen piezo set in metal box (self-igniting)
CHF 203.00 excl. VAT, plus shipping costs
Item no:
0051605899
In stock: Available to order
Description
- Self-igniting piezo function (without gas refill bottle):

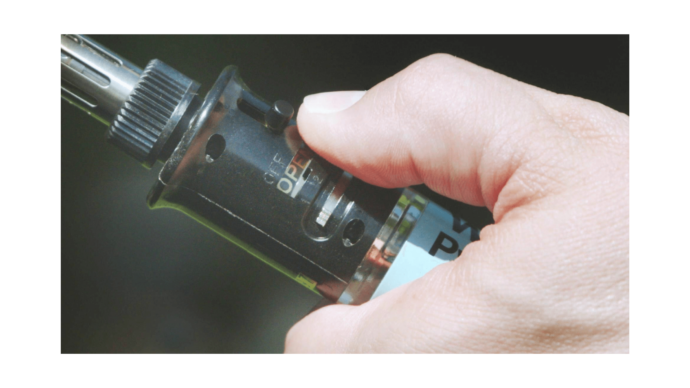

Convenient one-hand start with self-igniting piezo button ignition, without the need for an additional tool - Ready for use in seconds:
Fast heat-up time, no long waiting for the soldering iron to heat up - Extra long operating time:
Butane gas soldering iron enables approx. 3 hours of operation with one filling of Weller butane gas - Soldering on the move, even outdoors:

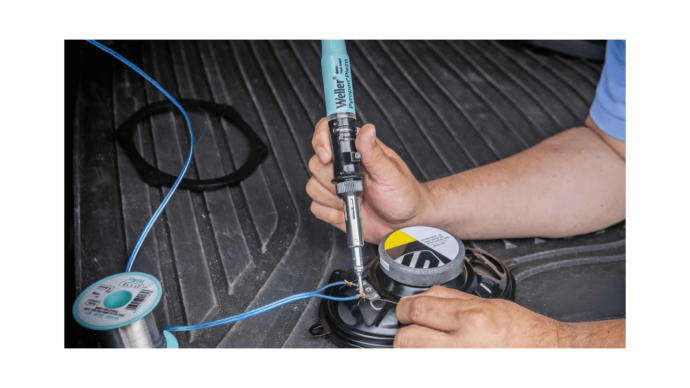

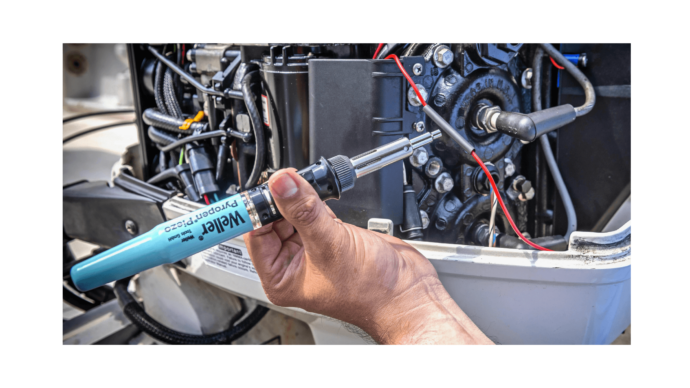

Complete your soldering task anywhere without a mains connection or an annoying cable in the way - High flexibility thanks to accessories supplied:
With additional hot air blower function for heat-shrink tubing - Temperature adjustable from 250° to 650°C:
variably adjustable temperatures between 250° and 500°C when used as a soldering iron, and 650°C when used as a hot air tool. - Easy refilling with Weller butane gas:

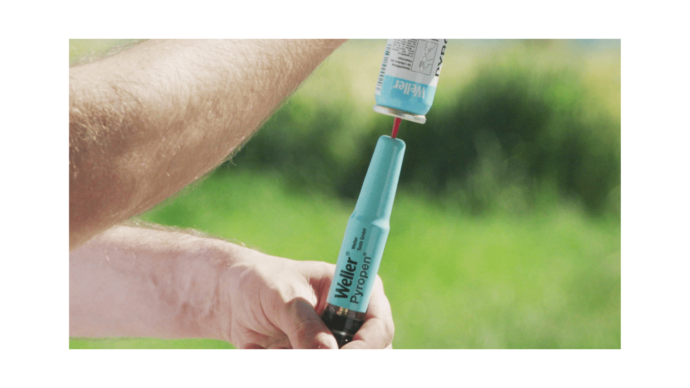

No need for cables, batteries or cartridges, simply refill with Weller butane gas (Weller® Cat. No. WB1 or WB2) in just a few seconds for a virtually uninterrupted workflow
Technical data
- Filling quantity in ml: 28 ml - lasts for approx. 2 hours
- Comparison with electrical power: 20 W - 80 W
- Temperature range: 250°C - 500°C (482°F - 932°F)
- Soldering tip family: 70-X series

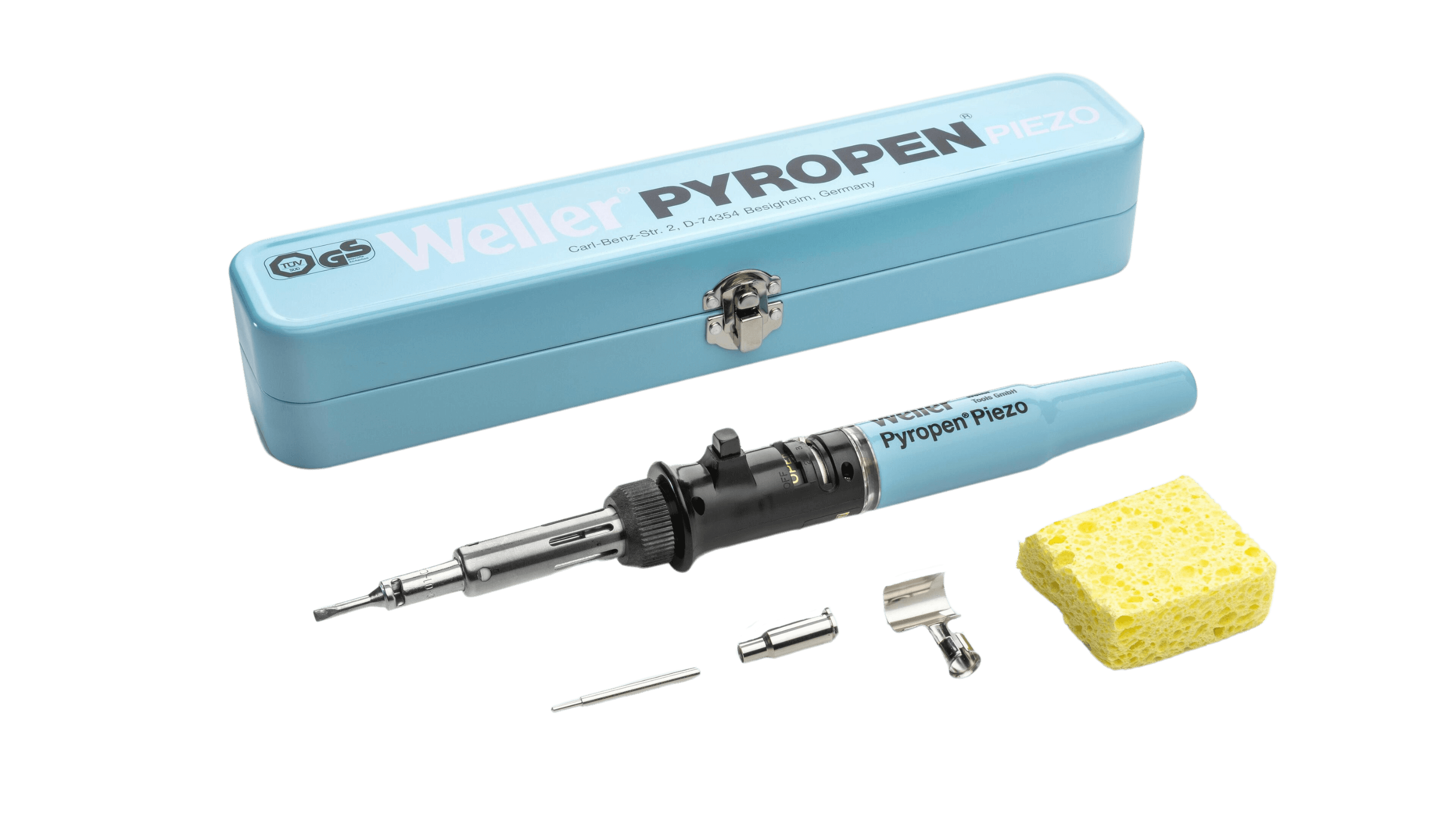

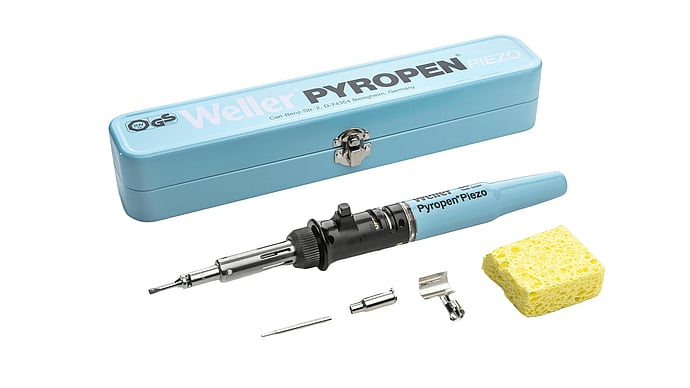

Scope of delivery:
- Butane gas-powered Profi-Line soldering iron (self-igniting)
- 7040U: Metal box
- 70-01-52: Hot air nozzle Ø 4.9 mm
- 70-01-02: Soldering tip chisel shape 3.0 mm
- 70-01-55: Reflector front
Additional information
| Soldering tools | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
| LEDs | ||||||||
|
|
||||||||
Accessories
-
0051612099
70 01 01 Soldering tip needle shape 1.0 mmCHF 15.804 Available immediately -
0051612499
70 01 05 Soldering tip needle shape extra slim 0.5 mmCHF 15.807 Available immediately -
0051614199
70 01 51 Hot air nozzle Ø 3.3 mmCHF 21.00Available to order -
0051614399
70 01 53 Hot air nozzle Ø 7.0 mmCHF 21.202 Available immediately -
0051612199
70-01-02 Pyrope soldering tipCHF 15.803 Available immediately -
0051613099
70-01-11 Pyrope soldering tipCHF 19.604 Available immediately -
0051613299
70-01-13 Pyrope soldering tipCHF 19.603 Available immediately -
0051614099
70-01-50 Hot air nozzle Ø 1.7 mmCHF 24.40Available to order -
0051615899
70-01-54 for shrinking work Ø 8.0 mm, width 22.0 mmCHF 7.35Available to order -
0051615999
70-01-55 for shrinking work Ø 6.0 mm, width 18.0 mmCHF 7.35Available to order -
0051615099
70-07SU Pyropen soldering nozzleCHF 29.00Available to order -
0051615199
70-07TU Flame nozzle, not for piezo versionCHF 30.80Available to order -
0051616099
Gas cylinder RB-TSCHF 7.50243 Available immediately
