Soldering stations
WX2011 Pico MS Soldering Station Set with 55W Soldering Iron
This powerful, user-friendly set offers versatile performance for standard and micro soldering applications in the aerospace, electronics, sensor, medical, military and automotive industries.
CHF 950.00 excl. VAT, plus shipping costs
Item no:
0053422671
In stock: Available to order
Description
- For the smallest soldering applications with the highest requirements: 0402 to 01005
- The station works as a control unit for tips, soldering irons, solder fume extraction and other tools
- Extremely fast heating time: 3 seconds.
- Triple award-winning cutting-edge technology is fully compliant with MIL-SPEC / IPC standard
- Intelligent soldering iron with motion sensor and integrated data storage
- Tool-free tip change
- SAC M1 solder wire for optimum flow properties and homogeneous flux distribution
- The WX soldering irons heat up in a very short time and are ready for immediate use.
- Thanks to an integrated sensor, WX tools only switch on when there is movement. Energy is consumed when the tools are actually in use. Connected auxiliary devices are shut down into standby mode.
Tips/tools
- tips: TO THE MATCHING TIPS
- Compatible soldering irons: WXMP, WXMP MS, WXPP, WXPP MS, WXUP MS, WXP 65, WXP 80, WXP 90, WXP 120, WXP 200
- Compatible soldering tweezers: WXMT, WXMT MS
- Compatible desoldering irons: WXDP 120, WXDV 120, WXHAP 200
- Compatible solder bath: WXSB 200
- Compatible heating plate: WXHP 120
- WXAir rework module: WXair

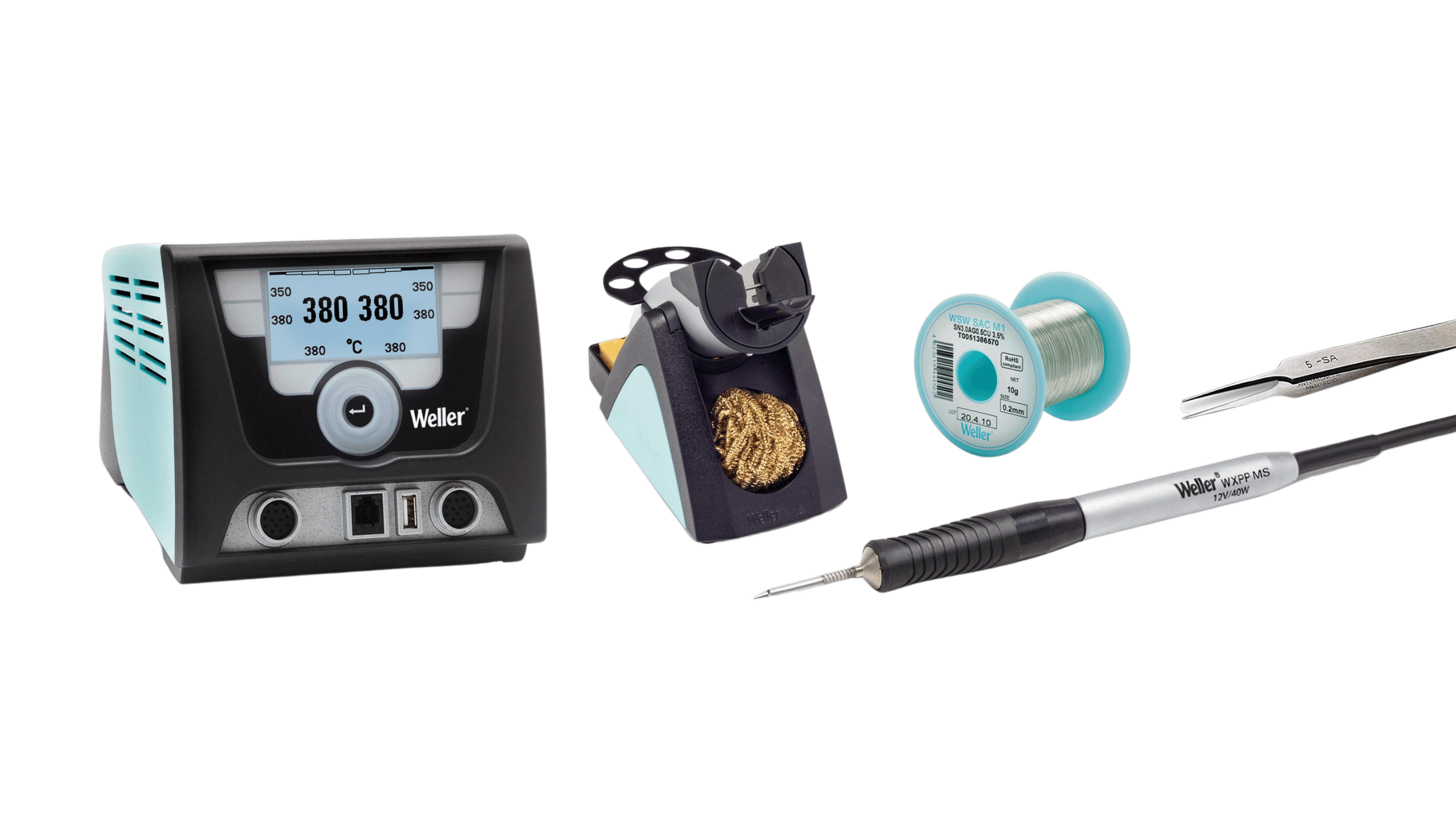

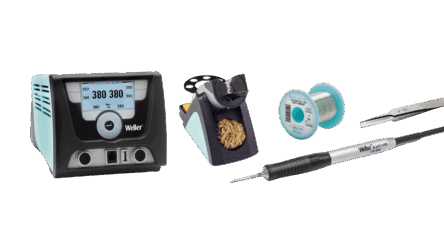

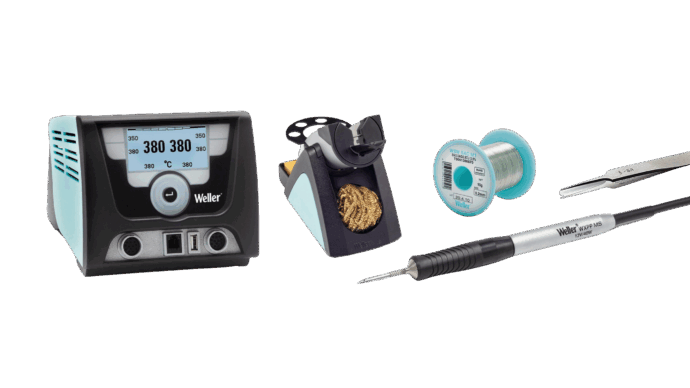

Scope of delivery
- WX 2Soldering station Power Unit 200W
- WXPP MS: Soldering iron
- RTP 004 S MS: Soldering tip
- WSR208: Safety deposit box
- 5SA: tweezers
- 10g SAC M1
- CH Mains cable for Switzerland
Additional information
| Soldering stations | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| LEDs | ||||||||||||||
|
|
||||||||||||||
Data sheets
| Technical data sheet_WX 2011_E | PDF(317.67 KB) |
|---|---|
| Compatibility_RT tips | PDF(641.58 KB) |
| Line Matrix | PDF(1.17 MB) |
| Explo_WX 2 | PDF(114.54 KB) |
