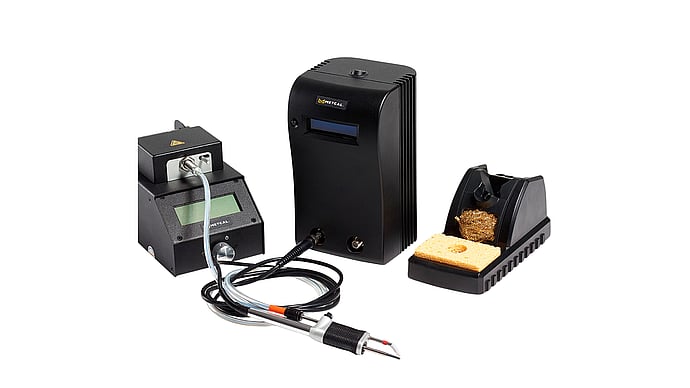

MX-570 - 40W-MX-System with MX-PS500, USF-1000
CHF 1'145.00 excl. VAT, plus shipping costs
Description
The system works with the proven SmartHeat® technology. Each soldering tip is equipped with a self-regulating heating element that detects its own temperature and keeps it constant at the preset value - over the entire service life of the tip. The temperature is determined by the metallurgical properties of the heating element; no external adjustment or additional device is required.
The MX-500 has a switchable dual port and offers 40 W SmartHeat® power. An integrated Net Power Meter displays both graphically and numerically the power transferred to the soldering tip.
Technical data
- Programmable power save mode: adjustable from 10 to 120 minutes
- Ground Fault Interrupt: monitors the ground connection, detects faults immediately, alarms and switches the system off automatically
- Universal power supply unit: automatically adapts to the input voltage and enables worldwide use without adapters or loss of power
- Compatibility: fully compatible with current and previous MX upgrade kits, soldering tips, handles and accessories
Scope of delivery
- MX-500P: Power supply unit
- USF-1000: Solder feeder
- MX-H7-SF: Solder feeder handpiece
- USF-FTA-12: Feed tube assembly
- USF-GTA-12: Teflon nozzle
- AC-FS1: Foot switch and WS1Sleeper stand
- MX-CP1: Pad for changing soldering cartridges
- CH Mains cable for Switzerland
Additional information
| Soldering stations | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| LEDs | ||||||||||||||
|
|
||||||||||||||
Data sheets
| TDS - Metcal solder wire feeder | PDF(443.73 KB) |
|---|---|
| TDS - USF-1000 | PDF(2.39 MB) |
Downloads
