WHA 3000PS Hot air station set 700W
CHF 7'341.60 excl. VAT, plus shipping costs
Description
The WHA 3000P hot air station is suitable for demanding repair work on PCBs with high-pole FINEPITCH components. A well-designed device concept enables maximum process reliability with user-friendly handling and technically sophisticated detailed solutions. A comprehensive range of accessories complements the possible applications of this repair workstation.
The hot air temperature of the handpiece is adjustable in the range of 50°C - 550°C. The air volume is generated by an internal turbine and is adjustable in the range of 5 l/min - 50 l/min. The hot air temperature and air volume are controlled digitally.
Technical data
- Note: Dry and oil-free external compressed air (400kPa/58psi) required
Scope of delivery

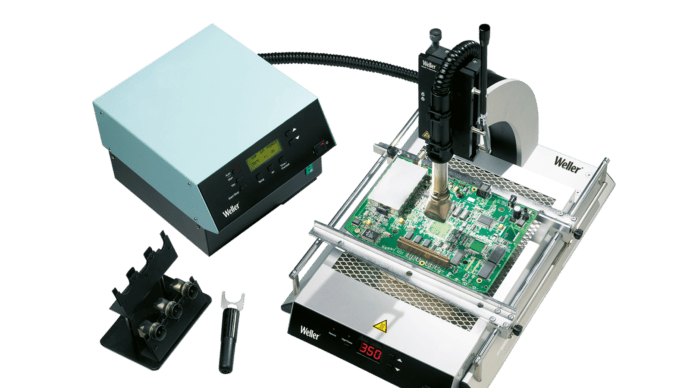

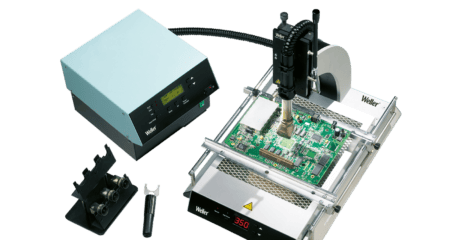

- WHA 3000P Set: Hot air station 700 W / 230 V
- WBHS: PCB holder with stand for WHA 3000P, WHA 3000V and WTHA 1
- WHP 3000: Infrared preheating plate 600 W with Easy Fix PCB holder
- CH Mains cable
Additional information
| Repair stations | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
|
||||||||||||||||
Data sheets
| Technical data sheet_WHA3000PS_EN | PDF(1.64 MB) |
|---|
