HCT2-200-21 - Digital hot air system 230 VAV
CHF 538.00 excl. VAT, plus shipping costs
Description

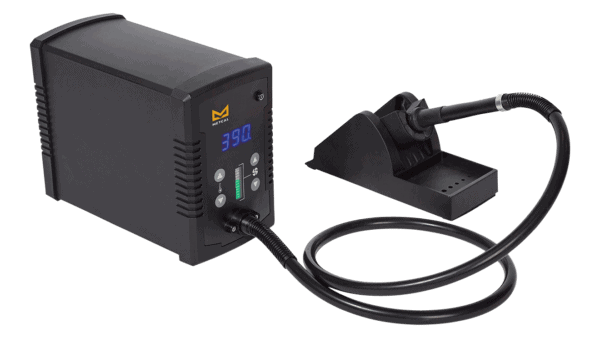

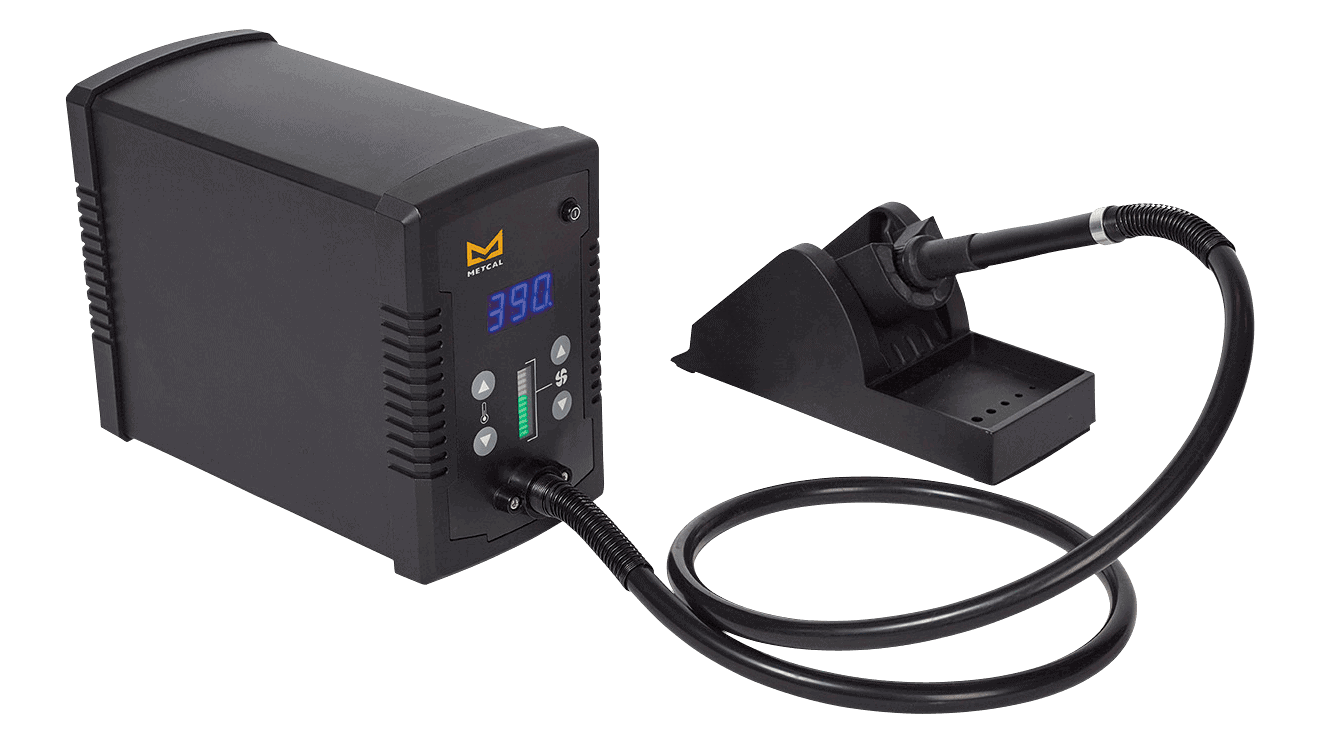

HCT Digital hot air system - HCT2-200
The slim hot air pen with a very finely adjustable air flow of between 1.5 and 7 l/min is ideal for reworking small components, especially on densely populated PCBs. The ergonomic hot-air pen allows even the smallest components, such as 01005, to be reworked without damaging neighboring components. Larger hot air systems are often unable to regulate the air flow finely enough to prevent them from melting and being pushed off the pad. The narrow nozzles and the precisely adjustable air flow in combination with the controlled temperature regulation enable the user to replace defective components in a targeted manner with the HCT2-200.
Technical data
- 200 watt ceramic heater and two-stage air pump: Provides the power needed to deliver the right amount of heat energy.
- Digital airflow and temperature control: Two LED displays provide a graphical and numerical representation of the desired airflow and temperature.
- Fast response and performance: A microprocessor-controlled closed-loop feedback system ensures fast heating, precise and stable temperature control.
- Standby mode: When the handpiece is placed on the work table, the temperature drops, which extends the service life of the heater.
- Replaceable handpiece: The handpiece has been redesigned so that it can be removed from the front of the device.
- Ergonomic and lightweight handpiece: Slim and ergonomic design of the handpiece, which feels like a pencil, with rubber grip.
- Easy replacement of heaters, nozzles and handpieces: All parts can be changed in no time at all.
- Nozzles: Six nozzles (1.5 mm - 4.0 mm) are included in the device, with a nozzle plate holder inside the work stand.
Scope of delivery
- HCT2-200-HP: Handpiece
- HCT-WS120: Work stand with nozzle holder
- HCT-HTR200: Heating unit, 200W
- HN-120KIT-6: Pack of 6 straight nozzles (Ø 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm and 4.0 mm)
- AC-CP2: Pad for removing nozzles
Additional information
| Repair stations | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
Data sheets
| TDS | PDF(265.26 KB) |
|---|
Accessories
-
CV-5210
Metcal 2-channel soldering station - CV-5210CHF 887.002 Available immediately -
BVX-201-KIT1
Metcal BVX-201-KIT1 extraction systemCHF 904.00Not in stock -
DX-250
DX-250 - Digital dosing system, 0 - 6.9 barCHF 458.006 Available immediately -
GT120-HP-T6
Metcal GT120 soldering setCHF 495.001 Available immediately -
HN-HCT2-BENT-6
Pack with 6 curved nozzlesCHF 114.602 Available immediately
Similar products
-
0052702999

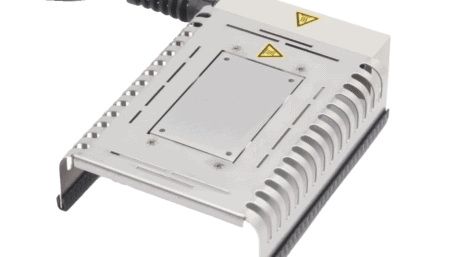

WXHP 120 Preheating plate 120 WCHF 647.501 Available immediately -
