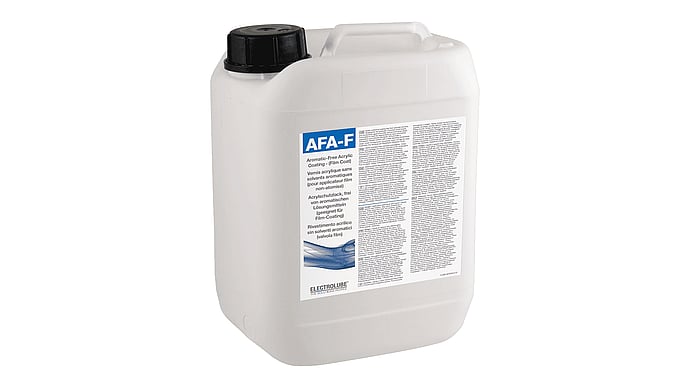

AFAF Acrylic protective lacquer without aromatic solvents 5l Bidon
Description
AFA is an optically clear protective coating, ideally suited as a protective coating for LEDs or in other industrial applications. AFA retains its optical clarity even when exposed to UV radiation for a long period of time and causes only a minimal increase in the color temperature of the coated LEDs, making it an excellent choice for the protective coating of LEDs. In addition, AFA provides excellent protection in humid environments and is flexible over a wide operating temperature range.
AFA contains a so-called UV marker that allows the PCB to be inspected. Whether after painting to ensure that the paint has been applied completely and evenly, or in the case of repairs to ensure that the coating has been removed by a solvent such as Electrolubes ULS.
AFA is also available in premixed, ready-to-use formulations. For so-called "atomizing" spray applications (AFA-S) and for so-called film coaters (AFA-F).
Technical data
- Excellent clarity, ideal for LED applications
- Excellent adhesion to a wide range of materials
- Wide operating temperature range
- Free from aromatic solvents (such as toluene and xylene)
- Excellent protection in humid environments and outstanding resistance to salt spray
- UV marker for easier control
- Approved according to UL746-QMJU2
- UL94 V-0 approved
- Meets the requirements of IPC-CC-830 and MIL-1-46058C
- RoHS compliant (2011/65/EU)
Hazard pictograms
Information:
- Prices excl. VOC (see TDS)
Additional information
| Protective coatings | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
Data sheets
| Technical data sheet_Electrolube_AFA_E | PDF(934.24 KB) |
|---|---|
| SDS-EN | PDF(205.42 KB) |
| SDS-FR | PDF(205.67 KB) |
| SDS-IT | PDF(202.02 KB) |
| SDS-GB | PDF(197.44 KB) |
