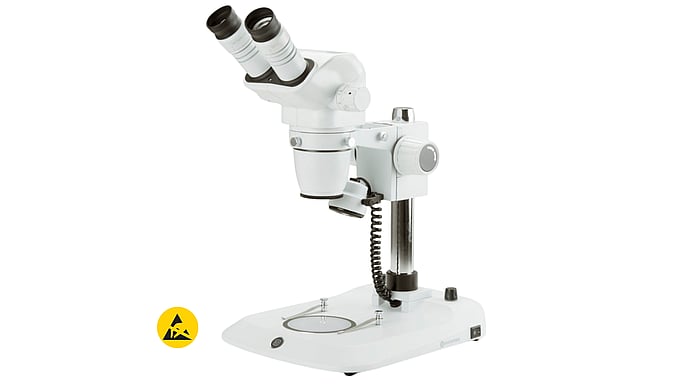

ESD stereomicroscope NexiusZoom 1902-P, binocular, 0.67-4.5, HWF10x/22mm, white
Instead of CHF 972.00CHF 874.00 excl. VAT, plus shipping costs
Description
Reliable Stereomicroscope for Precision Applications
The Euromex NZ.1902-P-ESD is a high-performance stereomicroscope designed for use in laboratories, industry, and electronics manufacturing. It delivers clear, high-contrast 3D images and is ideal for analyzing surfaces, parts, and sensitive components.
ESD-safe for sensitive electronics applications
The ESD-safe version reliably protects electronic components from electrostatic discharge. This makes this stereo zoom microscope ideal for applications in electronics manufacturing, repair, and quality control.
Precise work with a stable stand
The column stand provides a stable base for precise examinations and allows for comfortable work. Combined with a zoom range of 0.67x to 4.5x, the microscope is suitable for a wide range of applications. The trinocular head also allows for the connection of a camera.
Technical data
- Eyepieces: WF 10x/22 mm, with diopter adjustment
- Head: Trinocular head, tilted 45°, adjustable interpupillary distance
- Lens: Zoom 0.67x – 4.5x
- ESD: ESD-safe design
- Tripod: Column tripod (ESD-compliant)
- Appearance: Treated with an antifungal agent
- Field of view from 33 mm to 4.9 mm
- Working distance: 110 mm
Scope of delivery
- Trinocular microscope head, tilted at 45°, with adjustable interpupillary distance
- Zoom lens 0.67x – 4.5x
- WF 10x/22 mm eyepieces (1 pair)
- ESD column stand with base plate
Additional information
| Inspection systems | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
| LEDs | ||||||||
|
|
||||||||
Data sheets
| TDS Nexius Zoom-German | PDF(6.09 MB) |
|---|---|
| NexiusZoom-EVO-ESD_fiche_technique_Francaise | PDF(6.1 MB) |
| NexiusZoom-EVO-ESD_product_datasheet_English | PDF(6.09 MB) |
| NexiusZoom-EVO-ESD_scheda_tecnica_Italiano | PDF(6.08 MB) |
| Manual - EN | PDF(2.73 MB) |
| Manual - FR | PDF(2.65 MB) |
| Manual - IT | PDF(2.59 MB) |
| Manual - ENG | PDF(1.7 MB) |
| NZ - Stands | PDF(6.55 MB) |
Accessories
-
NZ.8903
Attachment lens NZ.8903, 0.3x magnification, 287 mm distance for NexiusZoomCHF 155.00Available to order -
NZ.8904
Attachment lens NZ.8904, 0.4x magnification, 220 mm distance for NexiusZoomCHF 155.002 Available immediately -
NZ.8905
Attachment lens NZ.8905, 0.5x magnification, 183 mm distance for NexiusZoomCHF 155.001 Available immediately -
NZ.8907
Attachment lens NZ.8907, 0.75x magnification, 105 mm distance for NexiusZoomCHF 165.00Available to order -
NZ.8915
Attachment lens NZ.8915, 1.5x magnification, 53 mm distance for NexiusZoomCHF 165.00Available to order -
NZ.8920
Attachment lens NZ.8920, 2.0x magnification, 34 mm distance for NexiusZoomCHF 185.00Available to order
