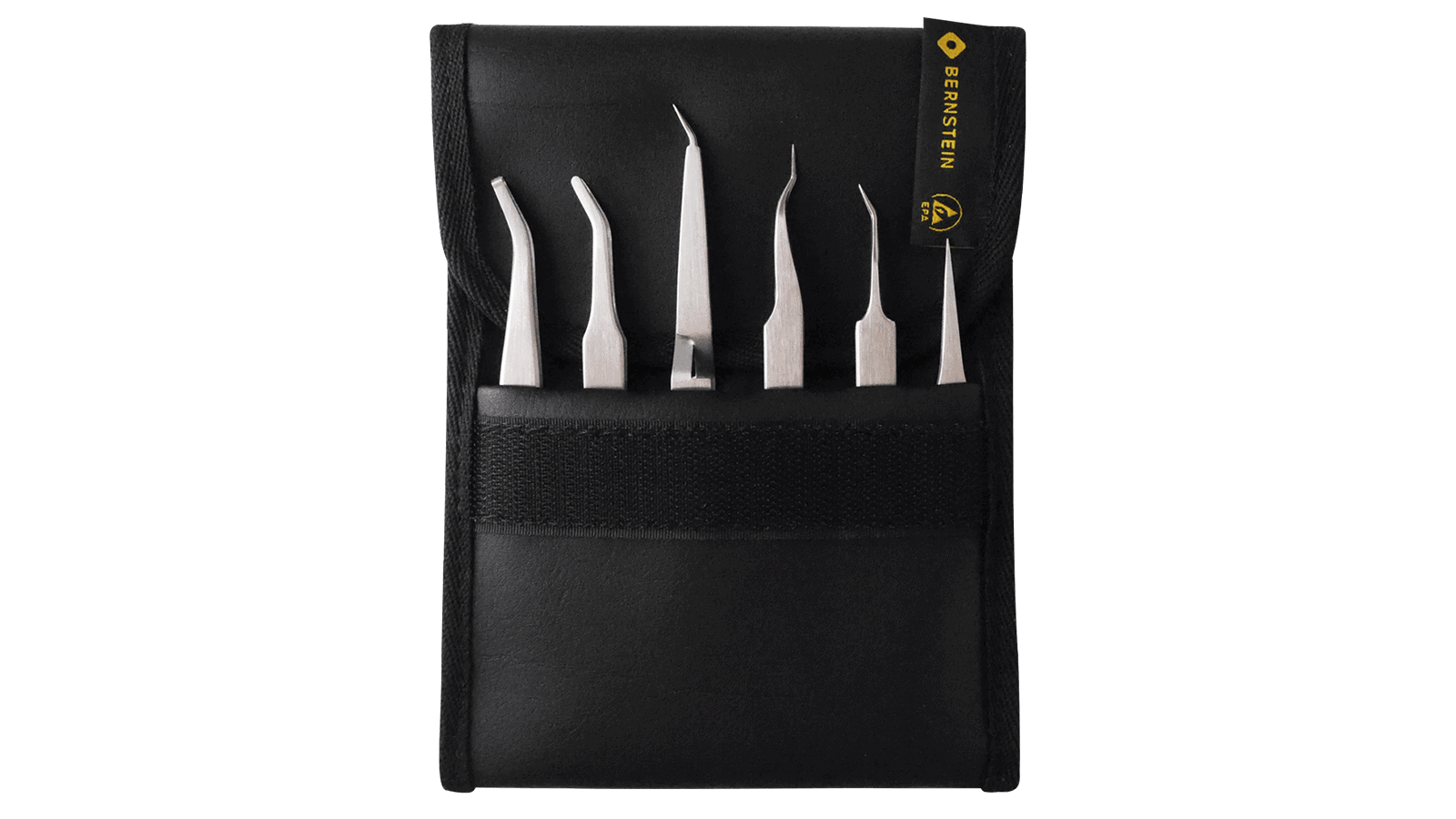

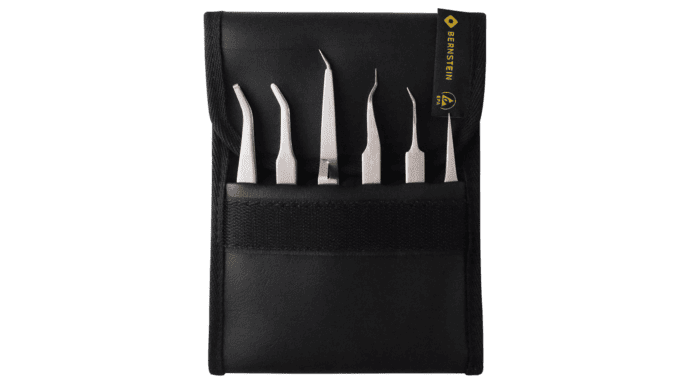

SMD tweezers set 6 pcs (incl. bag)
CHF 75.40 excl. VAT, plus shipping costs
Description
Tweezers for SMD/THT technology, for gripping parts and components such as mini MELFs, diodes, resistors or precise holding of filigree wires.
100% stainless steel antimagnetic, rustproof and acid-resistant, reflection-free matt fine polished. Stainless steel, stainless austenitic chromium-nickel quality steel with low carbon content, for good corrosion resistance (not seawater resistant). Case consisting of ESD imitation leather, EPA suitable for electrostatically protected areas (ESD workplace/ESD protection zone complies with standard DIN EN 61340-5-1), dissipative 10^6 Ohm. The synthetic leather is flame-retardant, biocompatible and contains a dissipative Velcro strip to prevent static charge when opening.
Technical data
- Material stainless steel SA
- Storage in leatherette bag
- Dimensions 130 x 140 x 20 mm
- Weight 135 g

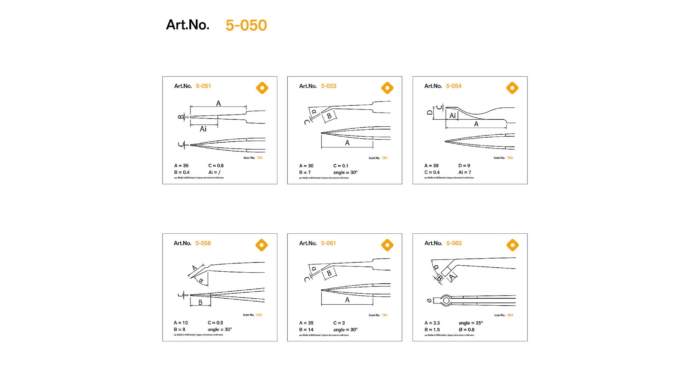

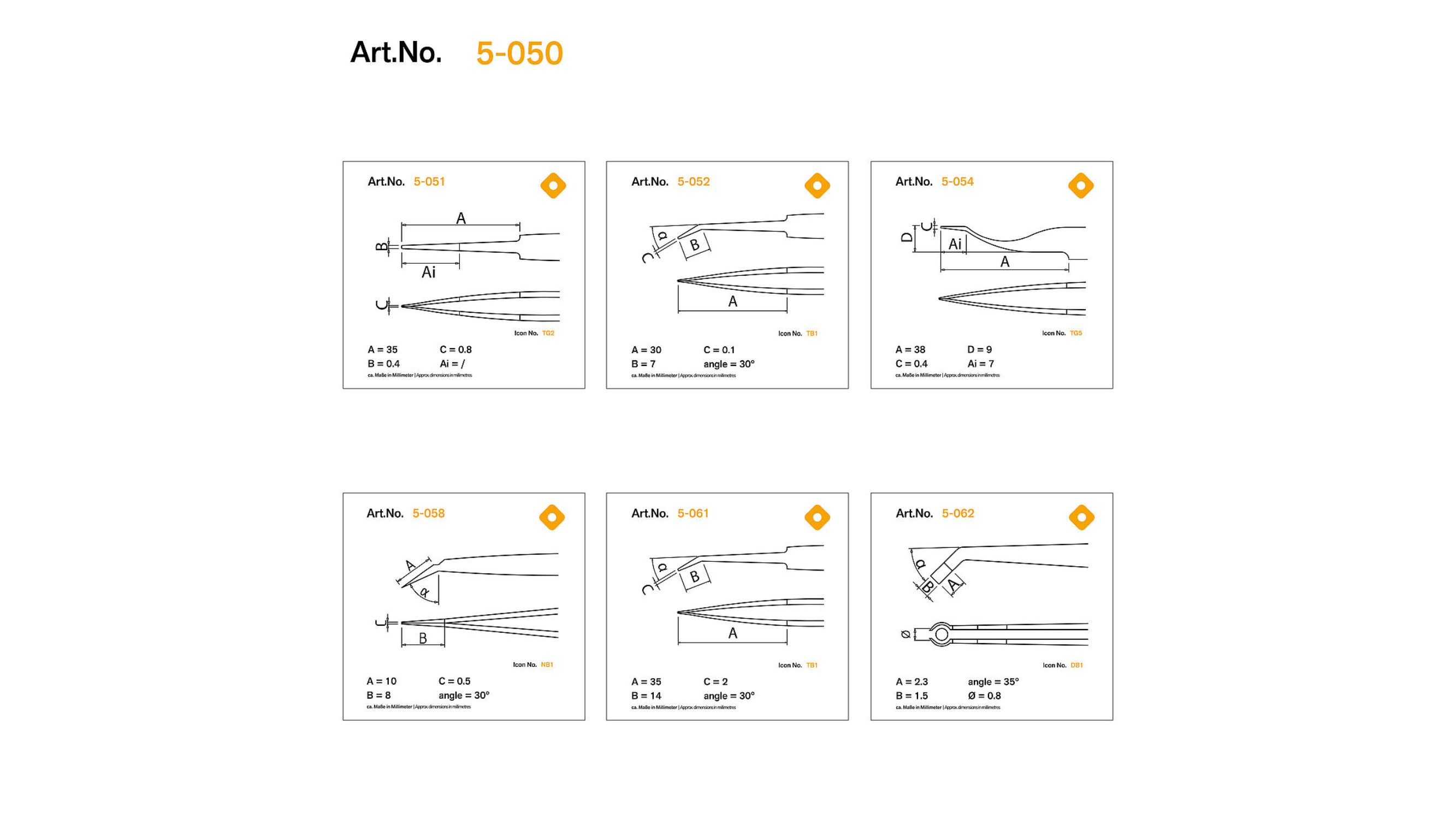

SCOPE OF DELIVERY
- 5-050-0 Imitation leather case 6 empty compartments
- 5-051 SMD tweezers 120 mm shape 2 stainless steel
- 5-052 SMD tweezers 110 mm shape 5b stainless steel angle 30°
- 5-054 SMD tweezers 120 mm shape 7abb stainless steel very pointed
- 5-058 Cross tweezers 120 mm shape 53c stainless steel self-holding
- 5-061 SMD tweezers 115 mm shape 2ab stainless steel angle 30°
- 5-062 SMD tweezers 115 mm shape 59 stainless steel angle 35°
Additional information
| Tweezers | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
| LEDs | ||||||||
|
|
||||||||
| Tool sets | ||||||||
|
||||||||
Data sheets
| TDS-EN | PDF(654.63 KB) |
|---|---|
| TDS-EN | PDF(653.06 KB) |
| Tweezers-EN | PDF(13.06 MB) |
| Brochure-Tweezers-EN | PDF(13.05 MB) |
