Tweezers

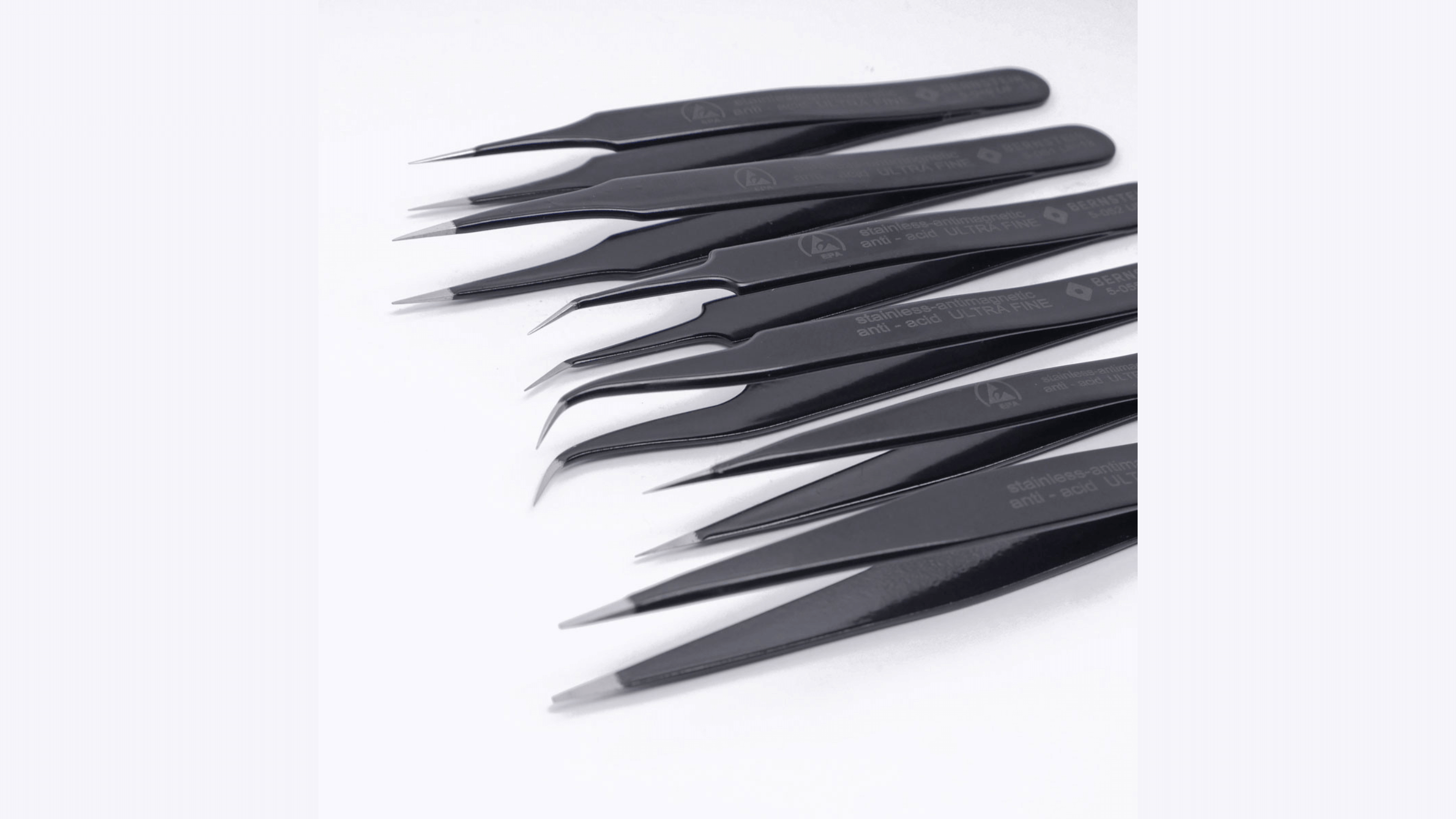

ESD SMD tweezers set ULTRA FINE 6 pcs.
CHF 125.70 excl. VAT, plus shipping costs
Item no:
5-070-UF-13
In stock: Available to order
Estimated delivery time:
2 weeks
Description
For precise gripping, holding and positioning work in laboratories, on test equipment, especially under the microscope. With a tip dimension of 0.2 mm with a tolerance of +/-0.05, also suitable for equipping robot technology (pick-and-place), for repeatable adjustment.
Technical data
- Tip thickness 0.2 mm (+/-0.05 tolerance)
- Material stainless steel SA
- Matt polished surface, smooth and glare-free
- ESD coating conductive between 10^6 to 10^9 Ohm
- Dimensions 130 x 140 x 20 mm
- Weight 150 g

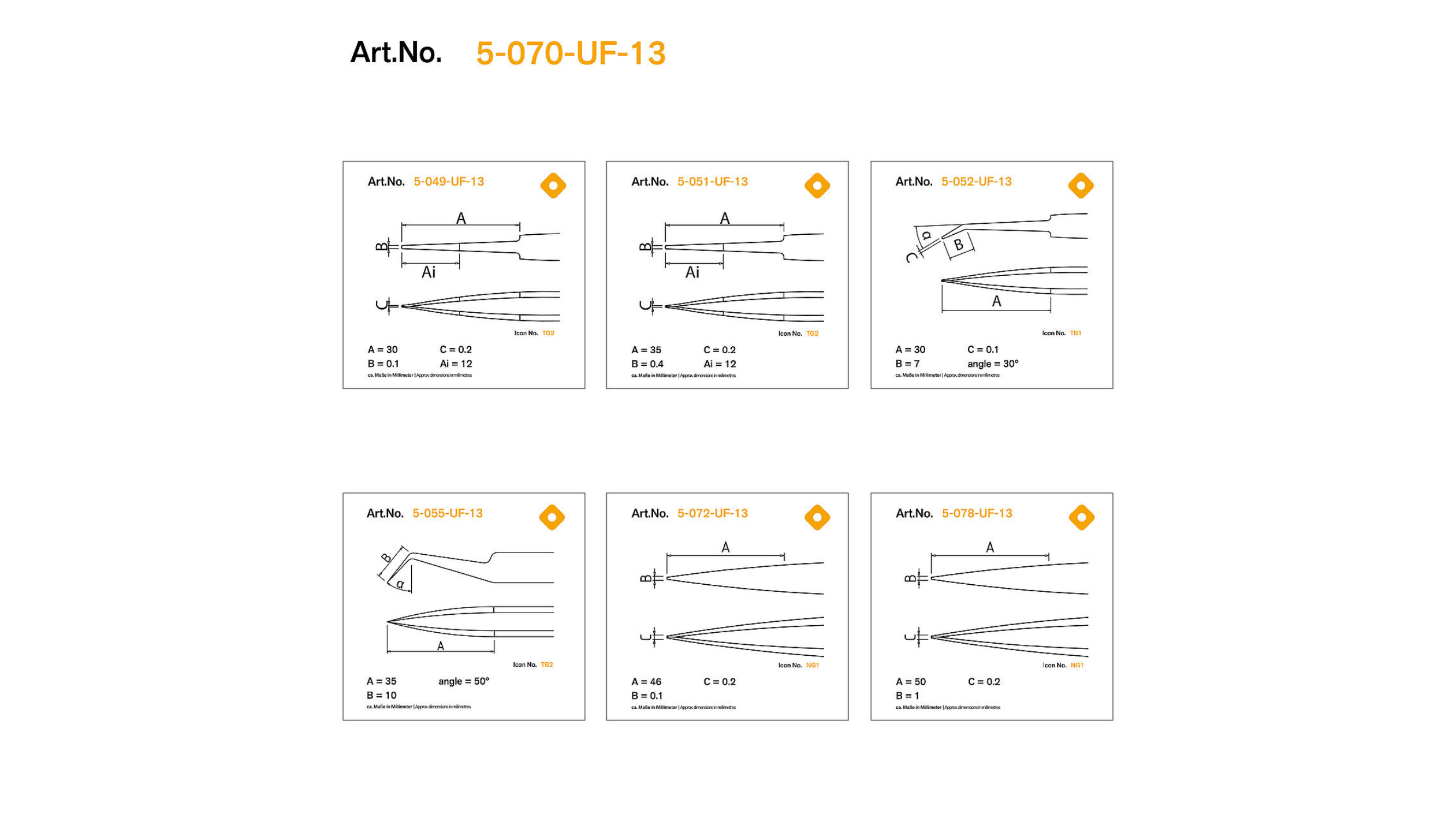

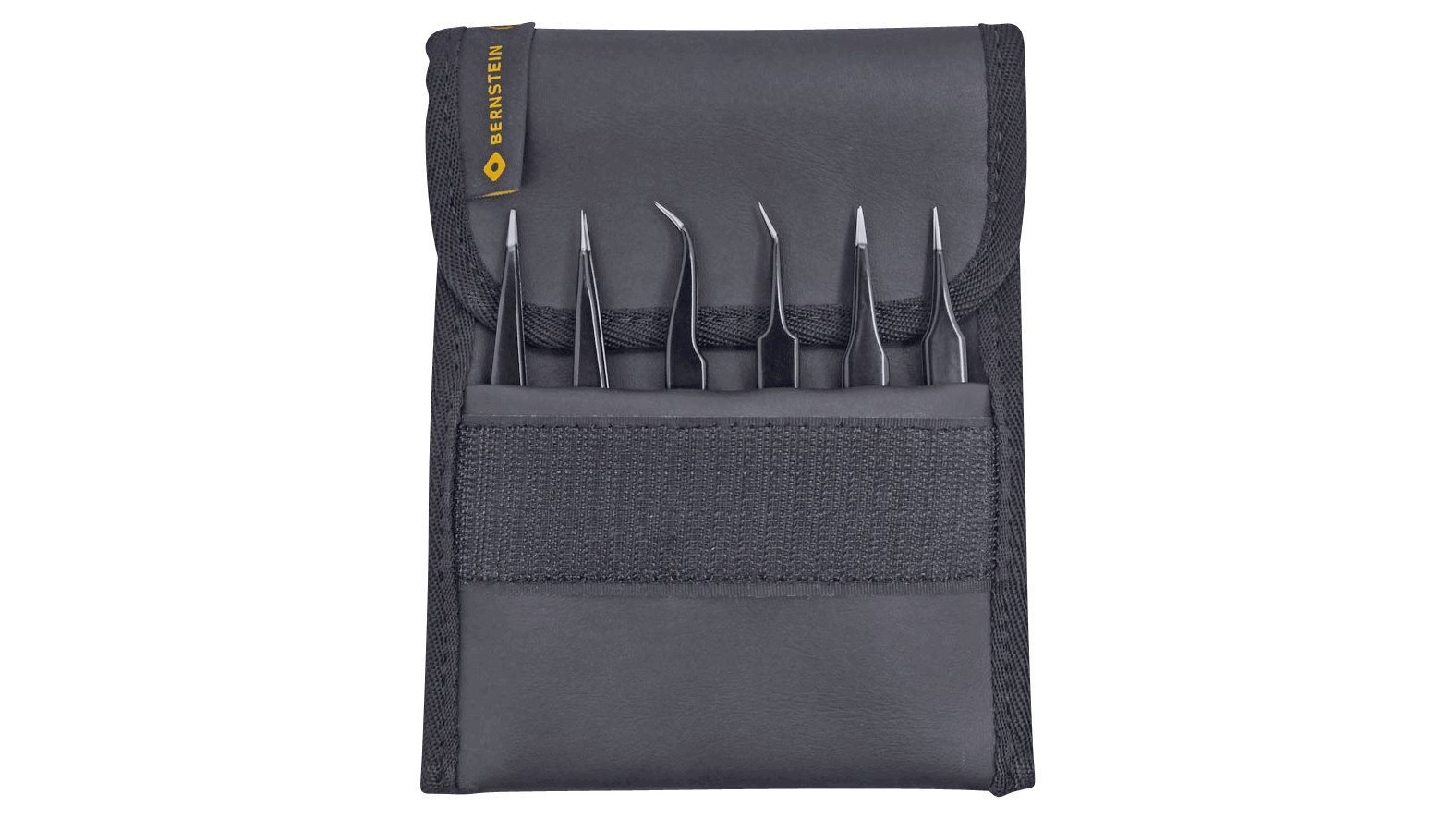

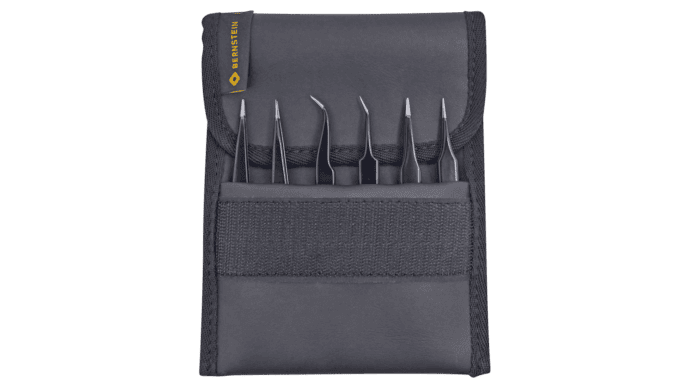

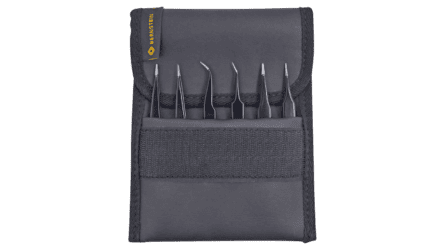

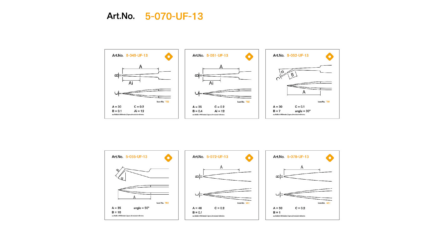

SCOPE OF DELIVERY
- 5-060-0-ESD dissipative case 6 empty compartments
- 5-049-UF-13: ESD SMD tweezers ULTRA FINE 110 mm shape 4 stainless steel very sharp dissipative
- 5-051-UF-13: ESD SMD tweezers ULTRA FINE 120 mm shape 2 stainless steel very sharp dissipative
- 5-052-UF-13: ESD SMD tweezers ULTRA FINE 110 mm shape 5b stainless steel 30° very sharp dissipative
- 5-055-UF-13: ESD SMD tweezers ULTRA FINE 120 mm shape 7a stainless steel 40° very sharp dissipative
- 5-072-UF-13: ESD SMD tweezers ULTRA FINE 110 mm shape 3c stainless steel very sharp dissipative
- 5-078-UF-13: ESD SMD tweezers ULTRA FINE 130 mm shape PSF stainless steel very sharp dissipative
Additional information
| Tweezers | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
| LEDs | ||||||||
|
|
||||||||
| Tool sets | ||||||||
|
||||||||
Data sheets
| TDS-EN | PDF(635.89 KB) |
|---|---|
| TDS-EN | PDF(634.54 KB) |
| Tweezers-EN | PDF(13.06 MB) |
| Pliers-Catalog-EN | PDF(9.61 MB) |
