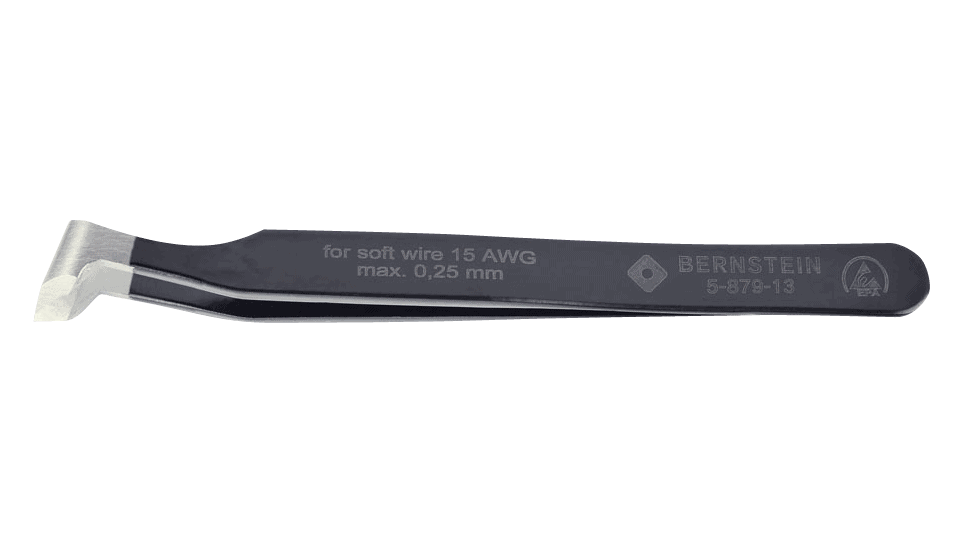

ESD cutting tweezers (flush) 115mm shape 15 AP, dissipative
CHF 29.70 excl. VAT, plus shipping costs
Description
High-quality cutting tweezers made of carbon steel. Ideally suited for soft copper wire, gold and silver wire up to Ø 0.25 mm. The cutting edges are particularly sharp and hard for flush cutting. With ESD coating we achieve a discharge resistance of 10^6 to 10^9 Ohm, article without ESD coating 5-879.
Care instructions: High humidity or touching with fingers (sweat) causes carbon steel to rust. For this reason, the tweezers should always be kept dry or rubbed with oil if stored for long periods. If rust forms on the blade despite this, it can be easily removed with a light sharpening.
Technical data
- for soft wires up to Ø 0.25 mm (copper wire, gold wire, silver wire, etc.)
- for flush cutting, cutting edge width 10 mm, very sturdy
- Extremely hard and sharp, optimum sharpness of the cutting edges
- Form 15 AP
- Material Carbon steel, not anti-magnetic
- Matt polished surface, smooth and glare-free
- ESD coating dissipative between 10^6 and 10^9 Ohm
- Please follow the care instructions
- Total length 115 mm
- Weight 25 g
