ESD tool set ELITE 20 pcs
CHF 333.10 excl. VAT, plus shipping costs
Description

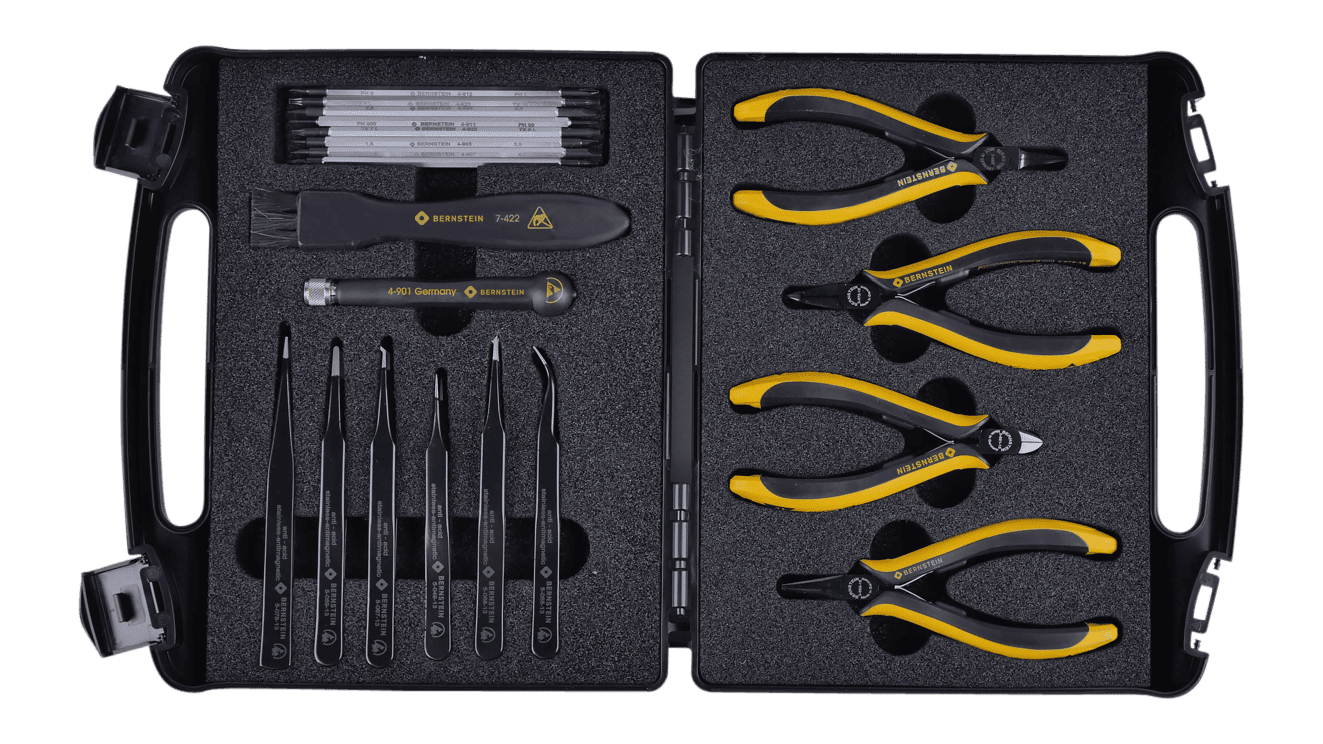

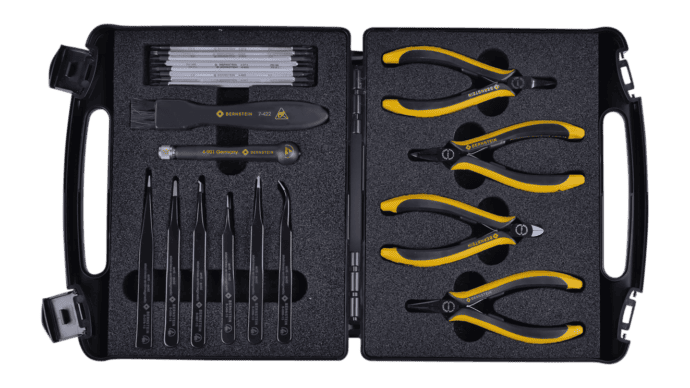

EPA suitable for electrostatically protected areas (ESD workplace/ESD protection zone). ESD conductive tool sets for a wide range of work in ESD areas. The tools are housed in handy ESD-safe plastic cases and are clearly arranged in dimensionally accurate recesses made of conductive hard foam.
ESD tool set for working on electronic assemblies and devices in accordance with DIN EN 61340-5-1. The tweezers are used for precise gripping, inserting and holding small electronic components. They are equipped with horizontal, smooth and curved gripping surfaces. The pliers have particularly narrow and pointed pliers heads for precise work in tight spaces. The side cutter is suitable for cutting soft and medium-hard wires, please note the cutting values. The quality interchangeable blades (HRC 56-58) can be quickly clamped in the conductive ESD handle. The dissipative brush is used to clean components at risk of static discharge.
Technical data
- with pliers from the EUROline series
- for working on electronic components or devices
- for work in the protected area
- according to standard DIN EN 61340-5-1
- Dissipative tools 10^6 to 10^9 Ohm
- Conductive plastic case 10^2 to 10^5 Ohm
- Precisely fitting conductive foam insert
- Opening angle 180°
- Dimensions 250 x 210 x 60 mm
- Weight 850 g
SCOPE OF DELIVERY
- 2231 ESD conductive plastic case with foam insert empty
- 3-651-15 ESD Mini diagonal cutters EUROline Mini-Wate 120 mm
- 3-672-15 ESD tip cutter EUROline Mini-Wate 130 mm
- 3-682-15 ESD flat nose pliers EUROline smooth gripping surfaces 130 mm
- 3-683-15 ESD needle nose pliers EUROline smooth gripping surfaces 130 mm
- 4-901 ESD handle for interchangeable blades
- 4-905 Interchangeable blade slot 1.5/3.0 mm
- 4-906 Interchangeable blade slot 2.0/3.5 mm
- 4-907 Interchangeable blade slot 2.5/4.0 mm
- 4-911 Interchangeable blade PH00/PH000
- 4-912 Interchangeable blade PH0/PH1
- 4-921 Interchangeable blade TORX T5/T6
- 4-922-L Interchangeable blade TORX T7/T8
- 4-923-L Interchangeable blade TORX T9/T10
- 5-049-13 ESD SMD tweezers 110 mm shape 4 stainless steel dissipative
- 5-055-13 ESD SMD tweezers 120 mm shape 7a stainless steel angle 40° dissipative
- 5-059-13 ESD SMD tweezers 120 mm shape 2a stainless steel dissipative
- 5-067-13 ESD SMD tweezers 120 mm shape 12 stainless steel angle 45° dissipative
- 5-068-13 ESD tweezers 120 mm shape 13 stainless steel angle 45° dissipative
- 5-078-13 ESD SMD universal tweezers 130 mm shape PSF stainless steel dissipative
- 7-422 ESD brush Bristle width 20 mm
