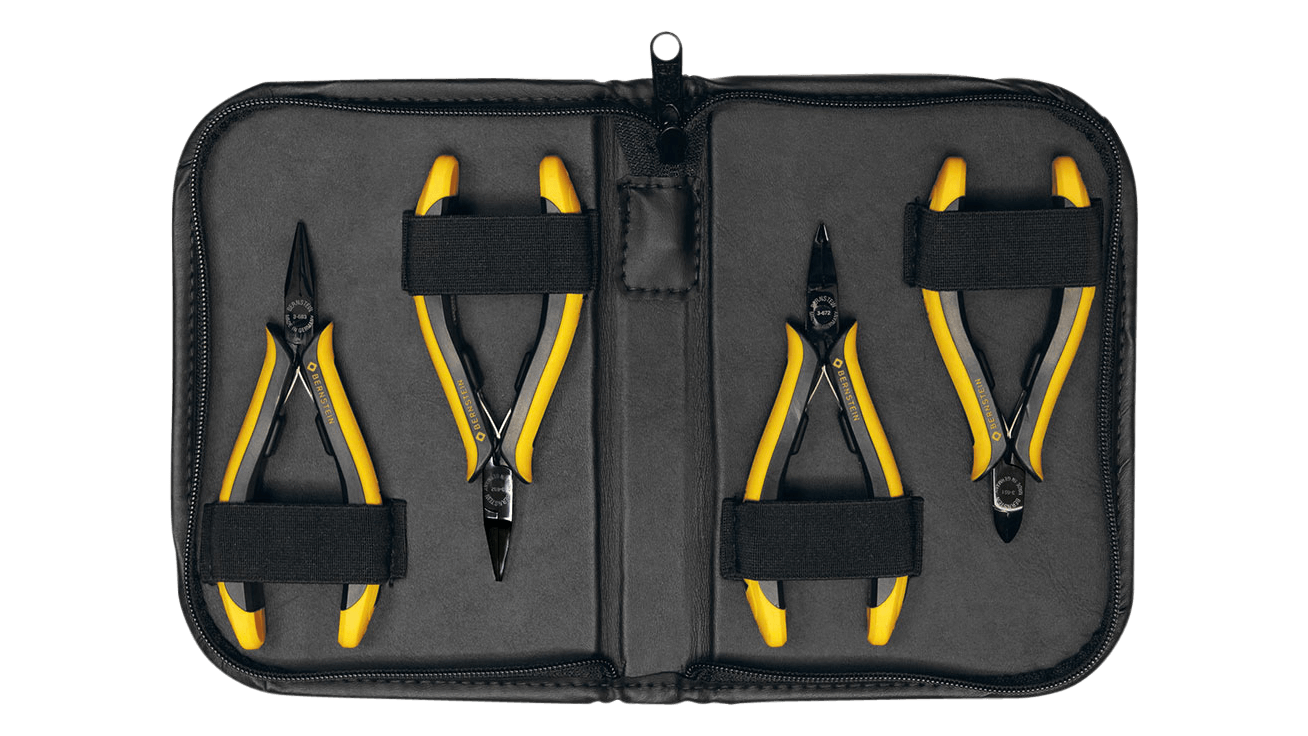

ESD pliers set EUROline 4-piece (incl. ESD bag)
CHF 207.40 excl. VAT, plus shipping costs
Description
ESD mini diagonal cutters & tip cutters with special burnishing - professional tools for electrostatically protected areas
Manufactured from special tool steel, highly polished black finish and with box joint. Equipped with a dissipative 2-component hand protection cover and replaceable double leaf spring. The pliers have been successfully tested by several test laboratories in accordance with DIN EN 61340-5-1, 61340-2-1 and 61340-2-3 for use in ESD-protected areas.
Ideal for: Electronics assembly, precision mechanics, ESD-protected workstations and precision cutting work.
Technical data
- Diagonal cutters with bevel - cutting values Ø (soft/medium/hard/piano): 1.5 / 0.8 / 0 / 0 mm
- Tip cutter with bevel - cutting values Ø (soft/medium/hard/piano): 0.8 / 0.6 / 0 / 0 mm
- Head width: approx. 10 mm
- Material: quality steel (HRC 54-58)
- Surface: special burnished finish, glare-free
- Handle: 2-component ESD plastic, ergonomically shaped, dissipative between 10⁶ and 10⁹ ohms
- Packaging: dissipative zipper bag
- Dimensions: 190 × 135 × 35 mm
- Weight: 355 g
Scope of delivery
- 3-680-0: ESD dissipative zippered pocket 4 empty compartments
- 3-651-15: ESD mini diagonal cutters EUROline Mini-Wate 120 mm
- 3-672-15: ESD tip cutter EUROline Mini-Wate 130 mm
- 3-682-15: ESD flat nose pliers EUROline smooth gripping surfaces 130 mm
- 3-683-15: ESD needle nose pliers EUROline smooth gripping surfaces 130 mm
Additional information
| Tailor | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
|
||||||
| Tool sets | ||||||
|
||||||
Data sheets
| Pliers catalog-DE | PDF(9.64 MB) |
|---|---|
| Pliers Catalog-EN | PDF(9.61 MB) |
