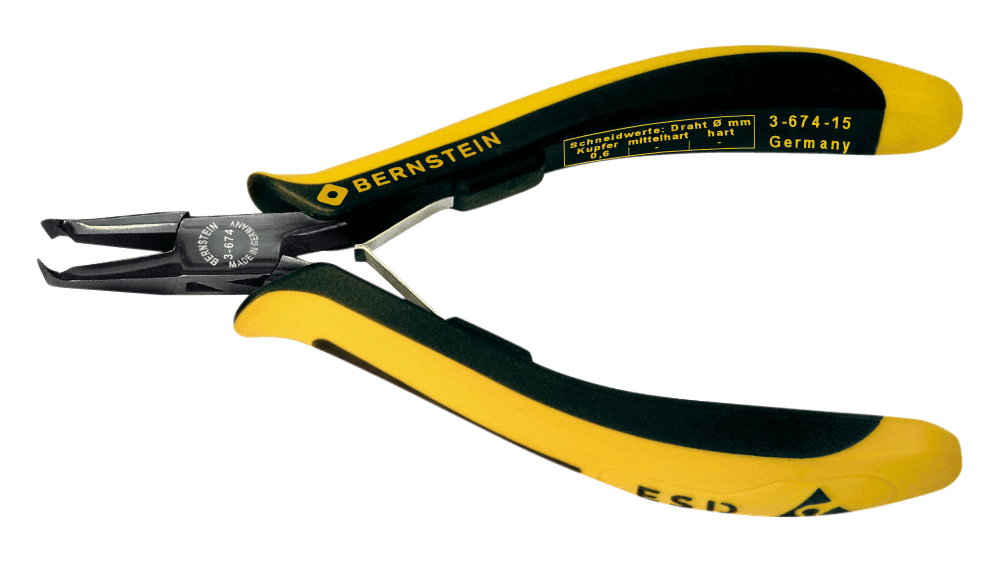

ESD end cutter EUROline dissipative 130 mm outside cutting edge Mini-Wate

Name: BERNSTEIN - ESD end cutter EUROline dissipative 130 mm outside cutting edge Mini-Wate
Brand: BERNSTEIN
SKU: 3-674-15
Price: 64.40 CHF
Availability: InStock

CHF 64.40 excl. VAT, plus shipping costs

Item no: 3-674-15

In stock: Available to order

Estimated delivery time: 2 weeks

Recommend:

Delivery time request Print PDF

Description

Made of special tool steel, highly polished burnished, box joint, with dissipative 2-component hand protection cover and replaceable double leaf spring. The pliers in this range have been successfully tested by several test laboratories in accordance with DIN EN 61340-5-1, 61340-2-1 and 61340-2-3 for work in ESD-protected areas.

For flush cutting, for horizontal and vertical use. The pliers in this range have been successfully tested by several test laboratories in accordance with DIN EN 61340-5-1, 61340-2-1 and 61340-2-3 for work in ESD-protected areas.

Technical data

Mini-Wate (cut with small tip)
Cutting value soft/medium/hard/piano Ø in mm: 0.8/0.6/0/0
Head width 10 mm
Cutting edge length 5 mm, angled at 20°, jaw length 20 mm
Material Quality steel (HRC 56-58)
High-gloss burnished surface
2-component ESD plastic handle, ergonomically shaped, dissipative between 10^6 and 10^9 Ohm
Total length 130 mm
Weight 60 g

Additional information

Tailor

Cut type	With bevel (pyramid-shaped cut)
Max. Cutting capacity - copper wire (mm)	0.8
Max. Cutting ability - medium hardness (mm)	0.6
Head width (mm)	10
Length of the cutting edges (mm)	5
Total length (mm)	130
Weight (g)	60
Manufacturer	BERNSTEIN
Sets	No
ESD safe	Yes
