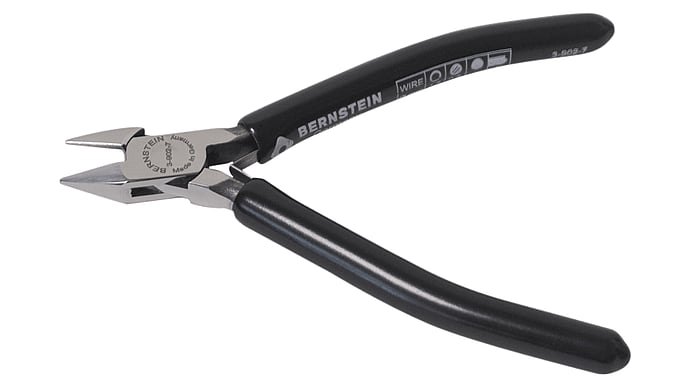

ESD side cutter BLACKline dissipative 120 mm Mini-Wate

Name: BERNSTEIN - ESD diagonal cutters BLACKline dissipative 120 mm Mini-Wate
Brand: BERNSTEIN
SKU: 3-902-7
Price: 33.30 CHF
Availability: InStock

CHF 33.30 excl. VAT, plus shipping costs

Item no: 3-902-7

In stock: Available to order

Estimated delivery time: 2 weeks

Recommend:

Delivery time request Print PDF

Description

BLACKline pliers are characterized by their dip-insulated slim handles. The highly polished surface and the inlaid thread guarantee a long service life with good care. The very narrow pliers heads are ideal for working on delicate components.

The pliers in this range have been successfully tested by several test laboratories in accordance with DIN EN 61340-5-1, 61340-2-1 and 61340-2-3 for work in ESD-protected areas. Manufactured from special tool steel, mirror-polished, box joint, with dissipative dip insulation and double leaf spring.

Technical data

Mini-Wate (cut with small tip)
Cutting value soft/medium/hard/piano Ø in mm: 1.5/0.8/0/0
Head width 12 mm
Cutting edge length 10 mm
Material Quality steel (HRC 56-58)
High-gloss steel polished surface
Handle dip insulation ESD non-slip, dissipative 3×10^7 Ohm
Total length 120 mm
Weight 65 g

Additional information

Tailor

Cut type	With bevel (pyramid-shaped cut)
Max. Cutting capacity - copper wire (mm)	1.5
Max. Cutting ability - medium hardness (mm)	0.8
Head width (mm)	12
Length of the cutting edges (mm)	10
Total length (mm)	120
Weight (g)	65
Manufacturer	BERNSTEIN
Sets	No
ESD safe	Yes
