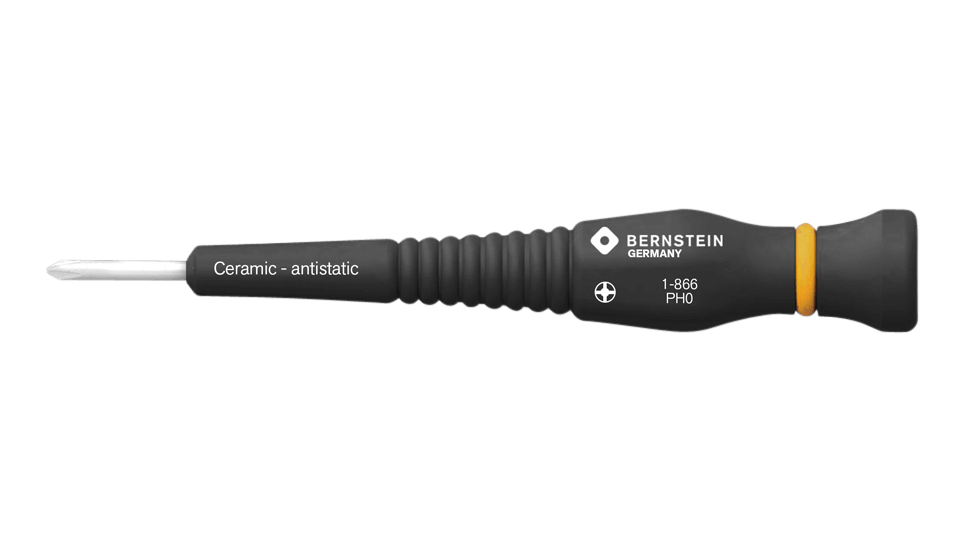

Ceramic adjustment screwdriver Phillips PH0 Trimmer
CHF 16.90 excl. VAT, plus shipping costs
Description
Alignment tools for the ESD area. Ceramic bits meet the highest requirements due to their excellent mechanical and thermal properties. The hardness and fracture resistance of the zirconium oxide material enable the production and use of even the smallest dimensions with the greatest possible wear resistance. Adjustment tools in use, a large number of electrical and electronic devices or assemblies have to be adjusted or set after the manufacturing process. Even when servicing and installing new components or when electrical values have changed due to ageing, adjustment is usually necessary to restore optimum device function. We offer adjustment tools made of different materials for the various areas of application. In the field of ceramics, we also manufacture special shapes on customer request in addition to many standard blades. Contact us and we will support you in implementing your ideas.
Zirconium oxide is a highly wear-resistant ceramic (zirconium), tetragonal ZrO2, Y2O3, partially stabilized. Physical properties at room temperature: flexural strength 800N/mm², modulus of elasticity 2x105N/mm², density 6.05g/cm³, hardness 1350HV, application range up to 800°C, coefficient of thermal expansion 10×10-6 K-1, thermal conductivity 2W/mK, electrical resistance insulating.
Technical data
- Trimmer for easy and safe adjustment of spindle resistors and potentiometers (potentiometer)
- 1-component ESD handle with rotating cap dissipative between 10^6 and 10^9 Ohm
- Blade length 20 mm
- Blades Ø 3 mm
- Blade PH 0
- Material zirconium oxide, technical ceramic
- antimagnetic
- Total length 100 mm
- Weight 10 g
Additional information
| Screwdriver | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||
| LEDs | ||||||||||||||||||||
|
|
||||||||||||||||||||
Data sheets
| Catalog | PDF(3.45 MB) |
|---|
