Flux

500-6B Flux pen 10ml

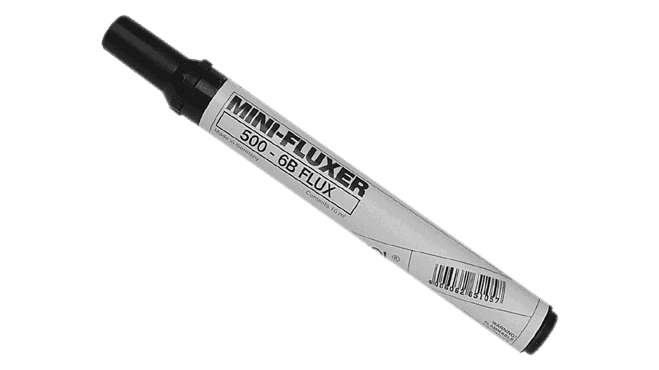

Name: STANNOL - 500-6B Flux pen 10ml
Brand: STANNOL
SKU: 165105
Price: 12.50 CHF
Availability: InStock

CHF 12.50 excl. VAT, plus shipping costs

Item no: 165105

In stock:14 Available immediately

Recommend:

Delivery time request Print PDF

Description

Halogen-free activated flux according to DIN J-STD-004B type ROL0.

Stannol 500-6B has very good wetting properties with lead-free and lead-containing alloys and, thanks to its special resin composition, is immediately tack-free after cooling. The halogen-free resin residues result in a high surface insulation resistance. A subsequent cleaning process is therefore not necessary. The hard residues improve the adhesion of applied protective coatings. Connecting parts made of brass or bronze, which can usually only be soldered with flux type F-SW26, can also be soldered well with Stannol 500-6B flux.

Technical data

Halogen-free activated
No-Clean
Very good wetting properties
Flux type ROL0 (EN 61190-1-1) / 1.1.3.A (DIN-EN 29454-1)
Ideal for reworking and repairs

Hazard pictograms

Additional information

Flux

Manufacturer	STANNOL
Halogen-free	Yes
Flux	ROL0
Container	Pen
Container size (ml)	10

LEDs

Data sheets

Technical data sheet_500-6B_EN	PDF(64.04 KB)
Main catalog_EN	PDF(8.18 MB)
MSDS	PDF(427.86 KB)
