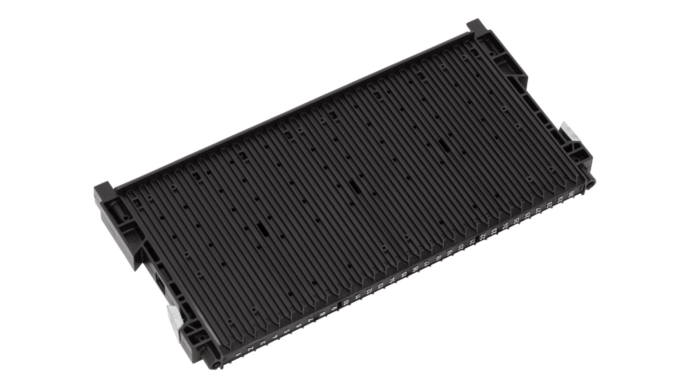

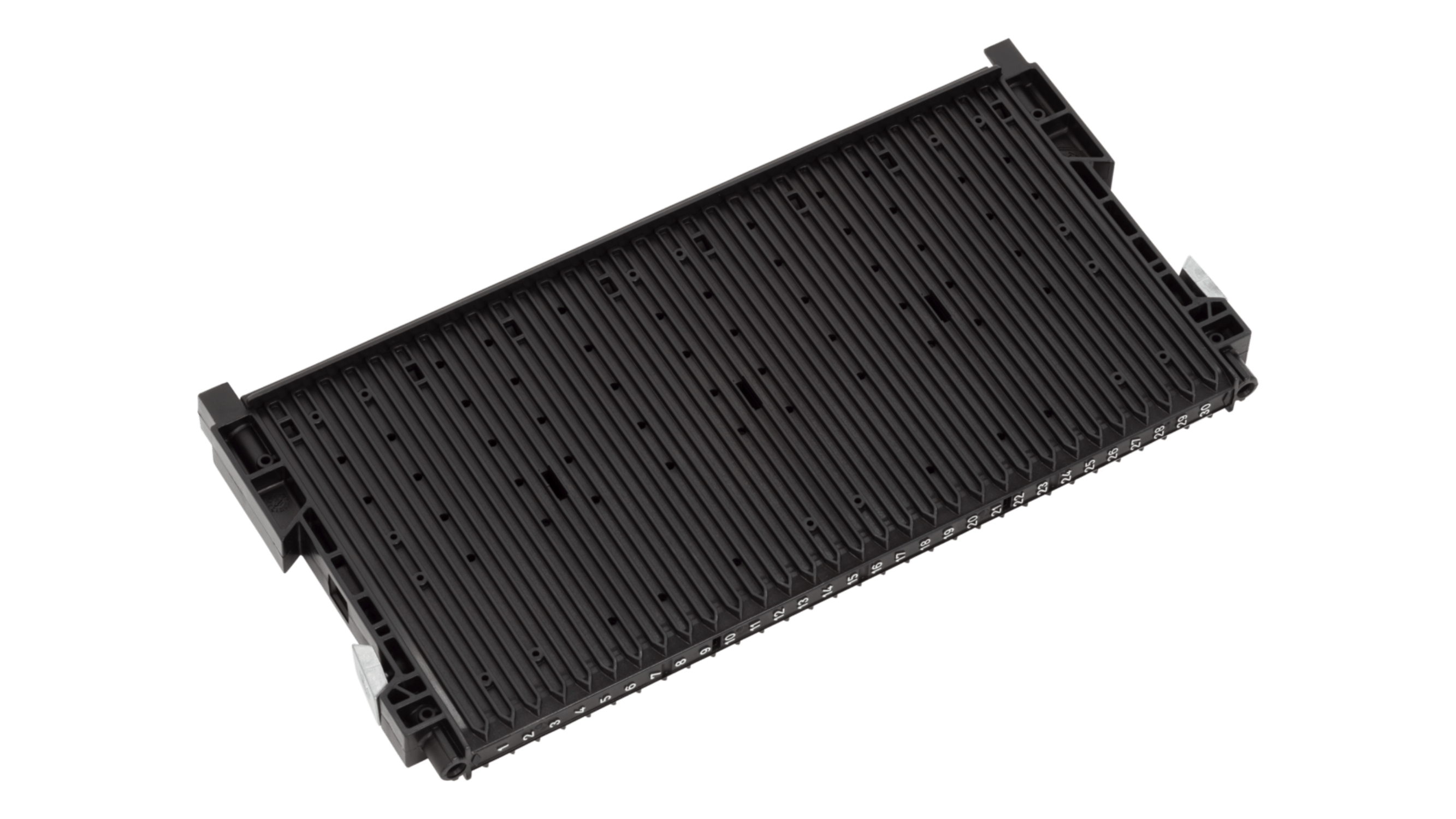

RACK-SYSTEM 180 RS - ESD slotted wall 400 with floor stop type32 355×22/32×180

CHF 18.60 excl. VAT, plus shipping costs

Item no: 1004295
In stock: Available to order
Wish listWish list
Wish list
Questions
Delivery time request  Print PDF

Description

  • Rack type 400
  • For container size 400 x 300 mm with rack position lengthwise.
  • The matching rack profile rail measures 256 mm.
  • The maximum PCB insertion dimension is 220 mm.
  • The maximum number of circuit boards is 30.
  • or:
  • Container size 600 x 400 mm with transverse rack position.
  • The matching rack profile rail measures 556 mm.
  • The maximum PCB insertion dimension is 520 mm.
  • The maximum number of circuit boards is 30.

Dimensions of the grooves:

  • Width = 3.50 mm
  • Depth = 2.50 mm
  • Pitch = 10.16 mm

Technical data

  • External dimensions: 355×22/32×180 mm
  • Weight: 537 g
  • Material: PP
  • Color: black ESD
  • with floor stop type 32
  • unreinforced
  • Number of grooves: 30
