ESD products

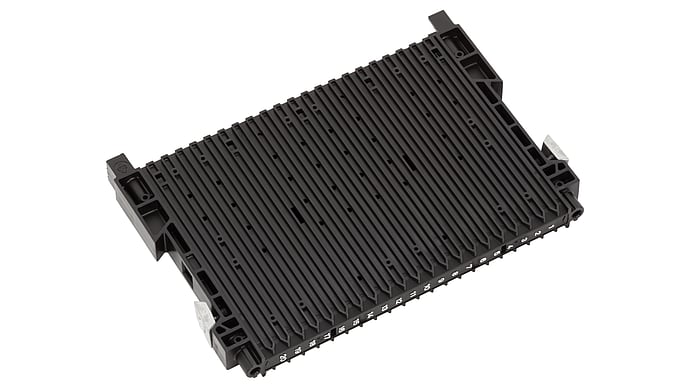

RACK-SYSTEM 180 RS - ESD slotted wall 300 with floor stop type22 255x22x180
CHF 17.40 excl. VAT, plus shipping costs
Item no:
1004208
In stock: Available to order
Description
- Rack type 300
- For container size 400 x 300 mm with transverse rack position.
- The matching rack profile rail measures 356 mm.
- The maximum PCB insertion dimension is 320 mm.
- The maximum number of PCBs is 20.
Dimensions of the grooves:
- Width = 3.50 mm
- Depth = 2.50 mm
- Pitch = 10.16 mm
Technical data
- External dimensions: 255x22x180 mm
- Weight: 406 g
- Material: PP
- Color: black ESD
- with floor stop type 22
- unreinforced
- Number of grooves: 20
