ESD mats

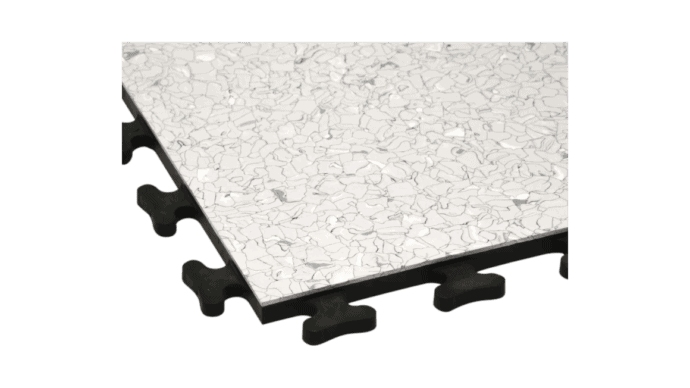

ESD PVC puzzle flooring, 608 x 608 x 10.5 mm, pack of 5
CHF 405.00 excl. VAT, plus shipping costs
Item no:
n. a.
Estimated delivery time:
2 weeks
Description
The ESD puzzle floor combines the unique advantages of highly conductive, compact and non-porous ESD floor coverings and also offers a great deal of flexibility thanks to the dovetail connection system, which enables loose laying on any existing floor surface.
Technical data
- Dimensions: 608 x 608 x 10.5 mm
- Typical leakage resistance Rgp =104 -106 Ohm
- Two-layer PVC floor covering in tile form
- For example, for the subsequent refurbishment of ESD-relevant areas
- Loosely laid, with maximum safety to avoid electrostatic discharge.
- Loads. Suitable for the man-shoe-floor system (IEC 61340-4-5).
- Loose laying during operation and immediately accessible
- Can also be laid on problematic surfaces thanks to its honeycomb structure, e.g. in the case of increased residual moisture, soiling, etc.
- Permanent value retention thanks to 100% repairability
- Suitable for chair castors
- PU: 5 pieces / 1.85m²
Additional information
| ESD mats | ||||
|---|---|---|---|---|
|
||||
| LEDs | ||||
|
|
||||
Data sheets
| TD ESD Puzzle Floor | PDF(115.93 KB) |
|---|---|
| Technical specifications ESD puzzle floor | PDF(125.68 KB) |
| Compressive loads puzzle floor | PDF(100.64 KB) |
| Care instructions for puzzle flooring | PDF(64.94 KB) |
