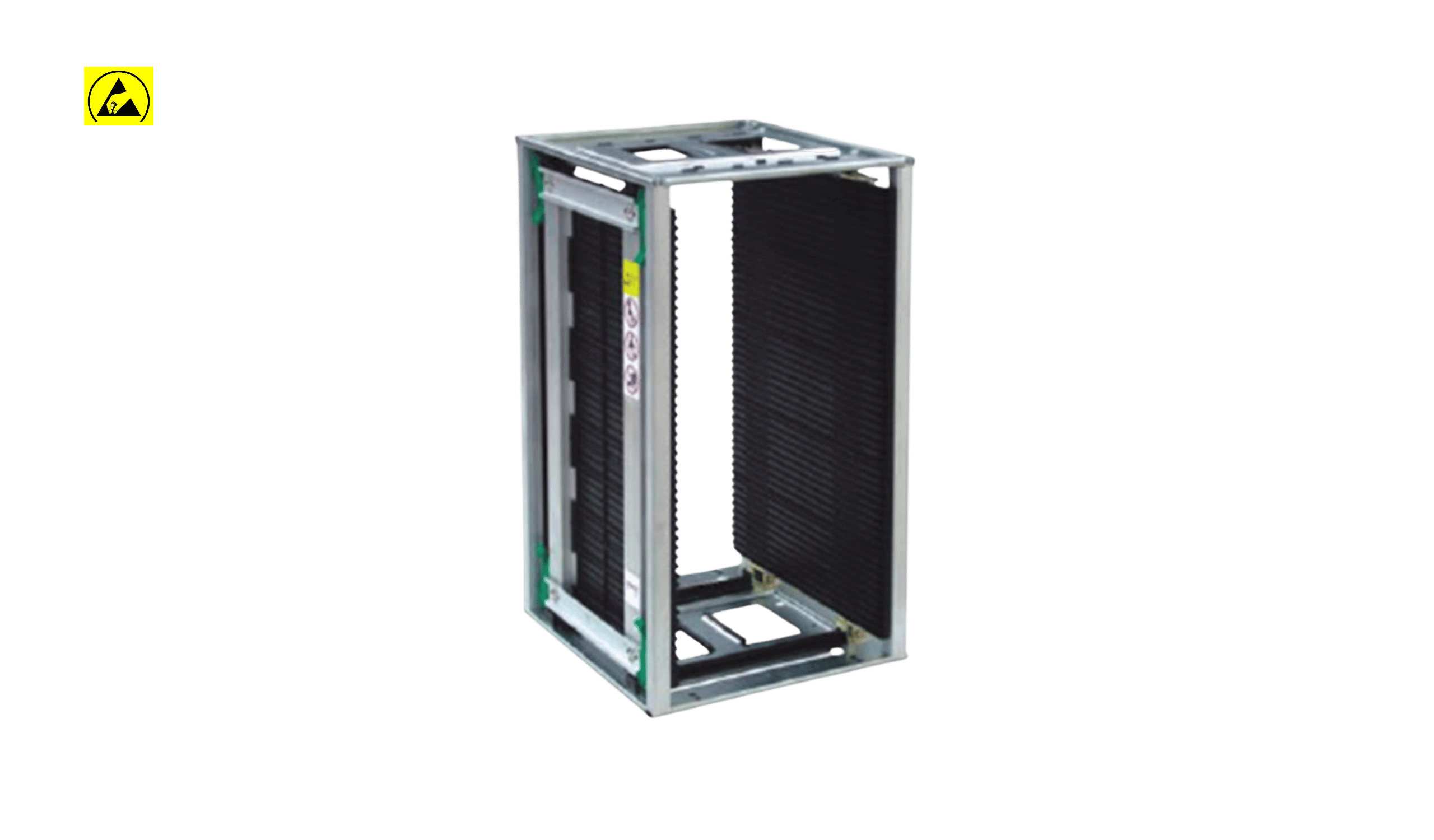

ESD PCB magazine rack, 50 slots, 18.1 x 1.6 x 22.1 inches
CHF 165.00 excl. VAT, plus shipping costs
Description
The ESD PCB Magazine Rack is designed for the safe storage and transport of printed circuit boards in electronics manufacturing and EPA zones. The combination of a metal structure and conductive polypropylene ensures high stability and reliable protection against electrostatic discharge.
With 50 slots and continuously adjustable width, the magazine can be flexibly adapted to different PCB sizes. The 10 mm slot spacing and precisely milled guides enable secure and gentle handling of the PCBs.
Technical data
- Dimensions: 460 × 400 × 563 mm
- PCB size: up to 460 mm in length, width 70–330 mm
- Number of slots: 50
- Slot spacing: 10 mm
- Slot size: 3 mm deep, 5 mm wide
- Material Magazine: Conductive Polypropylene
- Construction: partially metal
- Resistance: 10³ – 10⁹ ohms
- Temperature resistance: up to 80 °C
- Width adjustment: continuously variable
- Design: ESD-safe
