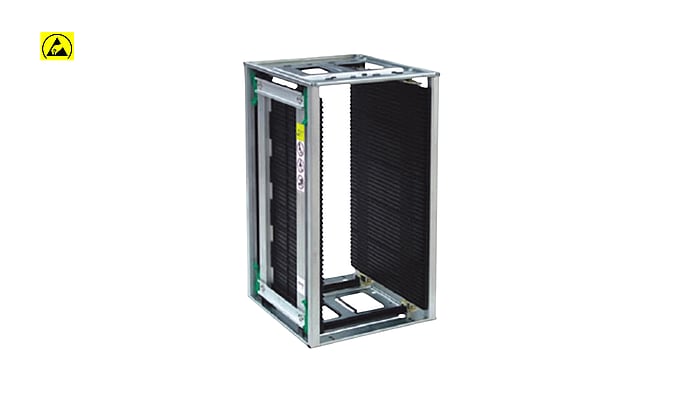

ESD PCB Magazine Rack, 50 Slots, 138 × 126 × 222 cm
CHF 145.00 excl. VAT, plus shipping costs
Description
The ESD PCB Magazine Rack is designed for the safe storage and transport of printed circuit boards in electronics manufacturing and EPA zones. The combination of a metal structure and conductive polypropylene ensures high stability and reliable protection against electrostatic discharge.
With 50 slots and continuously adjustable width, the magazine can be flexibly adapted to different PCB sizes. The 10 mm slot spacing and precisely milled guides enable secure and gentle handling of the PCBs.
Technical data
- Dimensions: 355 × 320 × 563 mm
- PCB width: 50–255 mm (max. PCB length approx. 330 mm)
- Number of slots: 50
- Slot spacing: 10 mm
- Slot size: 3 mm deep, 5 mm wide
- Material Magazine: Conductive Polypropylene
- Structure: partially metal
- Resistance: 10⁴ – 10⁶ ohms
- Temperature resistance: up to 80 °C
- Width adjustment: continuously adjustable
- Design: ESD-safe
Additional information
