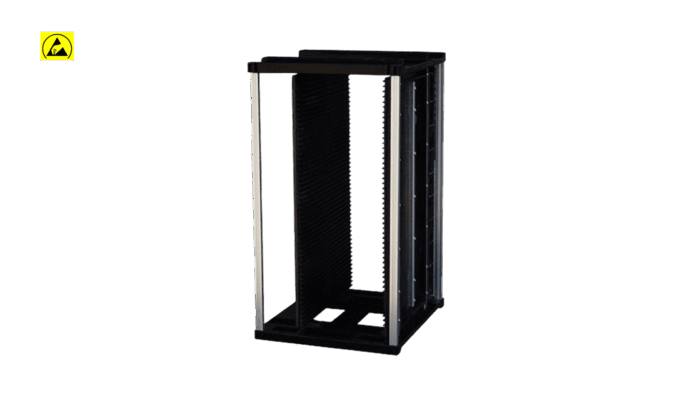

ESD PCB Magazine Rack, 50 Slots, 138 × 126 × 222 cm
CHF 165.00 excl. VAT, plus shipping costs
Description
The PCB Magazine Rack is a reliable solution for the safe storage and transport of printed circuit boards in electronics manufacturing, laboratories, and service areas. The ESD-safe design (10³–10⁶ Ω) protects sensitive components from electrostatic discharge and ensures safe working processes in EPA zones.
The continuously adjustable guides with rack and pinion mechanism allow quick adjustment to different PCB widths. With 50 slots and 10 mm spacing, the magazine offers sufficient space for efficient organization of PCBs.
The reinforced metal base ensures high stability and a long service life, while temperature resistance up to 120 °C allows it to be used even in demanding production environments.
Technical data
- Dimensions: 355 × 320 × 563 mm
- Capacity: up to 50 printed circuit boards
- PCB size: 350 × (80–250) mm
- Guides: 3.5 mm deep, 8 mm wide
- Slot spacing: 10 mm
- Material base: metal
- Resistance: 10³ – 10⁶ Ω (ESD)
- Temperature resistance: up to 120 °C
- Weight: approx. 0.4 kg
- Width adjustment: rack and pinion mechanism
Additional information
