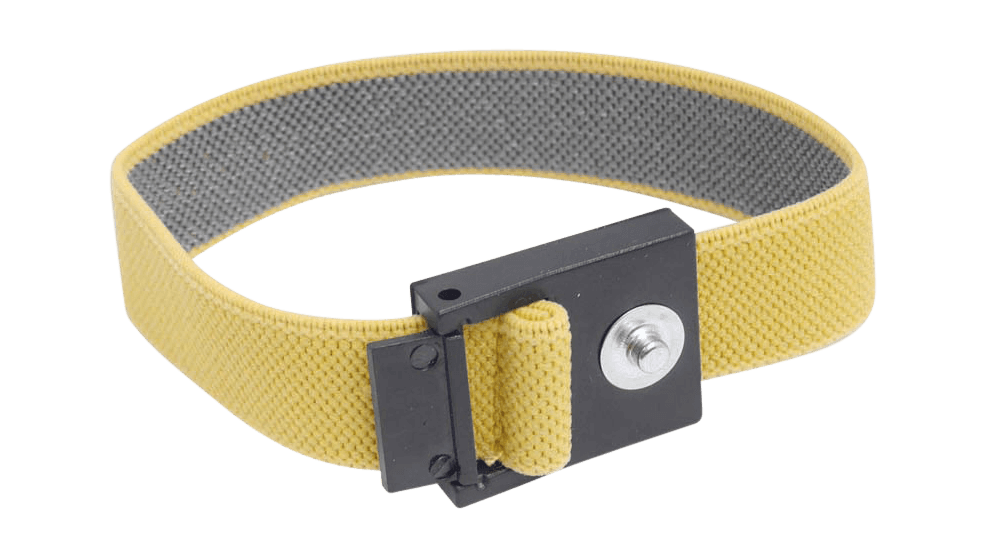

ESD contact bracelet yellow, for 3-4 mm
CHF 4.00 excl. VAT, plus shipping costs
Description
Wrist earthing, as a safe method of discharging electrostatic charges from people, consists of an adjustable wrist strap with woven-in silver-plated plastic fibers (close skin contact required) and a spiral cable that connects the wrist strap to the earthing point via push buttons (DK) in an electrically conductive manner. The spiral cable contains a safety resistor of 1 MOhm on each connection side and is approved for workplaces with a rated voltage of up to 250 VAC. To ensure adequate insulation, the wrist strap must only be stored in a dry place.
Washing instructions: Standard machine wash up to 30° C with color and mild detergent, tumble dry at low temperature (gentle), do not bleach. Avoid contact with acidic / alkaline solvents. ESD protection is retained for approx. 30 washes.
Technical data
- EPA suitable. For working in electrostatically protected areas (ESD workplace/ESD protection zone).
- Meets the safety requirements for wrist earthing in accordance with BGI 818 (DIN EN 61340-5-1)
- adjustable, anti-allergic, washable
- Bracelet length 220 mm
- Push button 3-4 mm
- Incorporated silver and carbon threads
- Resistance 10^5 to 10^7
- Color yellow
- Weight 9 g
Additional information
| ESD connection material | ||||
|---|---|---|---|---|
|
||||
| LEDs | ||||
|
|
||||
