Variable Frequency drives
750W frequency drive with PFC, 3-phase 0-240V / 3A
CHF 73.70 excl. VAT, plus shipping costs
Item no:
VFD-750C-230
Stock level:1 Available immediately
Packaging ex works:
25 piece
5+ CHF 73.70 CHF 70.00 (5%save)
10+ CHF 70.00 CHF 67.10 (8%save)
20+ CHF 67.10 CHF 65.20 (11%save)
Description

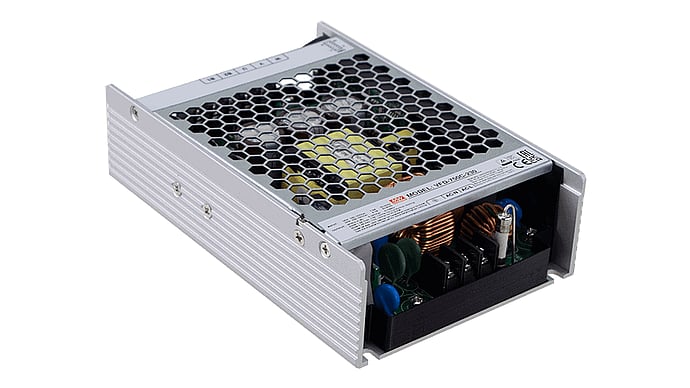

VFD-750C-230 is a variable frequency motor driver that can be controlled with an external PWM controller. The input range is from 90Vac to 264Vac and is suitable for all types of installations. The VFD is suitable for three-phase motor drives, such as BLDC, induction motors and SNRM applications.
Technical data
- 90 to 264Vac input voltage with PFC
- Activation via external controller
- Fanless design for longer service life and quiet operation
- Peak current of up to 200% for 5 seconds
- Various sensor outputs for the control system such as current sensor, motor torque control, DC bus voltage sensor - OVP / UVP, temperature sensor -OTP
- -30°C to +60°C Operating temperature range
- For the operation of 3-phase motors such as BLDC, induction motors, SynRM
Additional information
| LEDs | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||
| More | ||||||||||||
|
||||||||||||
Data sheets
| Data sheet VFD-750C-230 | PDF(1.39 MB) |
|---|---|
| DVT Test Report VFD-750C-230 | PDF(259.49 KB) |
| Installation Manual VFD Series | PDF(1.09 MB) |
