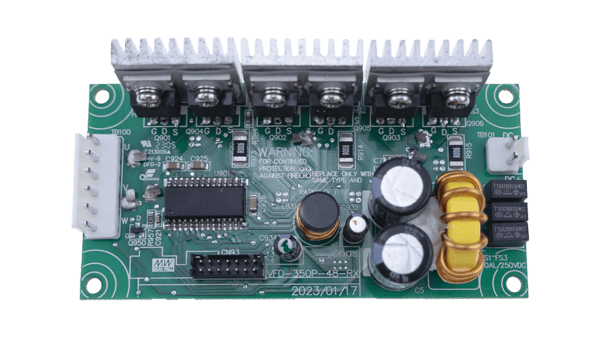

350W DC/DC frequency drive for DC motor, 3-phase 0-34V / 10A
CHF 21.00 excl. VAT, plus shipping costs
Description

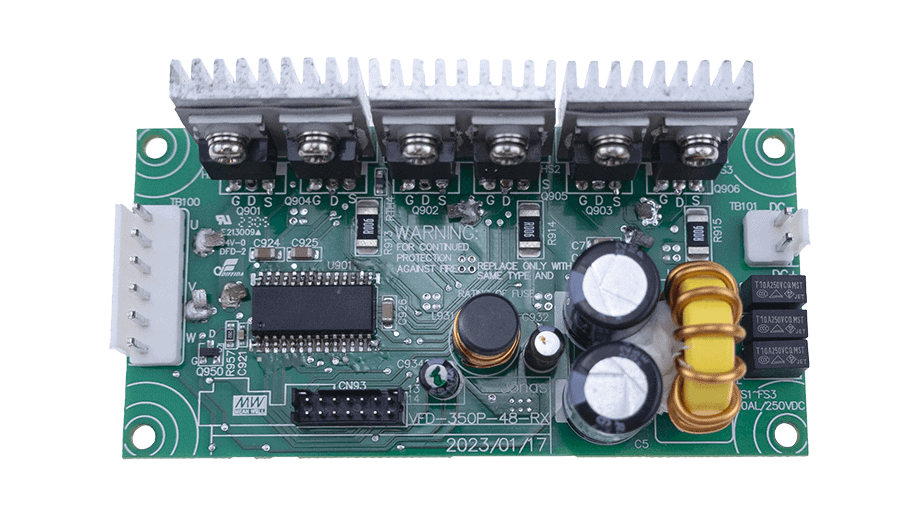

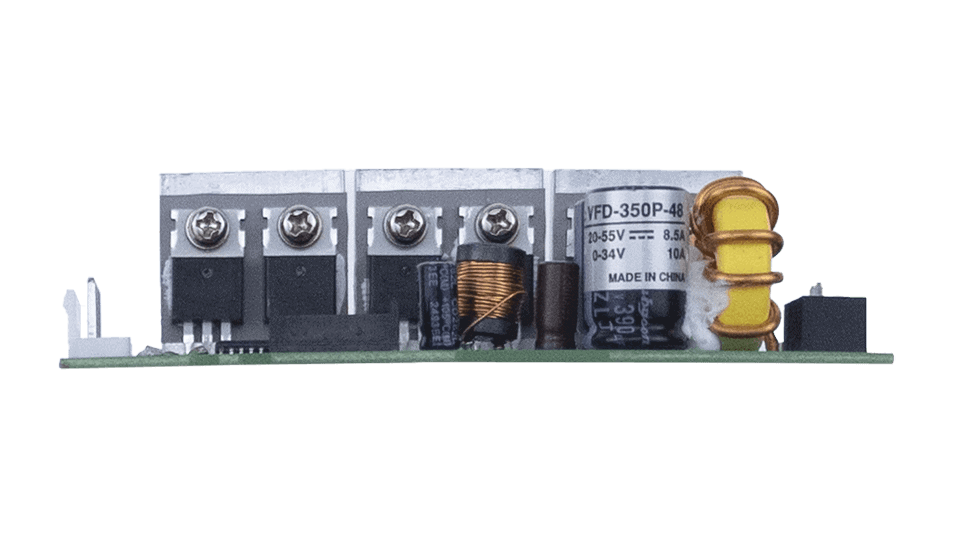

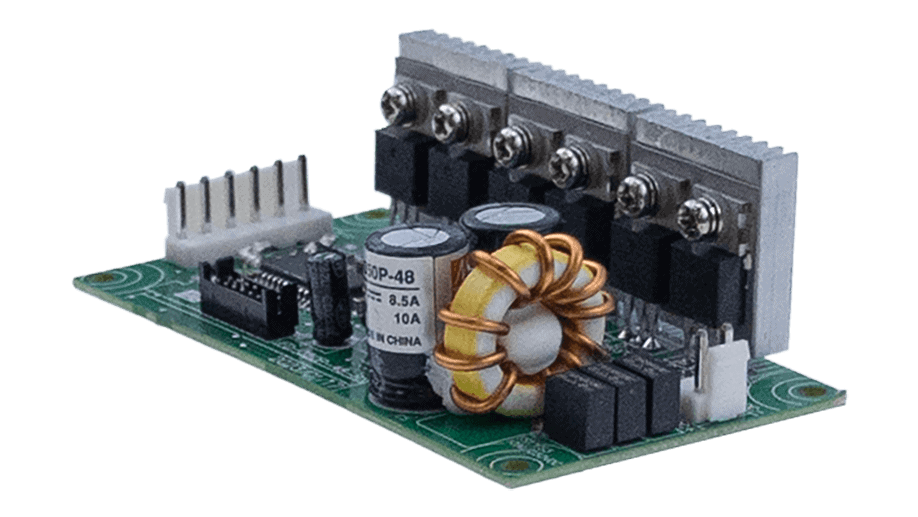

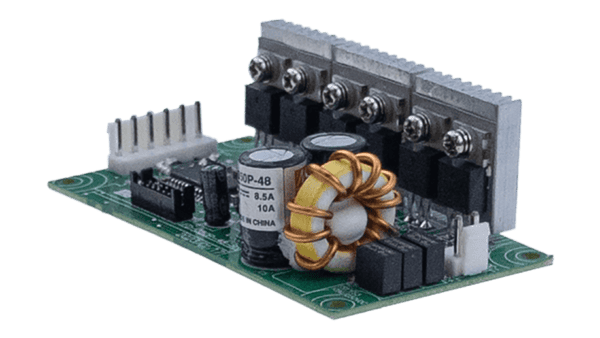

VFD-350P-48 is a motor driver for 48V variable frequency motors that can be controlled with an external PWM controller. The input range is from 20Vdc to 55Vdc and is suitable for all types of installations. Built in the standard footprint of 4″x2″, the VFD-350P-48 is capable of delivering up to 200% peak load. The VFD is suitable for three-phase motor drives such as BLDC, induction motors and SNRM applications.
Technical data
- 4″x2″ Standard format
- 20 to 55Vdc Input voltage
- Activation via external controller
- Fanless design for longer service life and quiet operation
- Peak current of up to 200% for 5 seconds
- Various sensor outputs for the control system such as current sensor, motor torque control, DC bus voltage sensor - OVP / UVP, temperature sensor -OTP
- -30°C to +70°C Operating temperature range
- For the operation of 3-phase motors such as BLDC, induction motors, SynRM
Additional information
| LEDs | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
| More | ||||||||||
|
||||||||||
Data sheets
| Data sheet VFD-350P-48 | PDF(1.51 MB) |
|---|---|
| DVT Test Report VFD-350P-48 | PDF(224.81 KB) |
| Installation Manual VFD Series | PDF(1.09 MB) |
Similar products
-

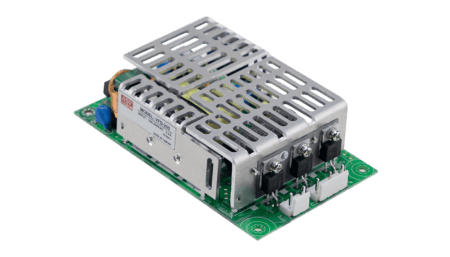

VFD-250P-230
250W frequency drive with PFC, 3-phase 0-240V / 1ACHF 42.902 Available immediately -
VFD-150P-48
150W DC/DC frequency drive for DC motor, 3-phase 0-34V / 4.3ACHF 17.501 Available immediately -

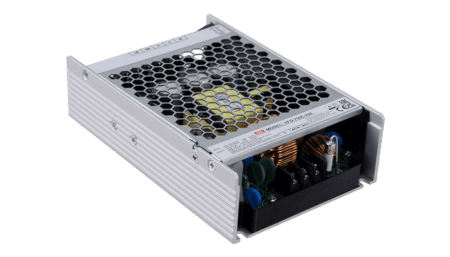

VFD-750C-230
750W frequency drive with PFC, 3-phase 0-240V / 3ACHF 82.701 Available immediately -

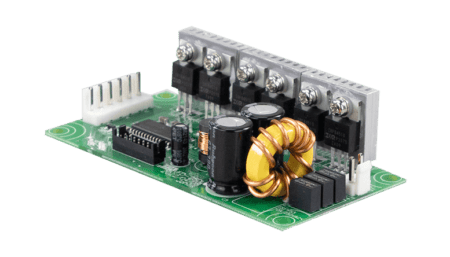

VFD-250P-48
250W DC/DC frequency drive for DC motor, 3-phase 0-34V / 7.2ACHF 20.102 Available immediately -

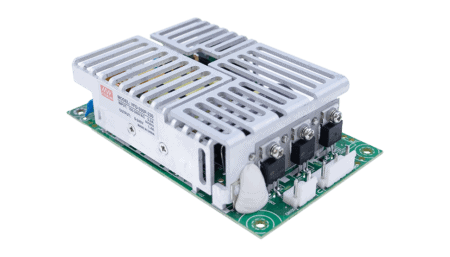

VFD-350P-230
350W frequency drive with PFC, 3-phase 0-240V / 1.4ACHF 43.80Available to order -

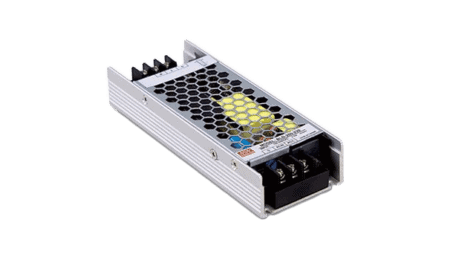

VFD-200C-230
200W frequency drive with PFC, 3-phase 0-240V / 0.8ACHF 39.80Available to order -

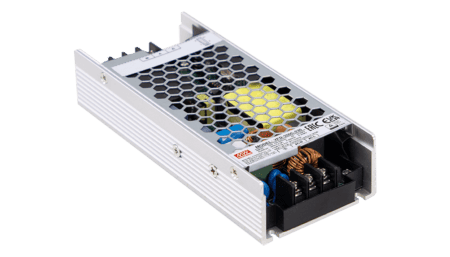

VFD-350C-230
