120W Fire and Security power supply unit - UPS and battery charging function 48V battery
CHF 30.90 excl. VAT, plus shipping costs
Description

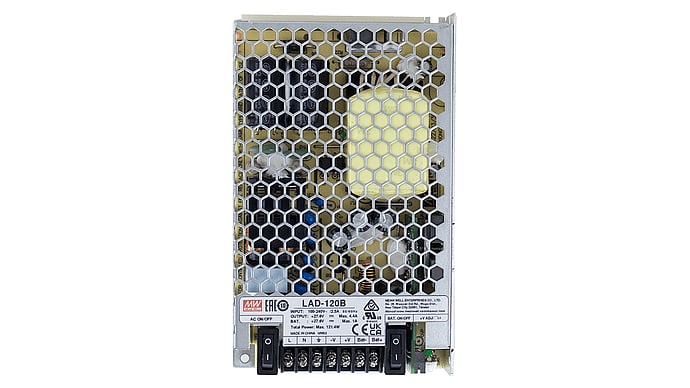

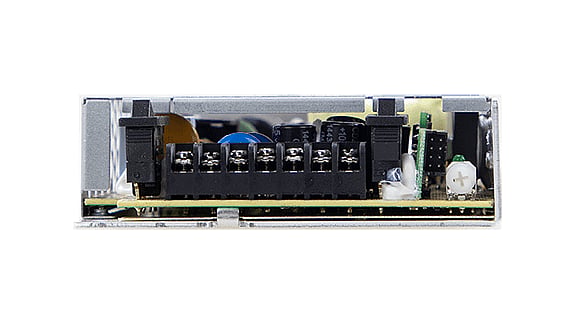

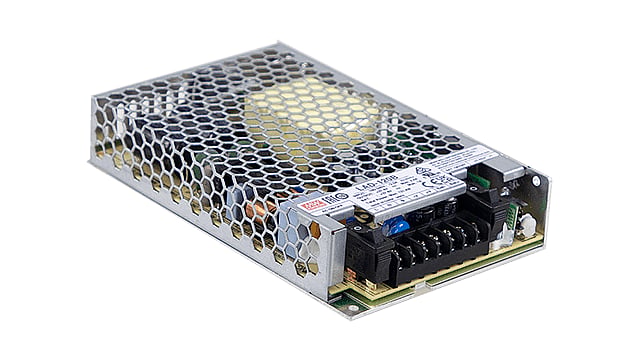

The LAD-120 series is a 120W low-cost AC/DC safety power supply with UPS function. The input range is from 90Vac to 264Vac and supports 13.8V, 27.6V, 41.5V and 55.2Vdc outputs. With a high efficiency of up to 88% and built-in AC and battery switch for easy maintenance. In addition, the LAD-120 series also provides TTL signals for AC OK, battery disconnection, battery reverse polarity protection (no damage), low battery detection, full battery and battery discharge to allow easy integration into security and fire protection systems.
Technical data
- Built-in charger and UPS function
- TTL signals for status detection: AC OK, battery disconnection, reverse polarity protection, battery level low, battery full, battery discharged
- Built-in switches for mains disconnection and battery disconnection
- Forced UPS mode for battery maintenance
- Suitable for lead and lithium batteries
- Output voltage Adjustable -20%/+5%
Additional information
| UPS & Security | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
||||||||||||||||
| Enclosed power supplies | ||||||||||||||||
|
||||||||||||||||
| More | ||||||||||||||||
|
||||||||||||||||
Data sheets
| Data sheet LAD-120 | PDF(1.09 MB) |
|---|
Downloads
| 3D data LAD-120 | Zip file (2.82 MB) |
|---|
