Enclosed power supplies
750W Power supply 24V/31.3A
CHF 159.00 excl. VAT, plus shipping costs
Item no:
UHP-750-24
In stock: Available to order
Packaging ex works:
10 piece
Estimated delivery time:
2 weeks
5+ CHF 159.00 CHF 151.40 (4%save)
10+ CHF 151.40 CHF 144.80 (8%save)
20+ CHF 144.80 CHF 140.60 (11%save)
Description

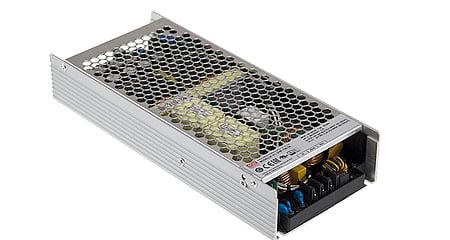

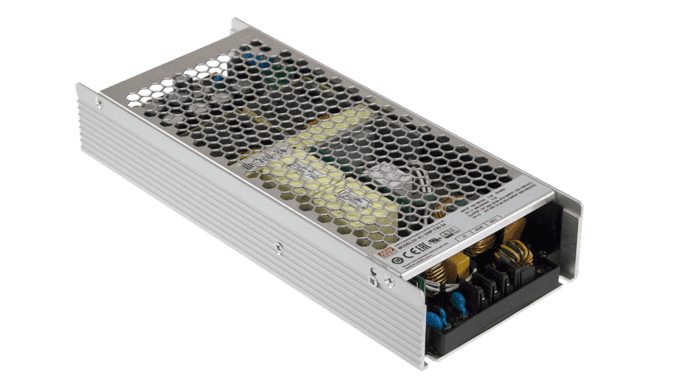

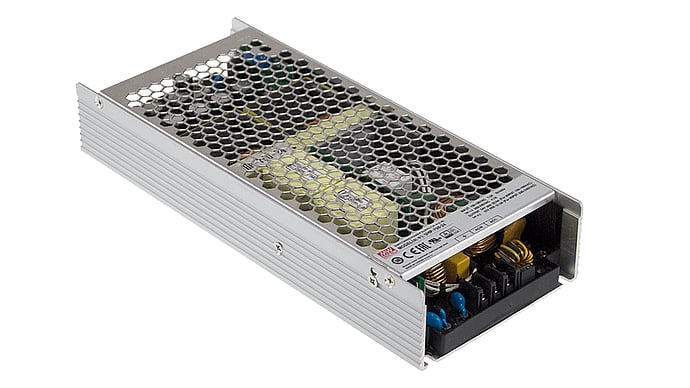

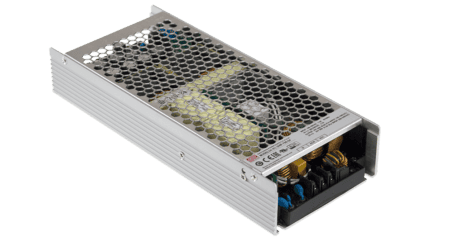

The UHP-750-24 is a slim, fanless power supply unit in a housing with a height of just 41 mm. Thanks to its industrial and household approvals, this high-quality power supply unit can be used in a wide range of applications such as industrial automation, household appliances, LED displays and much more.
Technical data
- Input voltage 90 to 264Vac
- with active PFC
- DC OK Relay contact
- Full load operation with conduction cooling (without fan)
- Operating temperature range from -30°C to +70°C
- Holds surge voltages up to 300Vac for up to 5 seconds
- Approved for operation up to 5000 meters altitude
- Dimensions 237 x 100 x 41mm (L x W x H)
