Enclosed power supplies

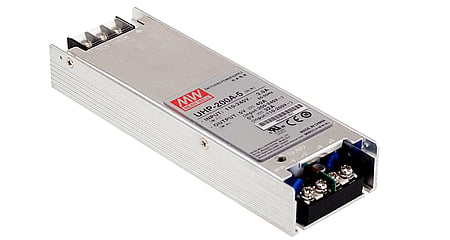

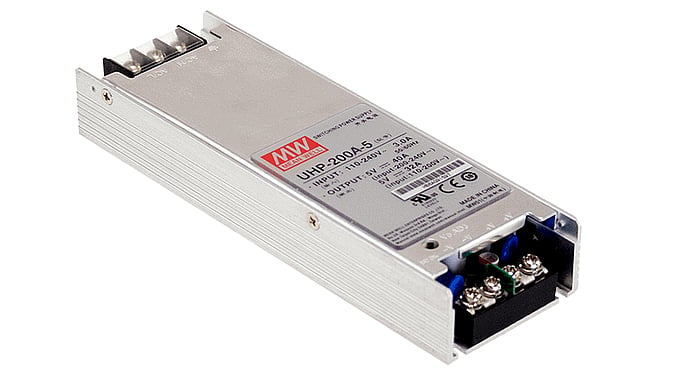

200W Power supply 5V/40A
CHF 43.20 excl. VAT, plus shipping costs
Item no:
UHP-200A-5
In stock: Available to order
Packaging ex works:
20 piece
5+ CHF 43.20 CHF 41.10 (4%save)
10+ CHF 41.10 CHF 39.30 (9%save)
20+ CHF 39.30 CHF 38.20 (11%save)
Description
UHP-200A-5 series is a slim power supply in a housing for LED display applications. The very high efficiency at low output voltages makes the power supply unit the ideal solution for supplying LED video displays and display panels.
Technical data
- Input voltage 90 to 264Vac
- with active PFC
- Operating temperature range from -30°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Low leakage current of 1.0mA
- Dimensions 167 x 55 x 26mm (L x W x H)
Additional information
| Enclosed power supplies | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet UHP-200A | PDF(749.95 KB) |
|---|---|
| Test Report | PDF(319.62 KB) |
| Installation Manual Enclosed | PDF(995.59 KB) |
Downloads
| Zip file (494.74 KB) |
