19kW 3-phase power supply unit 55V/346A
CHF 6'013.90 excl. VAT, plus shipping costs
Description

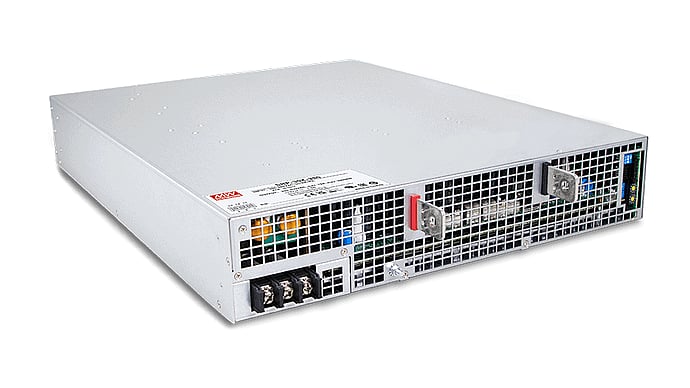

SHP-30K-55 is a digital 19kW power supply unit with 3-phase input. The power supply unit can be operated in the 3-phase network without a neutral conductor. Numerous additional functions such as programmable output, remote ON/OFF, auxiliary voltages and CAN bus interface facilitate integration into the overall system.
The built-in currrent sharing function allows up to 12 SHP-30K units to be connected in parallel to achieve a higher output.
MEAN WELL High-performance power supply system solutions – Simpex Electronic AG
Technical data
- Three-phase input voltage range 340 to 530Vac, 3-wire / delta connection or star connection
- Integrated remote on/off functions
- Auxiliary circuit 12V/0.1A
- Output voltage can be trimmed between 50 - 120% using an external control signal
- Output current can be trimmed between 1 - 100% using an external control signal
- Current sharing with up to 12 units up to 228kW
- Alarm signal outputs (relay contact and open collector signal): AC fail, DC OK, fan fail, OTP
- Integrated CAN bus interface for monitoring and control

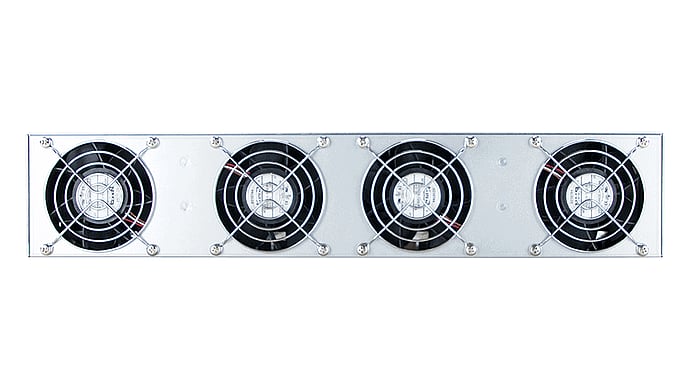

- Air cooling with integrated, speed-controlled DC fan
- Operating temperature range from -30°C to +70°C
- Dimensions 540 x 424 x 83.5mm (L x W x H)
Additional information
| Enclosed power supplies | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet SHP-30K | PDF(2.66 MB) |
|---|---|
| Instruction Manual SHP-30K | PDF(1.73 MB) |
| System Power Installation Manual | PDF(3.6 MB) |
| Carbon Footprint declaration SHP-30K | PDF(74.58 KB) |
Downloads
| 3D Step File | Zip file (1.81 MB) |
|---|
