Enclosed power supplies
10000W 3-phase power supply 380V/26.3A
CHF 2'622.00 excl. VAT, plus shipping costs
Item no:
SHP-10K-380
Stock: Available to order
Estimated delivery time:
1-2 weeks
5+ CHF 2'622.00 CHF 2'497.80 (4%save)
10+ CHF 2'497.80 CHF 2'387.40 (8%save)
20+ CHF 2'387.40 CHF 2'318.40 (11%save)
Description

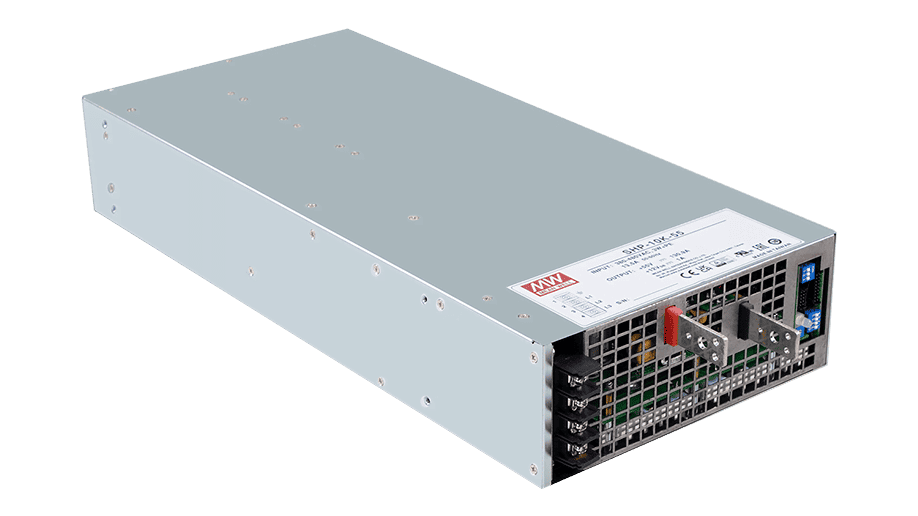

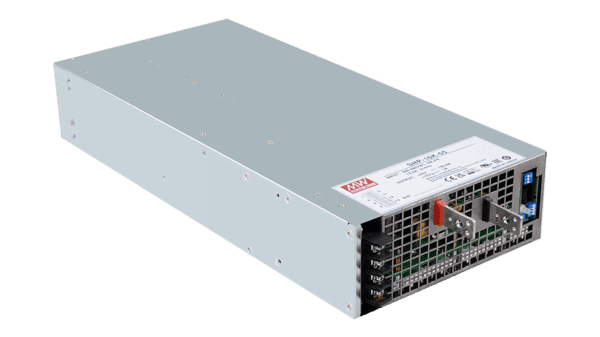

SHP-10K-380 is a digital 10kW power supply unit with 3-phase input.
Technical data
- Three-phase input voltage range 340 to 530Vac, 3-wire / delta connection or star connection
- Integrated remote on/off functions
- Auxiliary circuit 12V/0.1A
- Output voltage can be trimmed between 50 - 120% using an external control signal
- Output current can be trimmed between 20 - 100% using an external control signal
- Current sharing with up to 4 units up to 40kW
- Alarm signal outputs (relay contact and open collector signal): AC fail, DC OK, fan fail, OTP
- Integrated CAN bus interface for monitoring and control

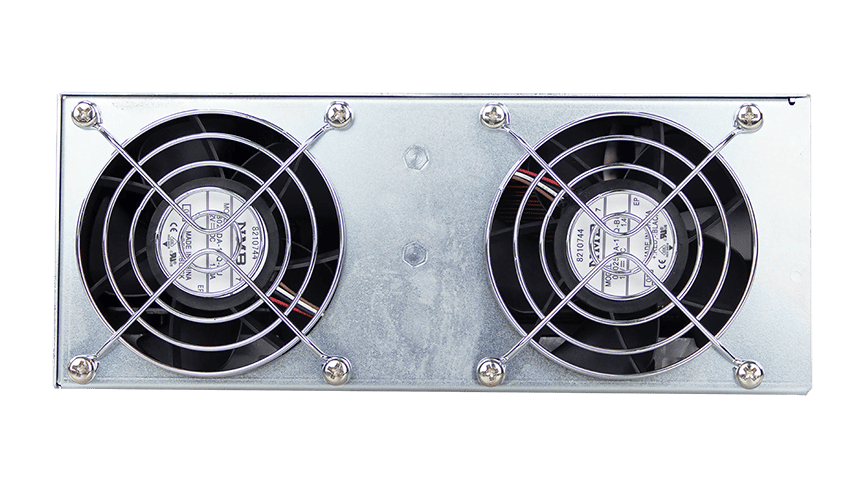

- Air cooling with integrated, speed-controlled DC fan
- Operating temperature range from -30°C to +70°C
- Dimensions 460 x 211 x 83.5mm (L x W x H)
Additional information
| Enclosed power supplies | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet SHP-10K | PDF(1.53 MB) |
|---|---|
| Installation Manual SHP-10K | PDF(1.31 MB) |
| Test Report SHP-10K-380 | PDF(606.83 KB) |
| Installation Manual Enclosed | PDF(995.01 KB) |
| Carbon Footprint declaration SHP-10K | PDF(74.57 KB) |
Downloads
| 3D data SHP-10K | Zip file (2.29 MB) |
|---|
Accessories
-
CMU2C-C##
Smart Controller for MEAN WELL CANBus power supplies, standalone versionCHF 655.10Available to order -
CMU2C-R-C##
Smart Controller for MEAN WELL CANbus power supplies, rack versionCHF 745.20Available to order
Similar products
-
SHP-10K-380L
10000W 3-phase power supply 380V/26.3A, version for water coolingCHF 2'910.50Available to order -

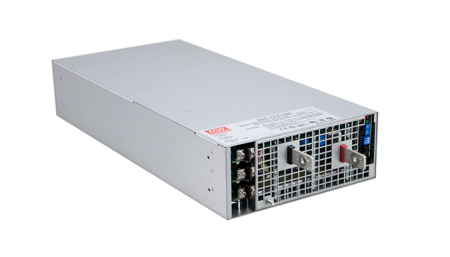

RST-7K5-380
7515W 3-phase power supply 380V/22.5ACHF 1'748.00Available to order -
SHP-30K-380
30kW 3-phase power supply 380V/79ACHF 6'747.30Available to order -
RST-7K5-380L
7515W 3-phase power supply 380V/22.5A, version for water coolingCHF 1'940.30Available to order -
RST-15K-380
15030W 3-phase power supply 380V/45ACHF 3'496.00Available to order
