7515W 3-phase power supply 380V/22.5A
CHF 1'612.60 excl. VAT, plus shipping costs
Description

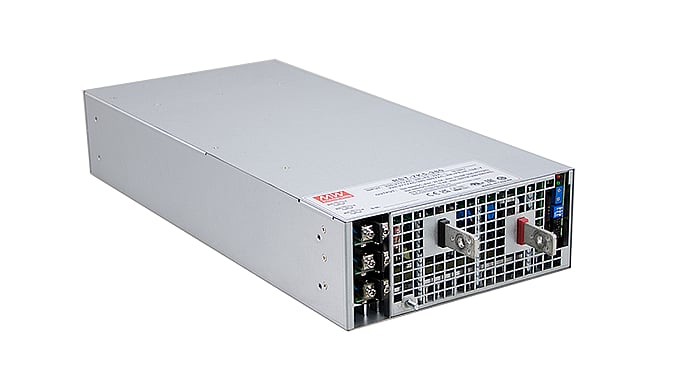

The MEAN WELL RST-7K5-380 is a high-performance 7.5-kW AC/DC power supply with a three-phase input and a 380 VDC output voltage. It offers high efficiency of up to 95%, programmable output voltage and current limiting, as well as remote ON/OFF. By connecting up to four units in parallel, systems with a capacity of up to 30 kW can be implemented. Ideal for industrial equipment, test systems, and high-power DC power supplies.
Technical data
- Three-phase input voltage range 196 to 305Vac (3-wire / delta connection) or 340 to 530Vac (4-wire / star connection)
- Integrated remote on/off functions
- Auxiliary circuit 12V/0.1A
- Output voltage can be trimmed between 1 - 120% using an external control signal
- Output current can be trimmed between 20 - 100% using an external control signal
- Current sharing with up to 4 units up to 30kW
- Alarm signal outputs (relay contact and open collector signal): AC fail, DC OK, fan fail, OTP

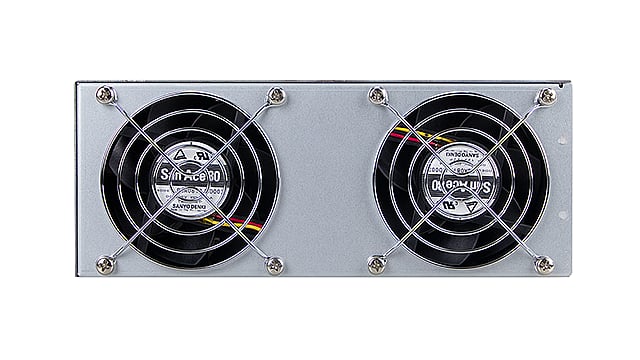

- Air cooling with integrated, speed-controlled DC fan
- Operating temperature range from -30°C to +70°C
- Dimensions 460 x 211 x 83.5mm (L x W x H)
Additional information
| Enclosed power supplies | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| Maintenance aids | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet RST-7K5 | PDF(1.26 MB) |
|---|---|
| Test Report RST-7K5-380 | PDF(647.07 KB) |
| Installation Manual Enclosed | PDF(995.59 KB) |
| Carbon Footprint declaration RST-7K5 | PDF(74.5 KB) |
Downloads
| 3D Step File RST-7K5 | Zip file (2.16 MB) |
|---|
Accessories
-
RSP-CABLE-6POL
Connection cable with Hirose DF11-6DS connector, 6-pinCHF 6.5017 Available immediately
Similar products
-
RST-7K5-380L

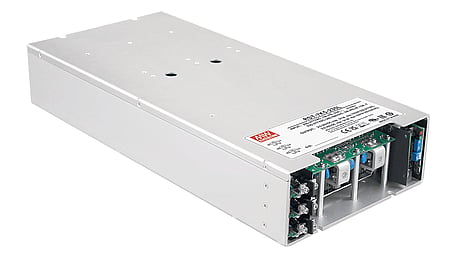

7515W 3-phase power supply 380V/22.5A, version for water coolingCHF 1'791.70Available to order -
SHP-10K-380
10000W 3-phase power supply 380V/26.3ACHF 2'356.00Available to order -
RST-15K-380

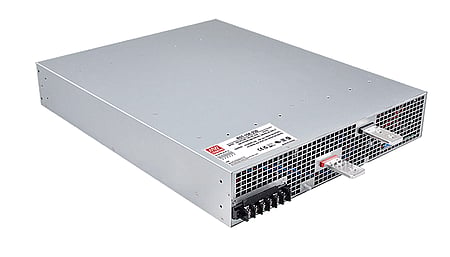

15030W 3-phase power supply 380V/45ACHF 3'146.40Available to order -
