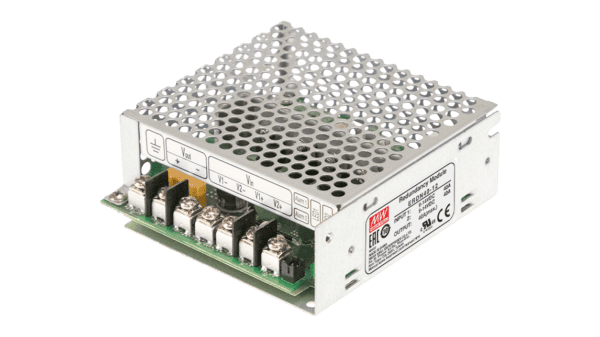

40A redundancy module for 48V systems
CHF 32.90 excl. VAT, plus shipping costs
Item no:
ERDN40-48
Stock: Available to order
Packaging ex works:
45 piece
Estimated delivery time:
1 to 2 weeks
5+ CHF 32.90 CHF 31.30 (4%save)
10+ CHF 31.30 CHF 29.90 (9%save)
20+ CHF 29.90 CHF 29.10 (11%save)
Description
ERDN40-48 is a 40A redundancy module which can be used to improve the reliability of the overall system. The MOSFET technology used increases the efficiency and reduces the voltage drop between input and output voltage. One DC OK relay contact per channel is built in for monitoring.
Technical data
- Supports 1+1 and N+1 redundancy systems
- 2 channels input and 1 channel output
- Output current up to 40A
- Input current per channel 20A x 2 or 40A x 1
- Efficiency 98
- Voltage drop 0.3Vdc maximum
- 2-channel DC OK signal and alarm relay contact
- Dimensions 97 x 99 x 36mm (W x L x H)
- 3-year guarantee
Additional information
| LEDs | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||
| More | ||||||||||||
|
||||||||||||
Data sheets
| Data sheet ERDN40 | PDF(302.28 KB) |
|---|---|
| Test Report ERDN40-48 | PDF(164.17 KB) |
| Installation Manual ERDN | PDF(174.17 KB) |
| Carbon Footprint declaration ERDN40 | PDF(73.85 KB) |
Downloads
| 3D data ERDN40 | Zip file (1.28 MB) |
|---|
