550W power supply unit in housing 48V/11.4A
CHF 132.25 excl. VAT, plus shipping costs
Description

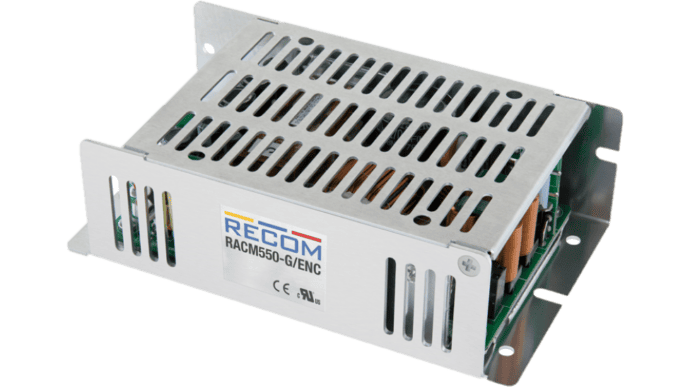

The RACM550 series from RECOM is designed for a continuous output power of up to 300 watts without fan cooling. The compact 3" x 5" baseplate design allows direct heat dissipation through the metal housing of the application. Up to 550 watts are available to drive dynamic loads for several seconds of peak power or with forced ventilation for even longer periods. A smart fan output is on board as standard, as well as a 5V/1A VSB output for applications with circuits for home automation and on/off control. A wide input range of 80 to 264VAC, an operating altitude of up to 5000m and certifications from international safety authorities make the series globally compliant for medical 2 MOPP, domestic and industrial ITE applications.
Technical data
- 300 W base plate cooling, fanless operation
- 550 W peak power or with fan
- Universal AC input range (80~264VAC)
- Power consumption in standby mode <0,5 W
- Operating temperature -40°C to +70°C
- Household, ITE and medical 2MOPP certificate
- Signals: remote sense and ON/OFF control
Additional information
| Enclosed power supplies | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||
| LEDs | ||||||||||||||||||||
|
|
||||||||||||||||||||
| More | ||||||||||||||||||||
|
||||||||||||||||||||
Data sheets
| Data sheet RACM550 | PDF(1.97 MB) |
|---|---|
| Installation Guide RACM550 | PDF(179.63 KB) |
Downloads
| 3D Step File RACM550-G | Zip file (8.96 MB) |
|---|
