150W AC/DC power supply 12V/12.5A
CHF 63.00 excl. VAT, plus shipping costs
Description
The RAC150 series are cost-effective 150 watt AC/DC power supplies in a standard 2″x4″ format with a universal input range of 90-264VAC for worldwide use. They deliver up to 125 watts with natural air convection for use in tight, space-critical enclosures with low airflow. The UL and CE marks with CB reports include both the new 62368 safety standard and the previously used 60950 safety standard. The RAC150 series offers tightly regulated 12V, 24V and 48VDC outputs with 3kVAC isolation and Class B EMC certifications and comes with a three-year warranty.
Technical data
- Universal input 90-264VAC
- Efficiency 91 %
- Protection against short circuit and overvoltage
- Active PFC function, PF>0,95
- Power indicator LED
- UL, CE-marked (CB report)
- Protective coating standard
Additional information
| Enclosed power supplies | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| Data sheet RAC150-G | PDF(292.92 KB) |
|---|---|
| Installation Guide RAC150-G_ENC | PDF(137.84 KB) |
Downloads
| 3D Step File RAC150-G_ENC | Zip file (886.16 KB) |
|---|
Accessories
-
R-78K5.0-1.0
1A switching regulator, input 6.5...36V output 5V/1000mA, SIP3CHF 2.9039 Available immediately -

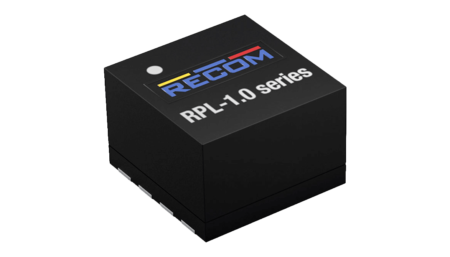

RPL-1.0-CT
1A DC/DC converter, input 3...22V, output 0.6...12V/1A, LGACHF 2.50Available to order -

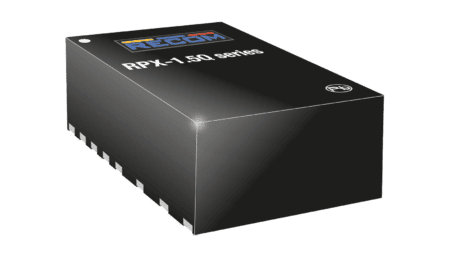

RPX-1.5Q-CT
7.5W DC/DC converter, input 4...36V, output 0.8...30V/1500mA, QFNCHF 6.2510 Available immediately -

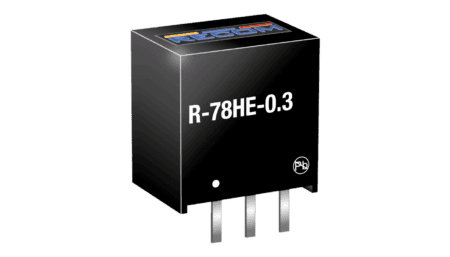

R-78HE5.0-0.3
2.5W DC/DC converter, input 6.5...72V, output 5V/300mA, SIP3CHF 5.5042 Available immediately
Similar products
-

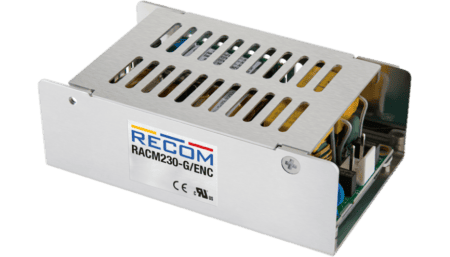

RACM230-12SG/ENC
230W power supply unit in housing 12V/19ACHF 78.20Available to order
