5W AC/DC power supply unit in mains filter housing 5V/1000mA
CHF 15.75 excl. VAT, plus shipping costs
Description

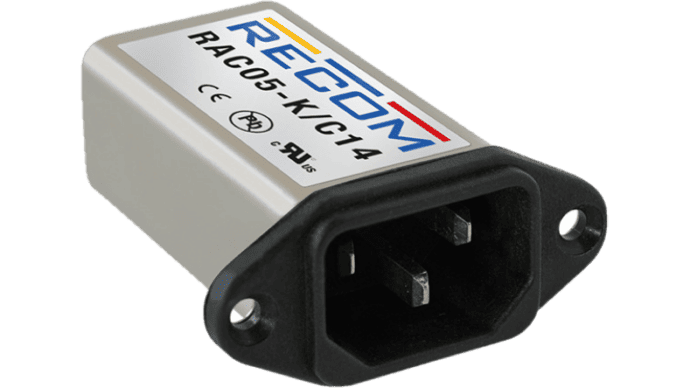

The RAC05-K/C14 is a unique, patented design that combines a mains filter and an isolated power supply in the same housing as a mains input filter only, at a lower price than many other mains filters. It fits into a standard IEC mounting hole, so installation time is only a few seconds. The touchable SELV output terminals are available in 3.3 V, 5 V, 12 V, 15 V and 24 V DC and are protected against short circuit, overload and overvoltage. The metal housing provides secure mounting and improves heat dissipation, allowing an operating temperature of -25°C to +70°C. The RAC05-K/C14 is ideal for powering single board computers such as the Raspberry Pi (including touchscreen), Arduino, BBC Micro:bit, etc.
Technical data
- Insulated power supply unit with integrated mains filter
- Packed in a mains filter housing
- Safe, touchable DC outputs
- Simple installation
- Worldwide standard IEC input
- 85-264VAC universal input voltage
- Unique patented design
Additional information
| Enclosed power supplies | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||
| LEDs | ||||||||||||||||||||
|
|
||||||||||||||||||||
| More | ||||||||||||||||||||
|
||||||||||||||||||||
Data sheets
| Data sheet RAC05C14 | PDF(243.7 KB) |
|---|---|
| Installation Guide RAC05-KC14 | PDF(1.13 MB) |
Downloads
| 3D Step File RAC05-K_C14 | Zip file (202.26 KB) |
|---|
Accessories
-
RKK-0505S/H
1W DC/DC converter, input 5V, output 5V/200mACHF 1.8525 Available immediately -
R-78K3.3-0.5
0.5A switching regulator, input 4.5...36V output 3.3V/500mA, SIP3CHF 2.3038 Available immediately -
R1SE-0505
1W DC/DC converter, input 5V +/-10%, output 5V/200mA, SMDCHF 3.2040 Available immediately -
RFM-0505S
1W DC/DC converter, input 5V +/-10%, output 5V/200mA, SIP4CHF 1.6042 Available immediately -
ROE-0512S
1W DC/DC converter, input 5V, output 12V/84mA, SIP4CHF 3.0030 Available immediately
Similar products
-
RAC05-05SK/277/W
5W AC/DC power supply unit with cable connection 5V/1000mACHF 10.70Available to order -
RAC03-05SK
3W AC/DC power supply unit, PCB mounting, 5V/600mACHF 6.0518 Available immediately -
RAC03-05SER/277
3W AC/DC power supply unit round design with cable connection 5V/600mACHF 24.355 Available immediately -
RAC05-05SK
5W AC/DC power supply unit, PCB mounting, 5V/1ACHF 9.4518 Available immediately
We would be happy to advise you personally
Our technical support team will be happy to answer any questions you may have about our products. Our competent product specialists with project experience will accompany you conscientiously in your projects. It is important to us to offer our customers top service at all times.
