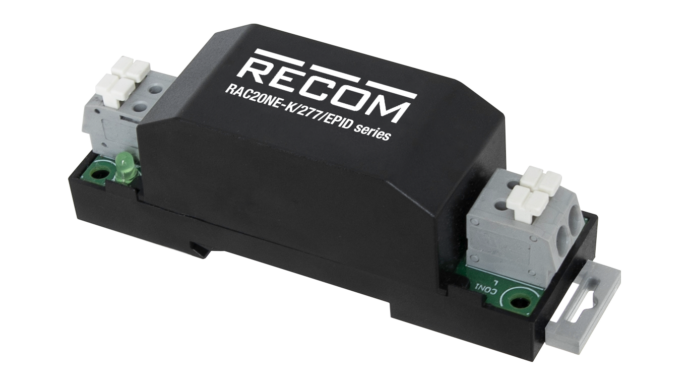

20W AC/DC power supply 24V/0.83A
CHF 15.60 excl. VAT, plus shipping costs
Description
RAC20NE-K/277/EPID can be flexibly adapted to different installation conditions, regardless of whether rear panel mounting with screws or clipping onto DIN rails is required. In addition to the push-in terminals for the tool-free connection of cable cross-sections up to 2.5 mm², the modules are designed with IP40 protection. Despite their extremely compact design, the class II devices offer increased resistance to overvoltages of up to 2 kV L-N and 4 kV to earth as well as EMI interference filters that meet the requirements of EN55032 class "B" under unearthed or earthed load conditions such as PELV.
Technical data
- Wide input range from 80 to 305Vac
- Full load up to 55°C without derating
- Output floating or coupled with GND / FE / PE
- Overvoltage resistance 2kVac: L-N / 4kV: L;N earth
- OVC III up to 3000m / OVC II up to 5000m
- Tool-free push-in clamps
- DIN rail or screw mounting possible
- Boost power up to 23W
Additional information
| Enclosed power supplies | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
||||||||||||||||||||||
| DIN rail power supplies | ||||||||||||||||||||||
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| Data sheet RAC20NE-EPID | PDF(1.08 MB) |
|---|---|
| Installation instructions RAC20NE-K EPID | PDF(993.05 KB) |
Downloads
| 3D Step File RAC20NE-K EPID | Zip file (1.37 MB) |
|---|
