Enclosed power supplies
NSP 1600

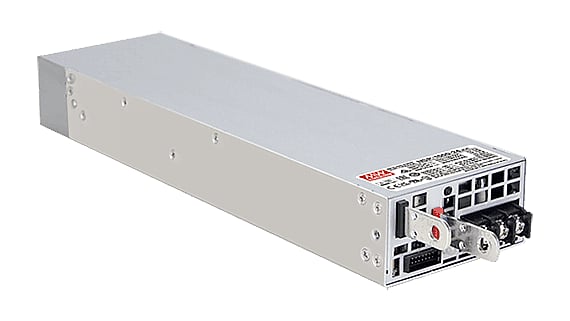

NSP 1600 front

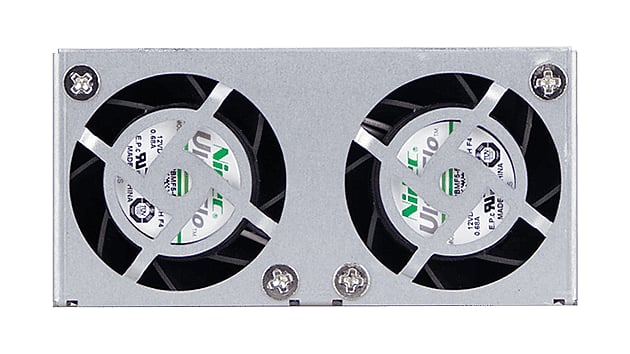

NSP 1600 back

1600W Power supply 24V/67A

CHF 327.20 excl. VAT, plus shipping costs

Item no: NSP-1600-24
In stock: Available to order
Packaging ex works: 6 piece
Estimated delivery time: 1-2 weeks
5+ CHF 327.20 CHF 311.70 (4%save)
10+ CHF 311.70 CHF 298.00 (8%save)
20+ CHF 298.00 CHF 289.30 (11%save)
Wish listWish list
Wish list
Questions
Delivery time request  Print PDF

Description

NSP-1600-24 is an industrial AC/DC power supply unit with an excellent price/performance ratio. Cooling is controlled by a temperature-regulated fan.

Technical data

  • Input voltage 90 to 264Vac
  • with active PFC
  • Remote Sense and Remote On/Off functions integrated
  • 12V/0.8A auxiliary output
  • Output voltage can be trimmed between 40 - 125% using an external control signal or via CAN bus (60 - 125% for NSP-1600-12)
  • DC OK signal and overtemperature alarm signal (OTP)
  • Air cooling with temperature-controlled DC fan
  • Operating temperature range from -30°C to +70°C (note derating)
  • Dimensions 300 x 85 x 41mm (L x W x H)

Additional information

Enclosed power supplies
Output voltage (Vdc)

24

Power (W)

1600

Input voltage range (Vac)

90 to 264

Protection class

Class I

Setting range Vdc max

30

Setting range Vdc min

23.5

Application

ITE/AV

Further functions

12Vdc auxiliary output

Control

Analog, CAN bus

Status signals

DC OK signal, temperature alarm

Control signals

Programmable voltage, remote ON/OFF, remote sense

Manufacturer

MEAN WELL

Length (mm)

300

Width (mm)

85

Height (mm)

41
LEDs
More
Manufacturer's warranty

5 years

Efficiency typ.

91%

Data sheets

Data sheet NSP-1600 PDF(892.02 KB)
Test Report NSP-1600-24 PDF(429.48 KB)
CANBus Communication Note NSP-1600 PDF(661.64 KB)
Carbon Footprint declaration NSP-1600 PDF(74.38 KB)

Downloads

3D Step File NSP-1600 Zip file (427.12 KB)
