Enclosed power supplies
31W medical AC/DC power supply encapsulated 24V/1.3A
CHF 16.30 excl. VAT, plus shipping costs
Item no:
MPM-30-24ST
Stock level:2 Available immediately
Packaging ex works:
120 piece
5+ CHF 16.30 CHF 15.50 (4%save)
10+ CHF 15.50 CHF 14.80 (9%save)
20+ CHF 14.80 CHF 14.40 (11%save)
Description

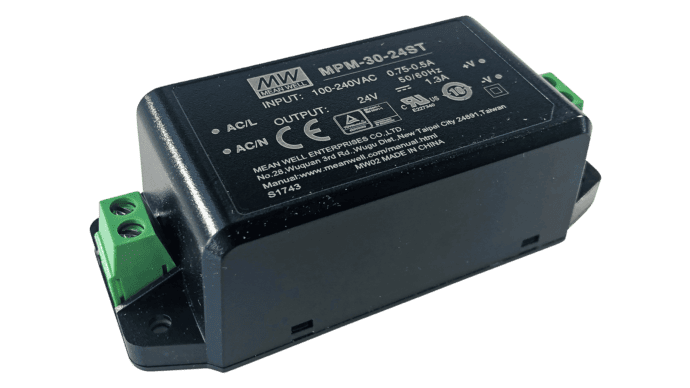

The MPM-30-24ST is an ultra-compact AC-DC power supply unit with medical approval for chassis mounting in an encapsulated housing.
Technical data
- Input voltage 80 to 264Vac
- No load power consumption 0.075W
- Very low leakage current (80µA)
- Protection class II Device without earth connection
- Wide temperature range from -40 to +85°C
- 2x MOPP (insulation: primary to secondary)
- Suitable for BF applications
- Operating altitude up to 5000 meters
- Short-circuit, overload, overvoltage and overtemperature protection
- Medical approval according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- The design complies with household approval EN60335-1
- Dimensions 91 x 39.5 x 28.5mm (L x W x H)
Additional information
| Enclosed power supplies | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| Data sheet MPM-30 | PDF(266.59 KB) |
|---|---|
| Test Report MPM-30-24 | PDF(335.15 KB) |
| Installation instructions PCB power supply units | PDF(830.11 KB) |
| Carbon Footprint declaration MPM-30ST | PDF(73.68 KB) |
Downloads
| 3D data MPM-30 | Zip file (532.66 KB) |
|---|
