2300W power supply unit or charger 55V/41.8A, IP67
CHF 710.30 excl. VAT, plus shipping costs
Description

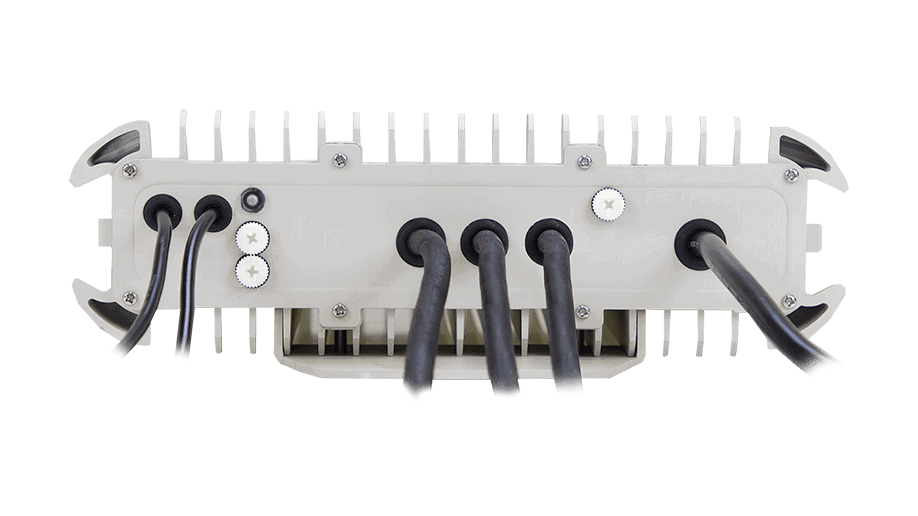

HEP-2300-55W is an industrial AC/DC power supply unit with an output of 2300 W. Thanks to its robust design, the power supply unit can work in very humid, dusty, oily and vibration-intensive environments. The entire series is installed in an aluminum housing and fully encapsulated with thermally conductive adhesive. In addition to the high efficiency of up to 95.5%, the entire series operates from -40°C to +70°C under convection without a fan. HEP-2300 has full protection functions and 10G anti-vibration capability; it complies with international safety regulations such as TUV EN62368-1, UL62368-1, and the design refers to EN61558-1 and EN60335-1. The HEP-2300 series is suitable as a high-performance power supply solution for various industrial applications.
Technical data
- 95% High efficiency
- Fanless, convection cooled
- Built into aluminum housing and encapsulated
- Meets 10G vibration test
- Output voltage and output current programmable
- IP67
- Version with cable
Additional information
| Enclosed power supplies | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||
Data sheets
| Data sheet HEP-2300-55W | PDF(792.23 KB) |
|---|---|
| Test Report HEP-2300-55 | PDF(834.08 KB) |
| Manual HEP-2300 | PDF(1.91 MB) |
| Carbon Footprint declaration HEP-2300-W | PDF(74.3 KB) |
Downloads
| 3D Step File HEP-2300 | Zip file (5.63 MB) |
|---|
