2300W power supply unit or charger 55V/41.8A, IP66
CHF 747.90 excl. VAT, plus shipping costs
Description

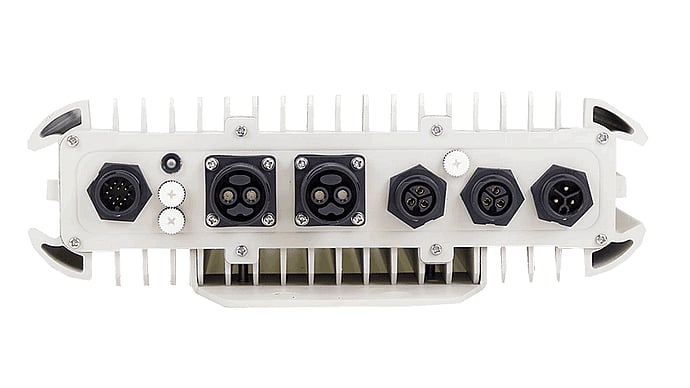

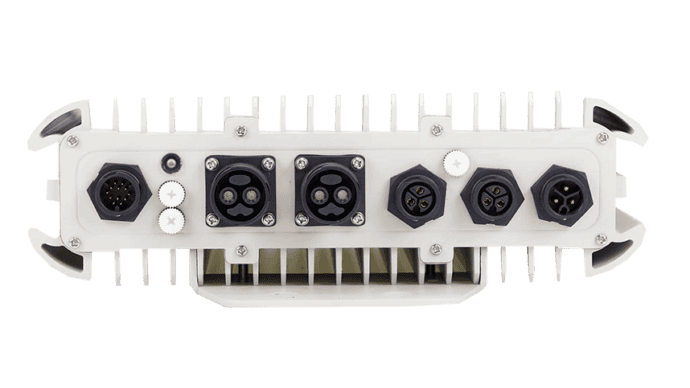

HEP-2300-55H is an industrial AC/DC power supply unit with an output of 2300 W. Thanks to its robust design, the power supply unit can work in very humid, dusty, oily and vibration-intensive environments. The entire series is built into an aluminum housing and fully encapsulated with thermally conductive adhesive. With the built-in charger function (installable via CANBus or with SBP-001 interface), the power supply can also be used as a charger for lead and lithium batteries. In addition to the high efficiency of up to 95.5%, the entire series operates from -40°C to +70°C under convection without a fan. HEP-2300 has full protection functions and 10G anti-vibration capability; it complies with international safety regulations such as TUV EN62368-1, UL62368-1, and the design refers to EN61558-1 and EN60335-1. The HEP-2300 series is suitable as a high-performance power supply solution for various industrial applications.
Technical data
- High voltage output
- 95% High efficiency
- Fanless, convection cooled
- Built into aluminum housing and encapsulated
- Meets 10G vibration test
- CANBus interface
- Output voltage and output current Programmable
- Can be used as a charger for lead or lithium batteries
- Remote ON/OFF
- IP66
- Version with Amphenol plug connection
Additional information
| Enclosed power supplies | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||
| Chargeurs | ||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
Data sheets
| Data sheet HEP-2300-55H | PDF(1.63 MB) |
|---|---|
| Test Report HEP-2300-55 | PDF(834.08 KB) |
| Manual HEP-2300 | PDF(1.91 MB) |
| Carbon Footprint declaration HEP-2300-H | PDF(74.31 KB) |
Downloads
| 3D Step File HEP-2300 | Zip file (5.63 MB) |
|---|
Accessories
-
RMOD600-80-13SEW
600W Off Highway Vehicle DC/DC converter In: 33.6...125Vdc / Out 13Vdc/46.2ACHF 361.95Available to order -
SBP-001
Smart Battery Charging ProgrammerCHF 50.002 Available immediately -
CMU2C-R-C##
Smart Controller for MEAN WELL CANbus power supplies, rack versionCHF 698.70Available to order -
CMU2C-C##
Smart Controller for MEAN WELL CANBus power supplies, standalone versionCHF 615.00Available to order
